Shift Fork
WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

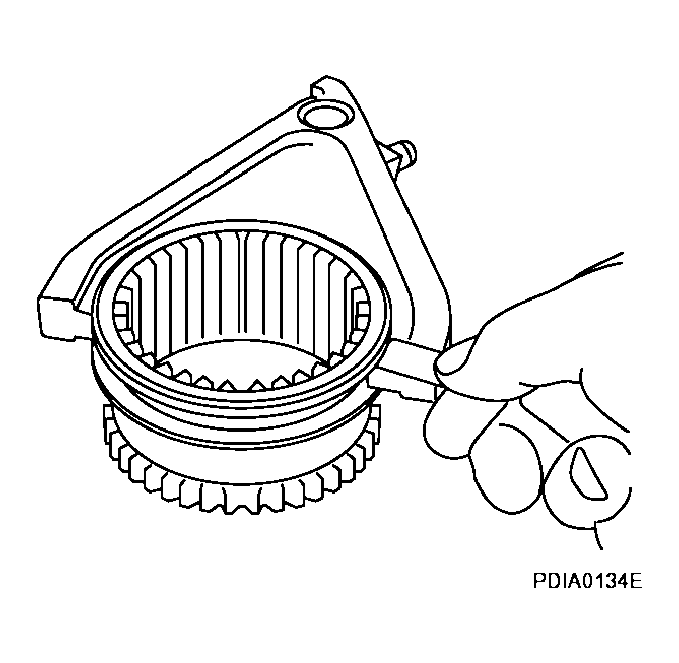

- Measure the clearance between the shift fork and sleeve. If it is out of specification, replace it with a new one.
Standard value
2-4: Less than 0.46 mm (0.018 in)
L-H: Less than 0.46 mm (0.018 in)
Courtesy of NISSAN MOTOR CO., U.S.A.
