Transfer Fluid: Replacement: Filling

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Remove the filler plug and gasket.
Fill the transfer with new fluid until the fluid level reaches the specified limit near the filler plug hole.
Fluid grade and capacity: Refer to "FLUIDS AND LUBRICANTS ".

CAUTION: Carefully fill fluid. (Fill up for approx. 3 minutes.)
Leave the vehicle for 3 minutes, and check fluid level again.
Install the filler plug with a new gasket to the transfer. Tighten to the specified torque. Refer to "COMPONENTS ".

CAUTION: Do not reuse gasket.

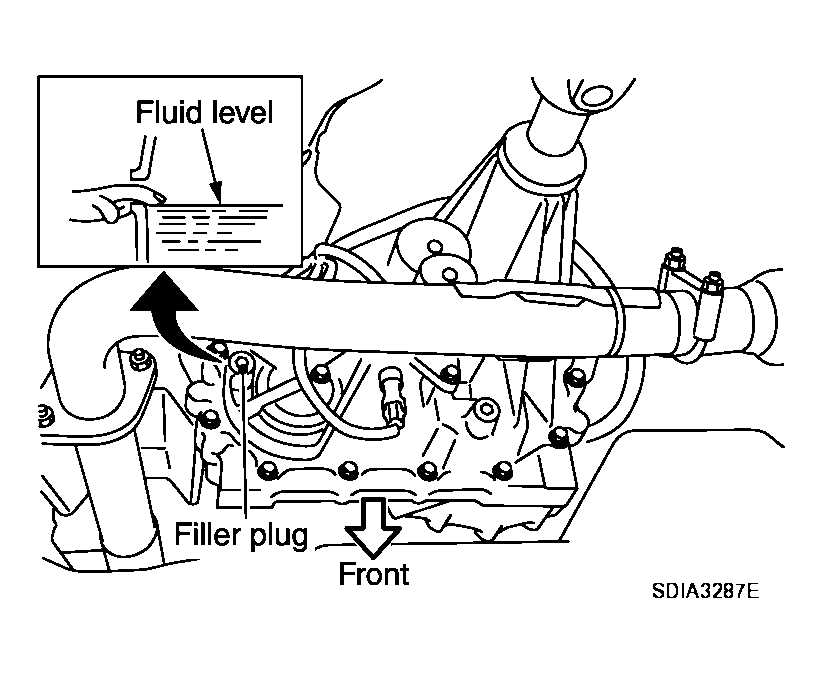

Fig 1: Checking Transfer Fluid Level

Courtesy of NISSAN MOTOR CO., U.S.A.
