Component Inspection

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF". (Stay for at least 5 seconds.)
Disconnect wait detection switch harness connector.
Remove wait detection switch. Refer to "LOCATION OF ELECTRICAL PARTS ".

Push and release wait detection switch and check continuity between wait detection switch terminals 10 and 11.

WAIT DETECTION SWITCH CONTINUITY

Terminal	Condition	Continuity
10 - 11	Push wait detection switch	Yes
10 - 11	Release wait detection switch	No

If NG, replace the wait detection switch. Refer to "LOCATION OF ELECTRICAL PARTS ".

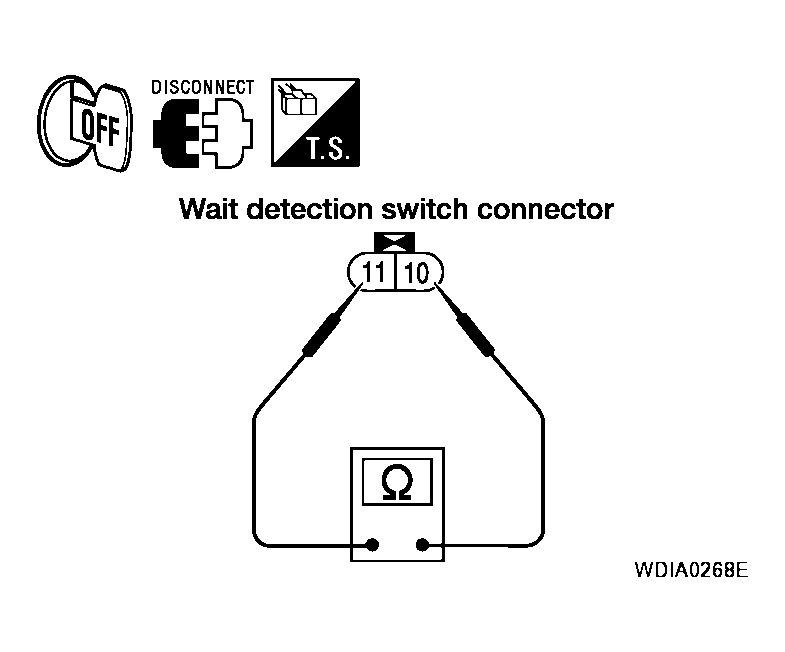

Fig 1: Identifying Continuity Between Wait Detection Switch Terminals 10 And 11

Courtesy of NISSAN MOTOR CO., U.S.A.
