Center Console: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

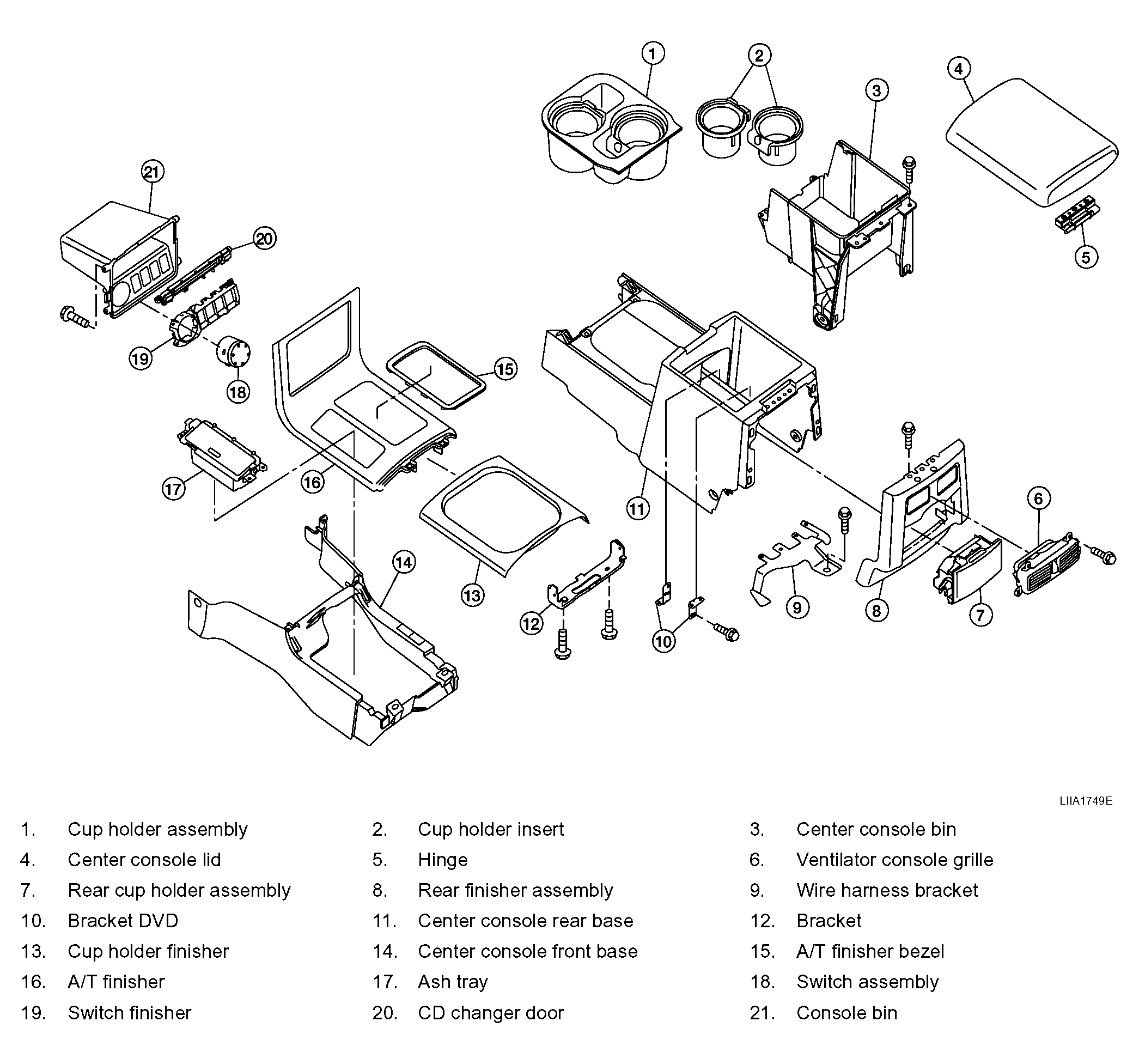

Fig 1: Exploded View Of Center Console
G04205794Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove center console. Refer to "CENTER CONSOLE ".
  2. Remove center console lid.
  3. Remove latch from center console lid.
  4. Remove hinge from center console lid.
  5. Remove rear finisher assembly.
  6. Remove rear cup holder assembly.
  7. Remove DVD player, if equipped.
  8. Disconnect center console harness connectors.
  9. Remove cup holder insert and cup holder assembly.
  10. Remove center console bin.
  11. Remove center console bracket.
  12. Remove wire harness bracket.
