Without CONSULT-II

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Check combination switch. Refer to "COMBINATION SWITCH READING FUNCTION ".

OK or NG

OK: Replace the BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".

NG: Check lighting switch. Refer to "COMBINATION SWITCH INSPECTION ".

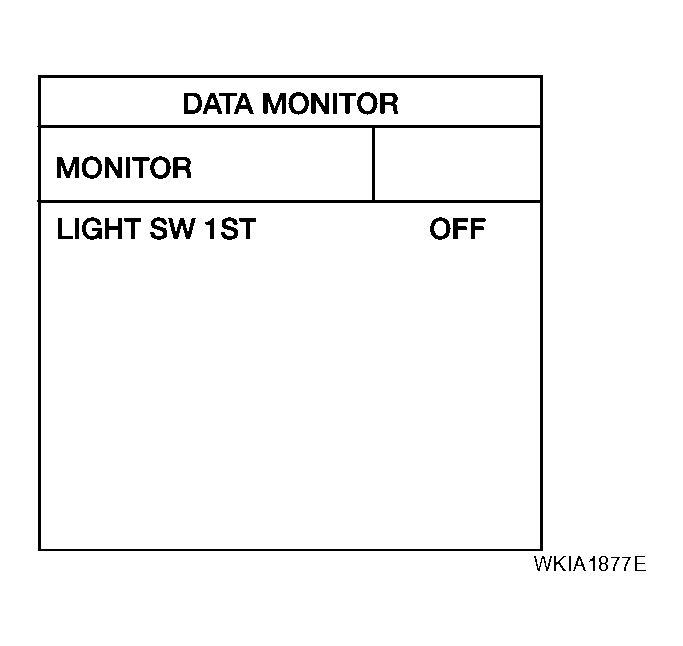

Fig 1: CONSULT-II Screen Display - DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.
