Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. Refer to "CENTER CONSOLE ".
  2. Remove yaw rate/side/decel G sensor attaching nuts as shown.
    • The location of the sensor is the same for all models.
    CAUTION:
    • Do not use power tools to remove or install yaw rate/side/decel G sensor.
    • Do not drop or strike the yaw rate/side/decel G sensor.
  3. Disconnect harness connector and remove the yaw rate/side/decel G sensor.

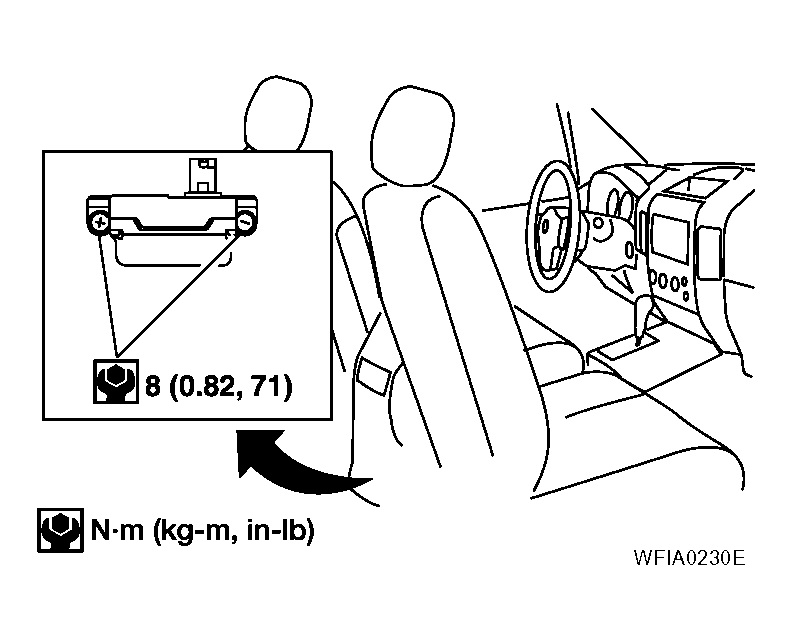

    Fig 1: Identifying Yaw Rate/Side/Decel G Sensor With Torque Specifications
    G04205243Courtesy of NISSAN MOTOR CO., U.S.A.
