Touch "ON" and "OFF" on the screen. Check that ABS motor relay operates as shown in table below.

ABS MOTOR DESCRIPTION

Operation	ON	OFF
MOTOR RELAY	ON	OFF
ACTUATOR RELAY	ON	ON

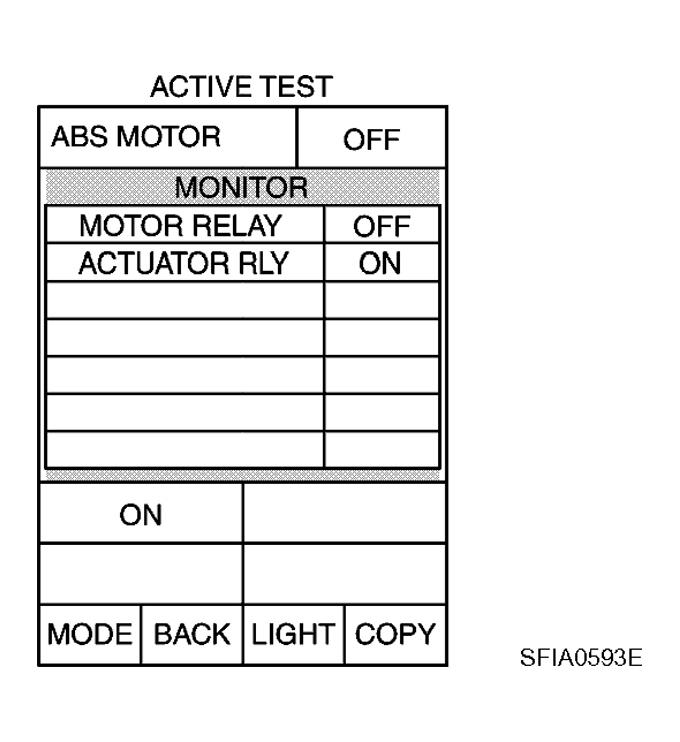

Fig 1: Consult-II ACTIVE TEST Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
