Combination Switch Inspection

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

SYSTEM CHECK

Referring to table below, check to which system the malfunctioning switch belongs.

SYSTEM DESCRIPTION

System 1	System 2	System 3	System 4	System 5
-	FR WASHER	FR WIPER LO	TURN LH	TURN RH
FR WIPER HI	-	FR WIPER INT	PASSING	HEAD LAMP1
INT VOLUME 1	RR WASHER	-	HEAD LAMP2	HI BEAM
RR WIPER INT	INT VOLUME 3	-	-	TAIL LAMP
INT VOLUME 2	RR WIPER ON	-	FR FOG	-

: GO TO 2.

SYSTEM CHECK
With CONSULT-II

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
1. Connect CONSULT-II, and select "COMB SW" on "SELECT TEST ITEM" screen.
2. Select "DATA MONITOR".
3. Select "START", and confirm that other switches in malfunctioning system operate normally.
Example: When auto light switch is malfunctioning, confirm that "FRONT WIPER LOW" and "FRONT WIPER INT" in System 3, to which the auto light switch belongs, turn ON-OFF normally.

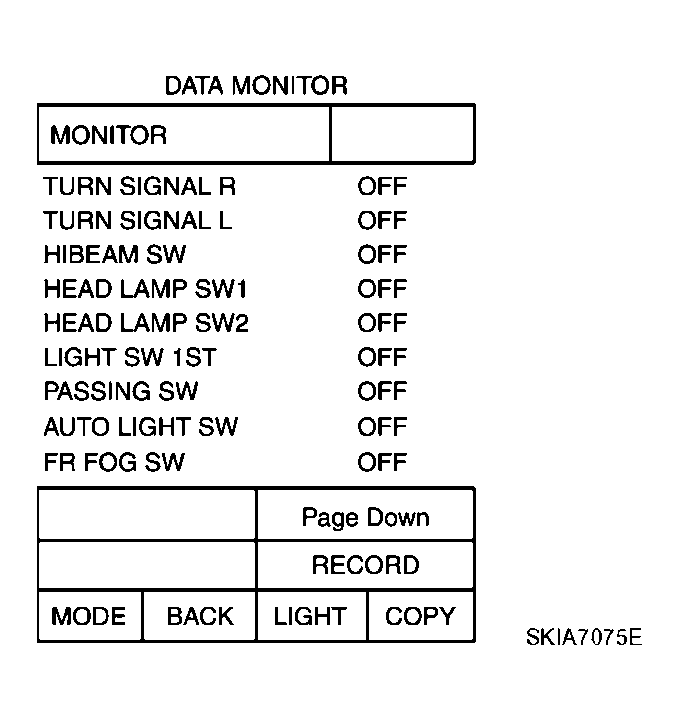

Fig 1: Consult-II - Scale Tool Display Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Operate combination switch, and confirm that other switches in malfunctioning system operate normally. Example: When auto light switch is malfunctioning, confirm that "FRONT WIPER LOW" and "FRONT WIPER INT" in System 3, to which the auto light switch belongs, operate normally.

Check results

Other switches in malfunctioning system operate normally.: Replace lighting switch or wiper switch. Other switches in malfunctioning system do not operate normally.: GO TO 3.

HARNESS INSPECTION

Turn ignition switch OFF.
Disconnect BCM and combination switch connectors.

Check for continuity between BCM harness connector of the suspect system and the corresponding combination switch connector terminals.

SUSPECT SYSTEM DESCRIPTION

Suspect system	A			B		Continuity
Suspect system	BCM connector	Terminal		Combination switch connector	Terminal	Continuity
1	M18	Input 1	6	M28	10	Yes
1		Output 1	36		13
2		Input 2	5		15
2		Output 2	35		12
3		Input 3	4		5
3		Output 3	34		16
4		Input 4	3		6
4		Output 4	33		11
5		Input 5	2		7
5		Output 5	32		14

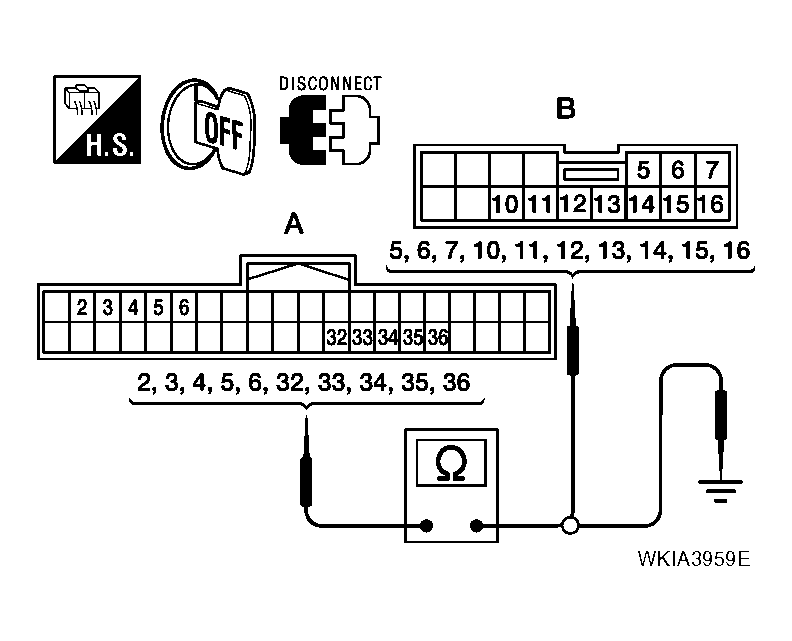

Fig 2: checking BCM And Combination Switch Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

Check for continuity between each terminal of BCM harness connector in suspect malfunctioning system and ground.

SUSPECT SYSTEM DESCRIPTION

Suspect system	A				Continuity
Suspect system	BCM connector	Terminal			Continuity
1	M18	Input 1	6	Ground	No
1		Output 1	36
2		Input 2	5
2		Output 2	35
3		Input 3	4
3		Output 3	34
4		Input 4	3
4		Output 4	33
5		Input 5	2
5		Output 5	32

OK or NG

OK: GO TO 4.

NG: Check harness between BCM and combination switch for open or short circuit.

BCM OUTPUT TERMINAL INSPECTION

Turn lighting switch and wiper switch to OFF.
Set wiper dial to position 4.
Connect BCM and combination switch connectors.
Turn ignition switch ON.
Check combination switch input terminal voltage waveform of suspect malfunctioning system.

SUSPECT SYSTEM DESCRIPTION

Suspect system	A
	(+)
	Combination switch connector	Terminal
1	M28	Input 1	13
2		Input 2	12
3		Input 3	16
4		Input 4	11
5		Input 5	14

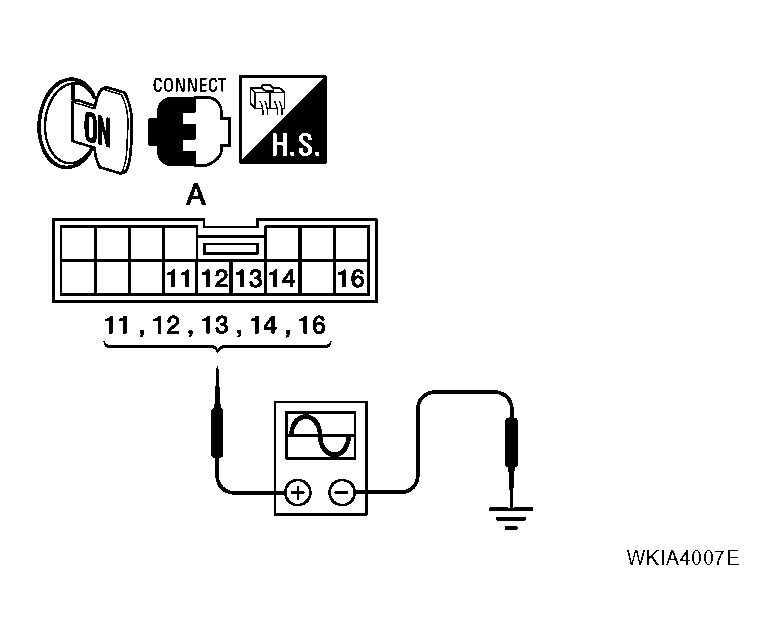

Fig 3: Checking Combination Switch Input Terminal Voltage Waveform

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Open circuit in combination switch, GO TO 5.

NG: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".

COMBINATION SWITCH INSPECTION

Referring to table below, perform combination switch inspection.

COMBINATION SWITCH INSPECTION CHART

Procedure
1	2		3	4		5	6		7
Replace lighting switch.	Confirm check results.	OK	INSPECTION END	Confirm check results.	OK	INSPECTION END	Confirm check results.	OK	INSPECTION END
Replace lighting switch.	Confirm check results.	NG	Replace wiper switch.	Confirm check results.	NG	Replace switch base.	Confirm check results.	NG	Confirm symptom again.

: Inspection End.
