Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "CLUSTER LID C ".
  2. Disconnect the hazard switch connector.
  3. Remove the screws and remove the hazard switch.

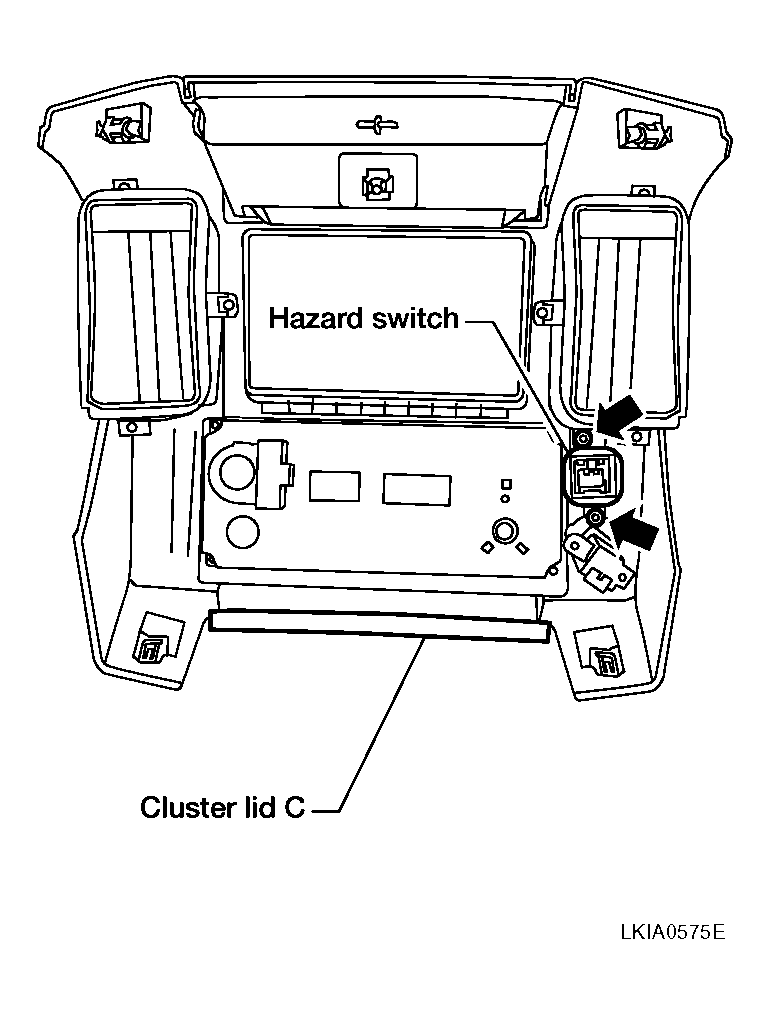

Fig 1: Removing Cluster Lid C
G04206176Courtesy of NISSAN MOTOR CO., U.S.A.
