Models With Power Door Locks

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK EACH SWITCH

    Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make sure switches listed in display item list turn ON-OFF linked with switch operation. Refer to "Display Item List " for switches and their functions.

    OK or NG

    OK: GO TO 2.

    NG: Inspect malfunctioning switch system.

    Fig 1: CONSULT II Display - Data Monitor
    G04136301Courtesy of NISSAN MOTOR CO., U.S.A.
  2. ACTIVE TEST
    1. Select "BCM" on CONSULT-II. Select "INT LAMP".
    2. Select "LUGGAGE LAMP TEST" active test to make sure lamp operates.

    OK or NG

    OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".

    NG: GO TO 3.

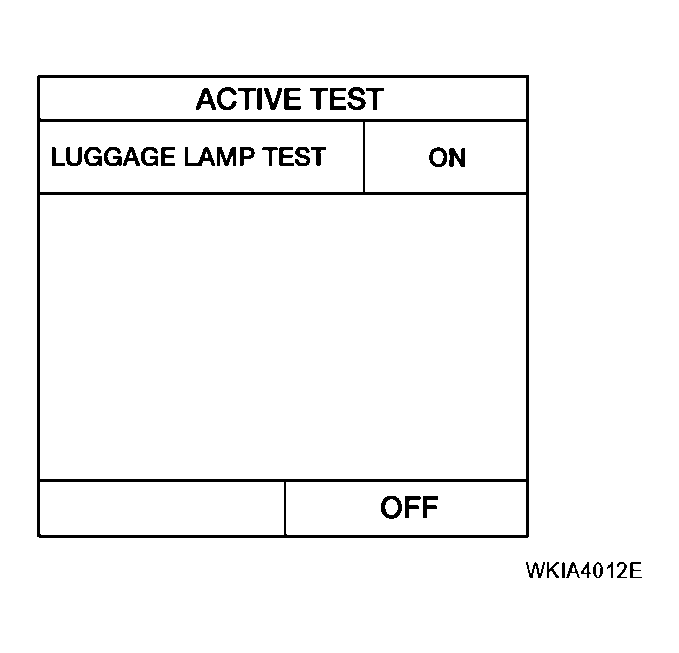

    Fig 2: Consult-II - Scale Tool Display Active Test
    G04206254Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK CARGO LAMP POWER SUPPLY INPUT
    1. Check voltage between cargo lamp harness connector R11 terminal 2 and ground.
    TERMINAL VOLTAGE REFERENCE CHART

    Terminals Voltage (Approx.)
    (+) (-)
    Cargo lamp connector Terminal No.
    R11 2 Ground Battery voltage

    OK or NG

    OK: GO TO 4.

    NG: GO TO 6.

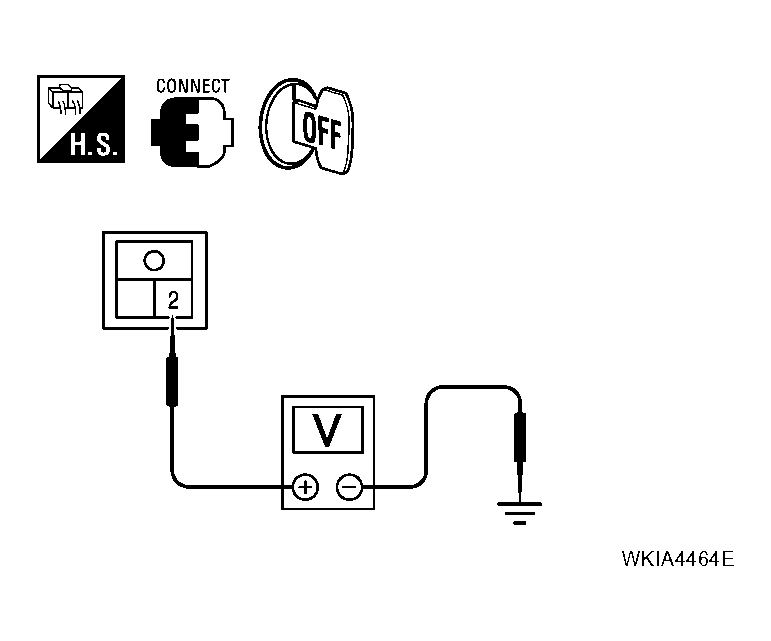

    Fig 3: Checking Voltage Between Cargo Lamp Harness Connector R11 Terminal 2 And Ground
    G04206255Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK CARGO LAMP
    1. Turn ignition switch OFF.
      2. NOTE: Make sure cargo lamp operates with cargo lamp switch in ON position.
    2. Disconnect cargo lamp connector.
    3. Check continuity between cargo lamp terminals 1 and 2.
    TERMINAL CONTINUITY REFERENCE CHART

    A Continuity
    Cargo lamp terminal
    1 2 Yes

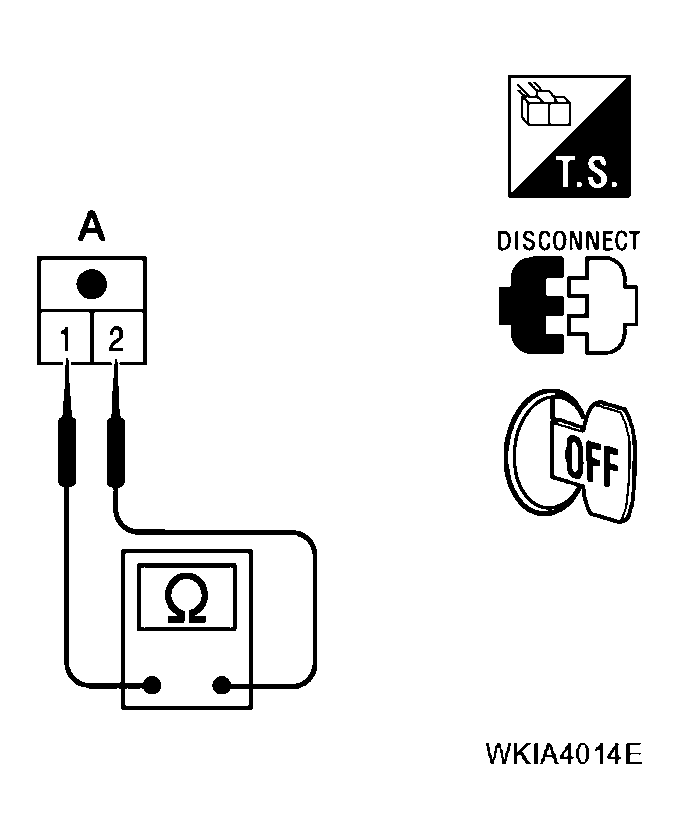

    Fig 4: Checking Continuity Between Cargo Lamp Terminals 1 And 2
    G04206256Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 5.

    NG: Replace cargo lamp.

  5. CHECK CARGO LAMP CONTROL CIRCUIT
    1. Disconnect BCM connector.
    2. Check continuity between BCM harness connector M19 terminal 49 and cargo lamp harness connector R11 terminal 1.
    TERMINAL CONTINUITY REFERENCE CHART

    A B Continuity
    BCM connector Terminal Cargo lamp connector Terminal
    M19 49 R11 1 Yes

    OK or NG

    OK: Replace BCM if cargo lamp does not work after setting the connector again. Refer to "REMOVAL AND INSTALLATION OF BCM ".

    NG: Repair harness or connector.

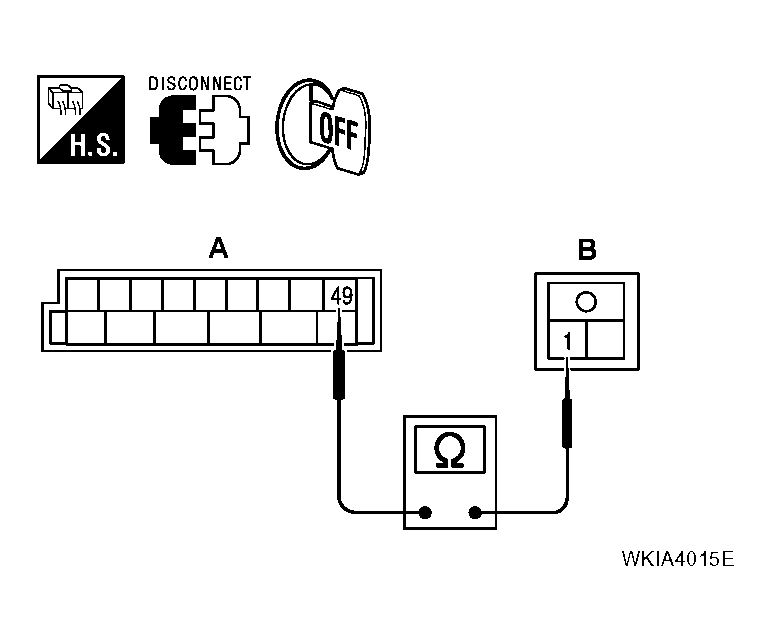

    Fig 5: Checking Continuity Between BCM Harness Connector M19 Terminal 49 And Cargo Lamp Harness Connector R11 Terminal 1
    G04206257Courtesy of NISSAN MOTOR CO., U.S.A.
  6. CHECK CARGO LAMP POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect BCM connector and cargo lamp connector.
    3. Check continuity between BCM harness connector M20 terminal 56 and cargo lamp harness connector R11 terminal 2.
    TERMINAL CONTINUITY REFERENCE CHART

    A B Continuity
    BCM connector Terminal Cargo lamp connector Terminal
    M20 56 R11 2 Yes

    OK or NG

    OK: Replace BCM if cargo lamp does not work after setting the connector again. Refer to "REMOVAL AND INSTALLATION OF BCM ".

    NG: Repair harness or connector.

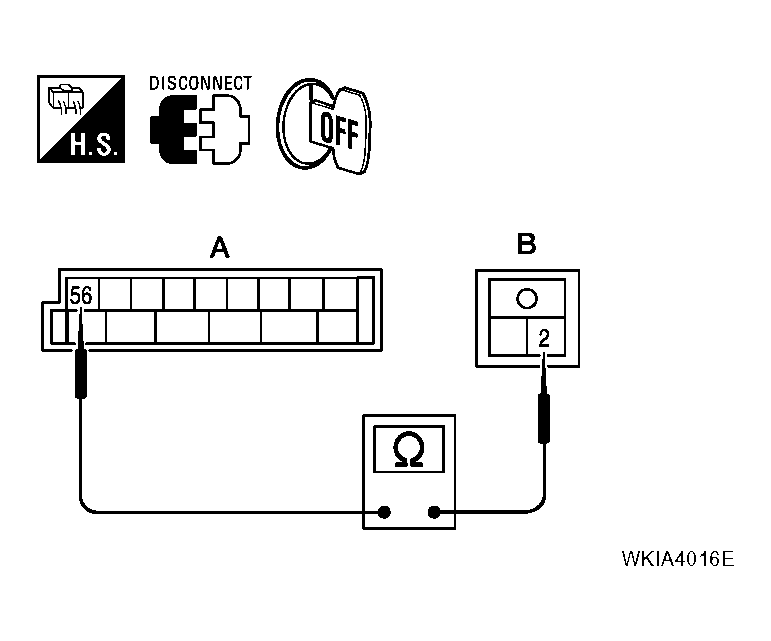

    Fig 6: Checking Continuity Between BCM Harness Connector M20 Terminal 56 And Cargo Lamp Harness Connector R11 Terminal 2
    G04206258Courtesy of NISSAN MOTOR CO., U.S.A.
