Front Axle Hub Bolt: Replacement

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.
• A bolt without a torque specification is shown in the standard bolt chart (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE FRONT WHEEL
2. REMOVE FRONT DISC BRAKE CYLINDER ASSEMBLY
   1. Remove the 2 bolts and disconnect the disc brake caliper assembly LH from the steering knuckle.
   NOTE:

   • Use a string or equivalent to keep the brake caliper from hanging down by the flexible hose.
   • The friction surface of the pad and disc must be free from oil, grease and paint.

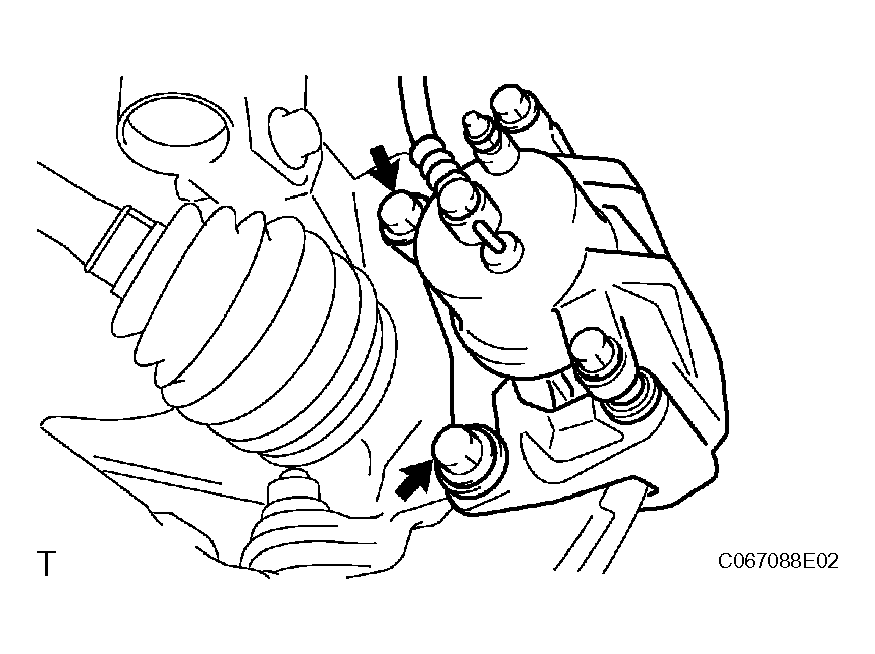

   Fig 1: Front Disc Brake Cylinder Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE FRONT DISC
4. REMOVE FRONT AXLE HUB BOLT
   1. Temporarily install the 2 hub nuts.
   2. Using SST and a hammer handle or an equivalent to hold the axle hub LH, remove the LH hub bolt.

      SST 09628-10011

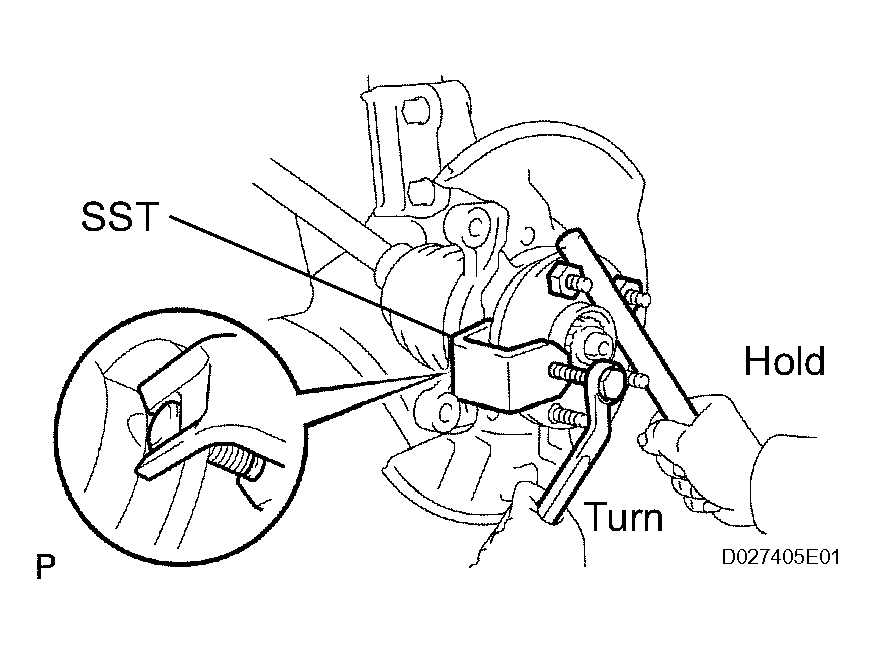

      Fig 2: Removing LH Hub Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL FRONT AXLE HUB BOLT
   1. Install a washer and nut to a new LH hub bolt as shown in the illustration.
   2. Using a hammer handle or an equivalent to hold the axle hub LH, install the LH hub bolt by tightening the nut.

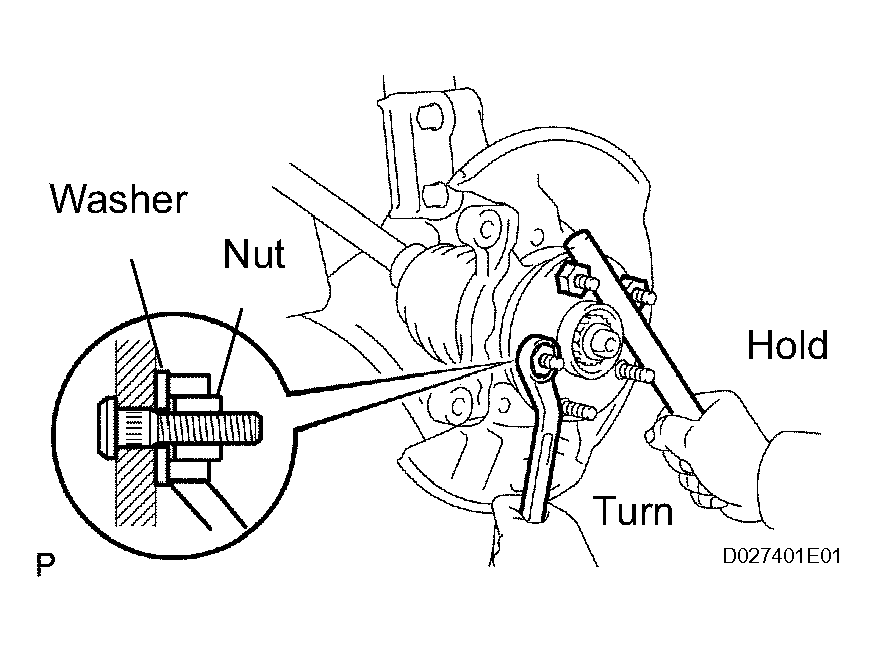

Fig 3: Installing Front Axle Hub Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL FRONT DISC
7. INSTALL FRONT DISC BRAKE CYLINDER ASSEMBLY
   1. Install the disc brake caliper with the 2 bolts to the steering knuckle LH.

      Torque: 107 N.m (1,090 kgf.cm, 79 in.lbf)

8. INSTALL FRONT WHEEL

   Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
