On-Vehicle Inspection

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FRONT AXLE HUB BEARING
1. Remove the front wheel.
2. Disconnect the front disc brake caliper (See REMOVAL ).
3. Remove the front disc.
4. Inspect the axle hub backlash.
  1. Using a dial indicator, check the backlash near the center of the axle hub.
  Maximum backlash:

  0.05 mm (0.0020 in.)

  If the backlash is greater than the maximum, replace the bearing.

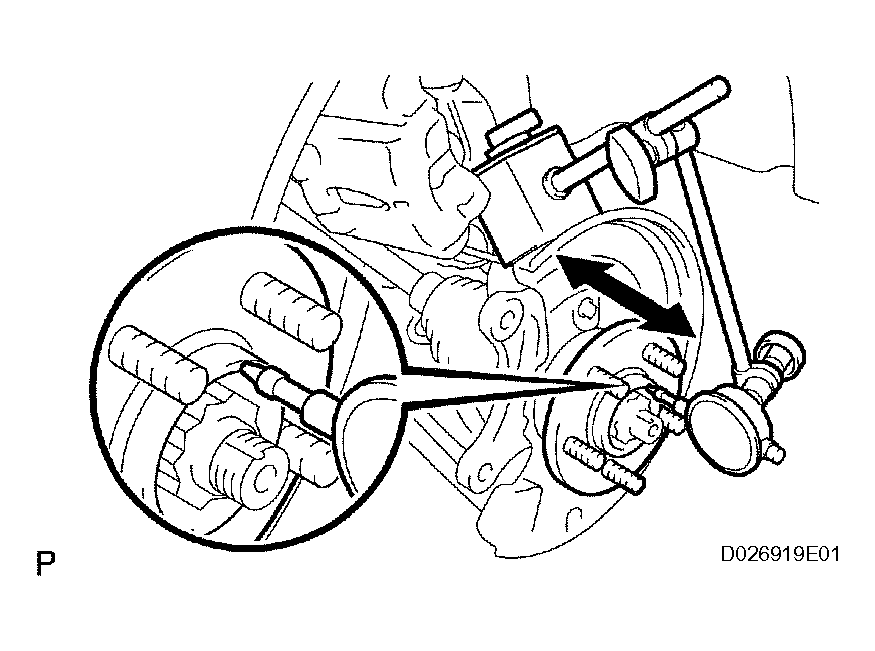

  Fig 1: Checking Front Axle Hub Bearing For Backlash
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Inspect the axle hub deviation.
  1. Using a dial indicator, check the deviation on the surface of the axle hub.
    Maximum deviation:

    0.05 mm (0.0020 in.)

    If the deviation is greater than the maximum, replace the bearing.

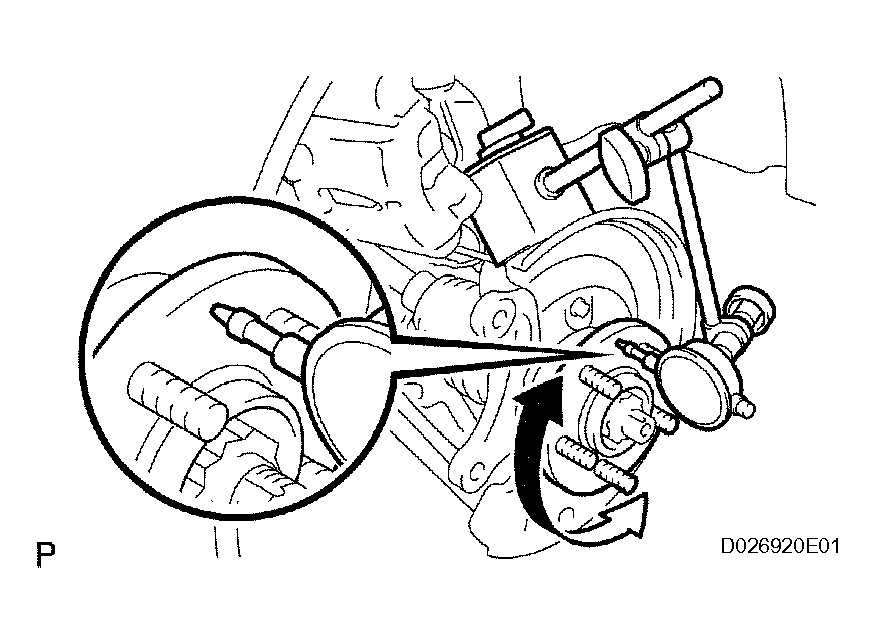

  Fig 2: Inspecting Axle Hub Deviation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
