Front Axle Hub: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

  1. REMOVE FRONT WHEEL
  2. DISCONNECT FRONT STABILIZER LINK ASSEMBLY
    1. Remove the nut, and disconnect the stabilizer link assembly.

    HINT:

    If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud in place.

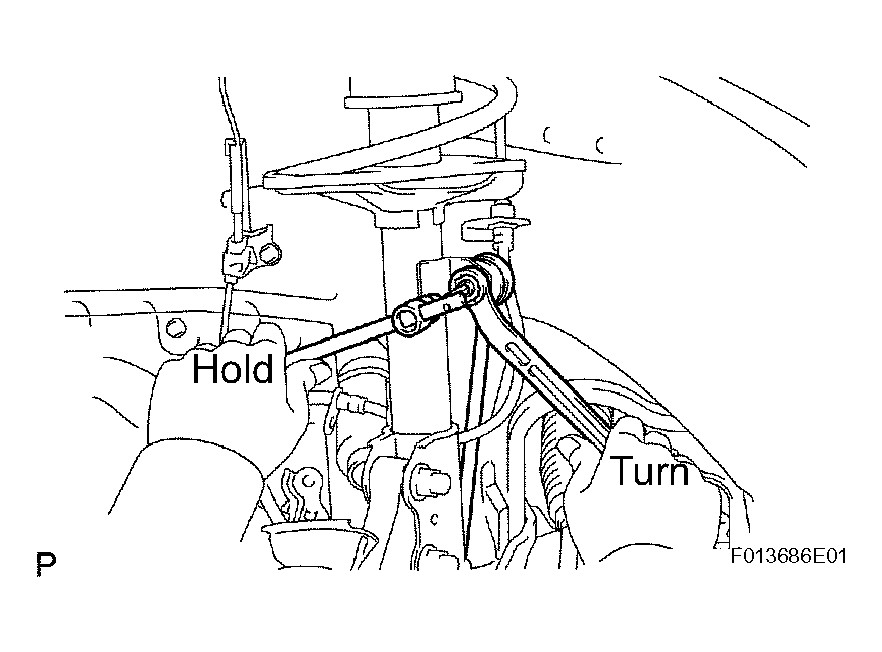

    Fig 1: Removing/Installing Front Stabilizer Link Assembly
    G04222889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT AXLE HUB NUT
    1. Using SST and a hammer, unstake the staked part of the nut.

      SST 09930-00010

      NOTE: Loosen the staked part of the nut completely, otherwise the screw of the drive shaft may be damaged.
    2. While applying the brakes, remove the lock axle hub nut.

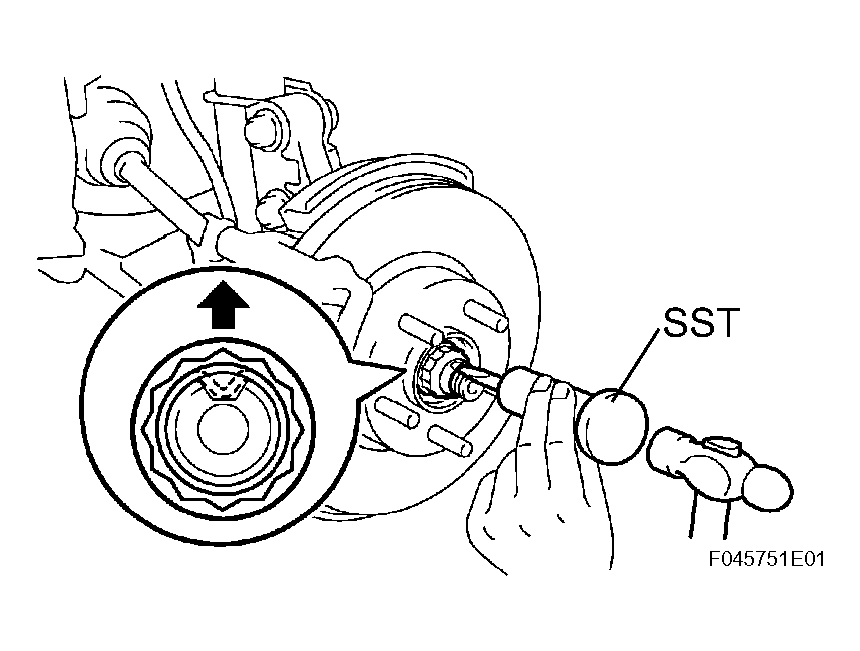

    Fig 2: Unstaking Front Axle Hub Nut
    G04222890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT FRONT SPEED SENSOR
    1. Remove the bolt, and disconnect the speed sensor wire and flexible hose from the shock absorber.

      HINT:

      Be careful not to damage the speed sensor.

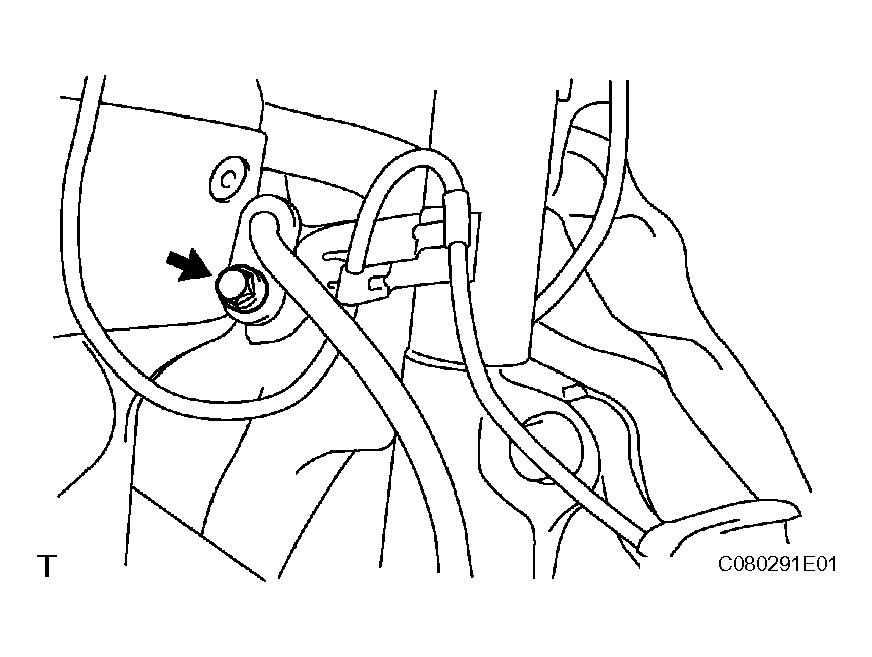

      Fig 3: Speed Sensor Wire Bolt
      G04222891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, and separate the speed sensor front from the steering knuckle.
    NOTE:
    • Be careful not to damage the speed sensor.
    • Prevent foreign matter from attaching to the speed sensor.

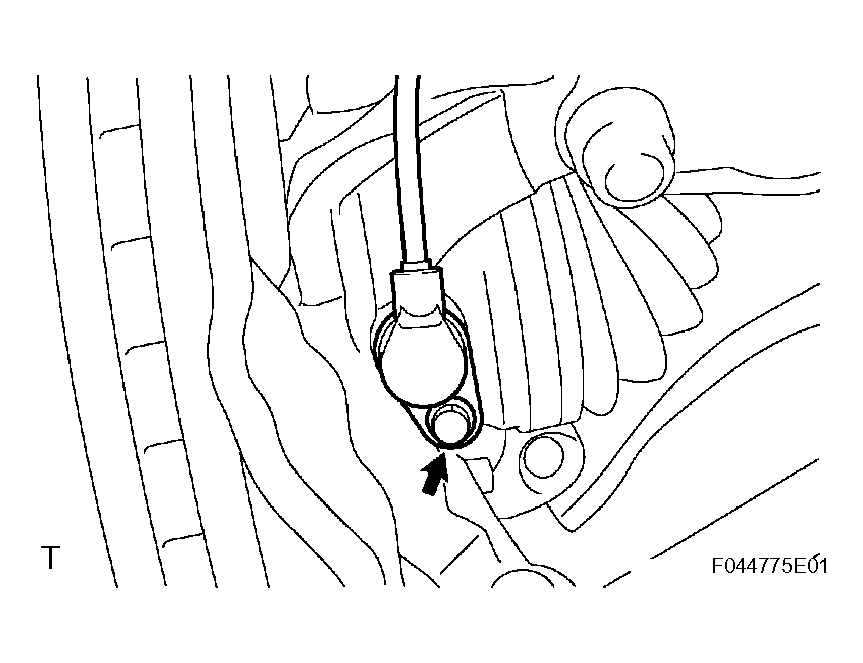

    Fig 4: Speed Sensor & Bolt
    G04222892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT FRONT DISC BRAKE CYLINDER ASSEMBLY
    1. Remove the 2 bolts and disconnect the disc brake caliper from the steering knuckle.
    NOTE:
    • Use a string or equivalent to keep the brake caliper from hanging down by the flexible hose.
    • The friction surface of the pad and disc must be free from oil, grease and paint.

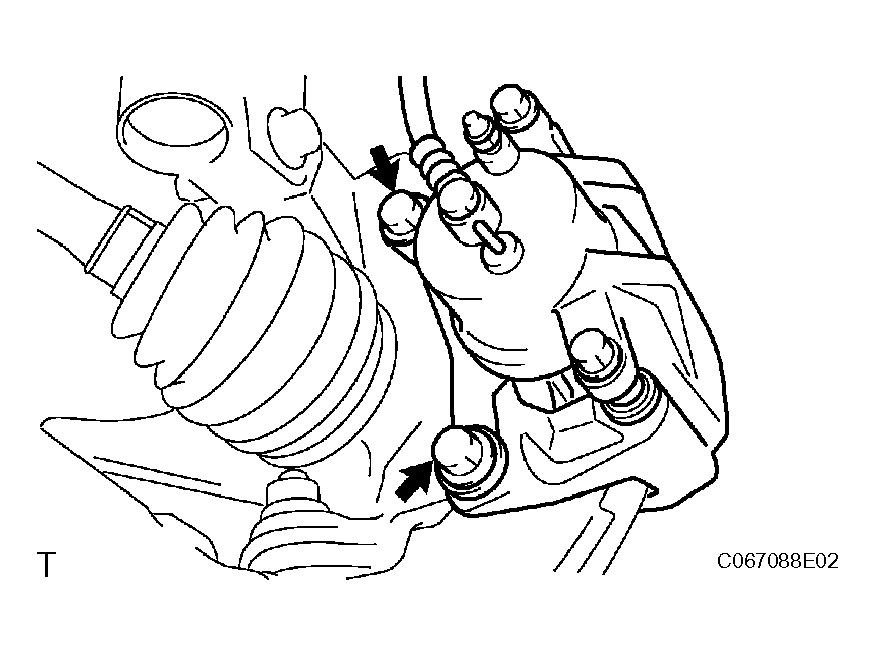

    Fig 5: Front Disc Brake Cylinder Assembly & Bolts
    G04222893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT DISC
    NOTE: There should be no oil or grease on the friction surface of the pad and disc.
  7. DISCONNECT TIE ROD END SUB-ASSEMBLY
    1. Remove the cotter pin and nut.
    2. Using SST, disconnect the tie rod end from the steering knuckle.

      SST 09628-00011

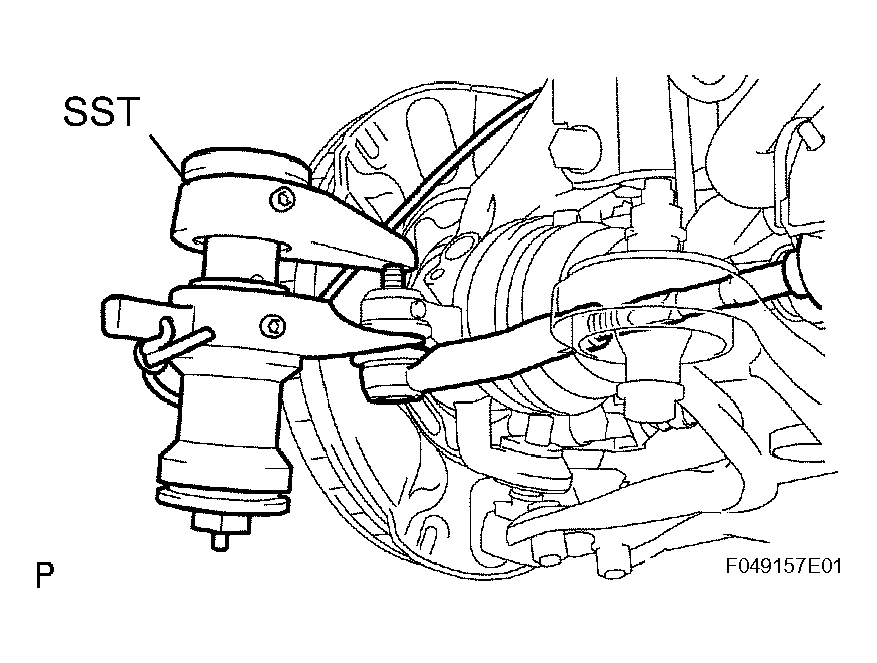

      Fig 6: Disconnecting Tie Rod End From Steering Knuckle
      G04222894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT FRONT NO. 1 SUSPENSION LOWER ARM SUB-ASSEMBLY
    1. Remove the bolt and 2 nuts, and disconnect the suspension lower arm from the lower ball joint.

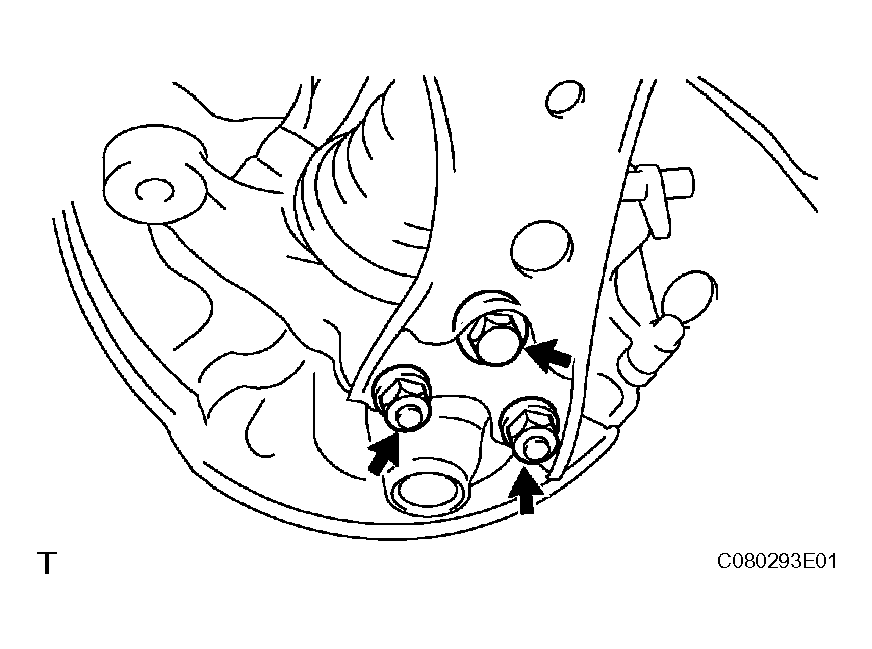

    Fig 7: Front No. 1 Suspension Lower Arm Sub-Assembly Bolts
    G04222895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT AXLE ASSEMBLY
    1. Using a plastic-faced hammer, disconnect the drive shaft from the axle hub.
      NOTE: Be careful not to damage the boot and speed sensor rotor.

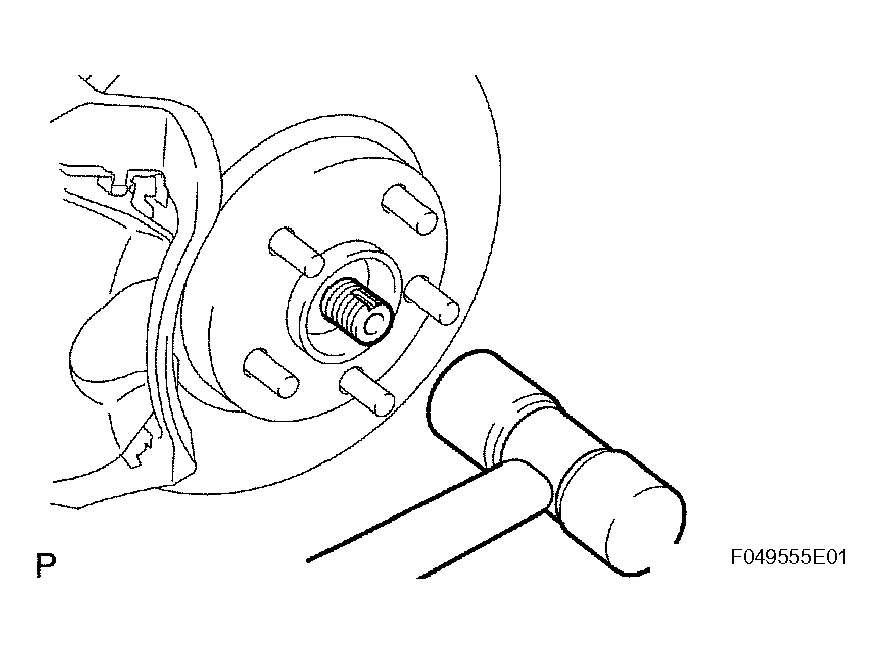

      Fig 8: Disconnecting Drive Shaft From Axle Hub
      G04222896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, 2 nuts and steering knuckle from the shock absorber.

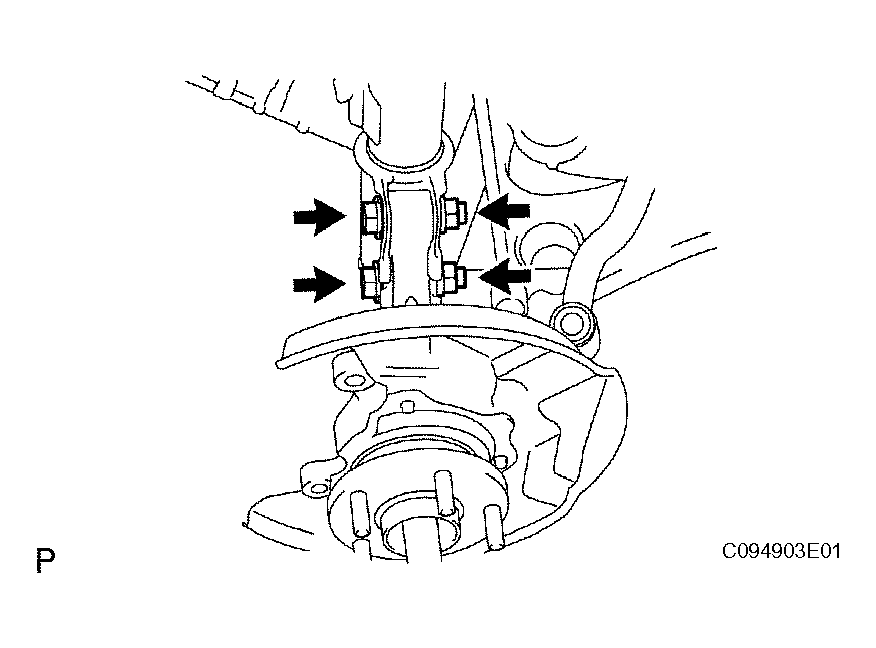

    Fig 9: Steering Knuckle, Shock Absorber, Nuts & Bolts
    G04222897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT LOWER BALL JOINT ASSEMBLY
    1. Remove the cotter pin and nut.
    2. Using SST, remove the ball joint.

      SST 09628-62011

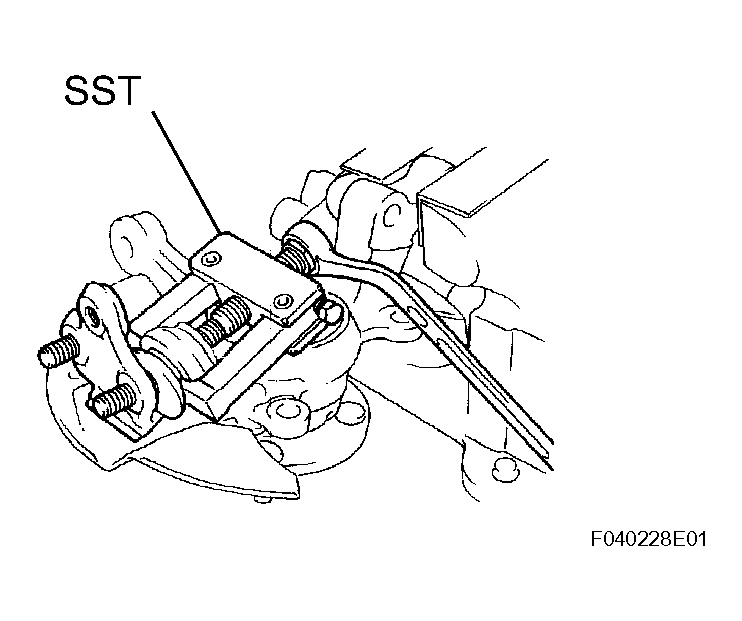

      Fig 10: Removing Front Lower Ball Joint Assembly
      G04222898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT AXLE HUB HOLE SNAP RING
    1. Using snap ring pliers, remove the hole snap ring.

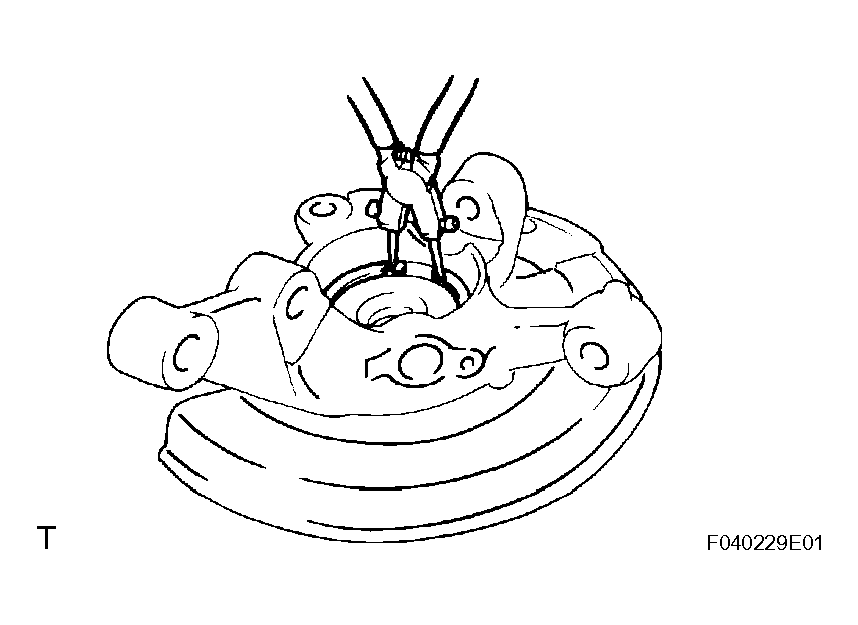

    Fig 11: Removing/Installing Front Axle Hub Hole Snap Ring
    G04222899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT AXLE HUB SUB-ASSEMBLY
    1. Hold the steering knuckle lightly in a soft vise.
      NOTE: Do not overtighten the vise.
    2. Using SST, remove the axle hub.

      SST 09520-00031

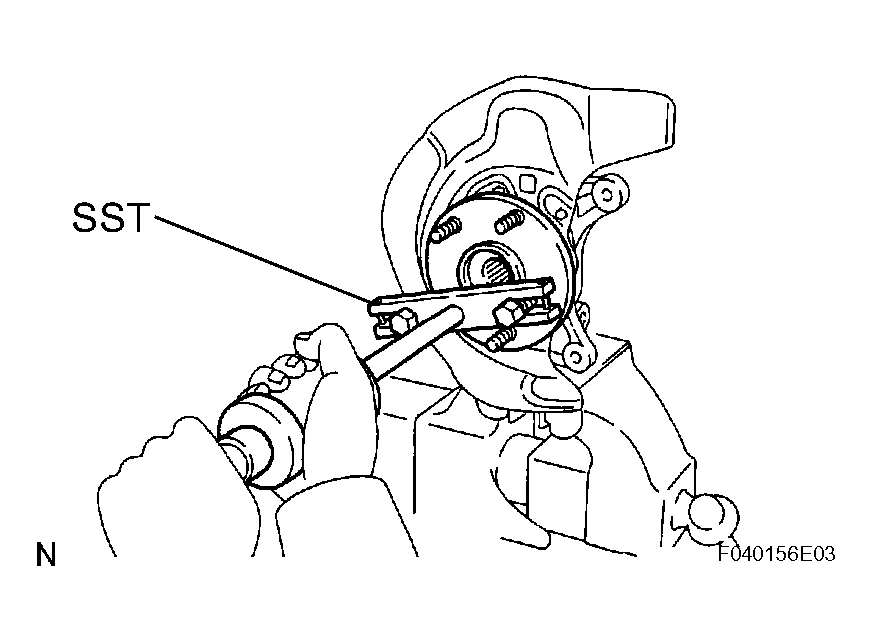

      Fig 12: Removing Front Axle Hub Assembly
      G04222900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the bearing inner race (outside) from the axle hub.

      SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04061, 09957-04010, 09958-04010), 09950-60010 (09951-00370)

  13. REMOVE FRONT DISC BRAKE DUST COVER
    1. Remove the 3 bolts and front disc brake dust cover from the steering knuckle.
      Fig 13: Removing Bolts And Front Disc Brake Dust Cover From Steering Knuckle
      G04222901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT AXLE HUB BEARING
    1. Place the bearing inner race (outside) on the axle hub bearing.
    2. Using SST and a press, press out the axle hub bearing from the steering knuckle.

      SST 09223-15020, 09950-60020 (09951-00720), 09950-70010 (09951-07100, 09387-02010)

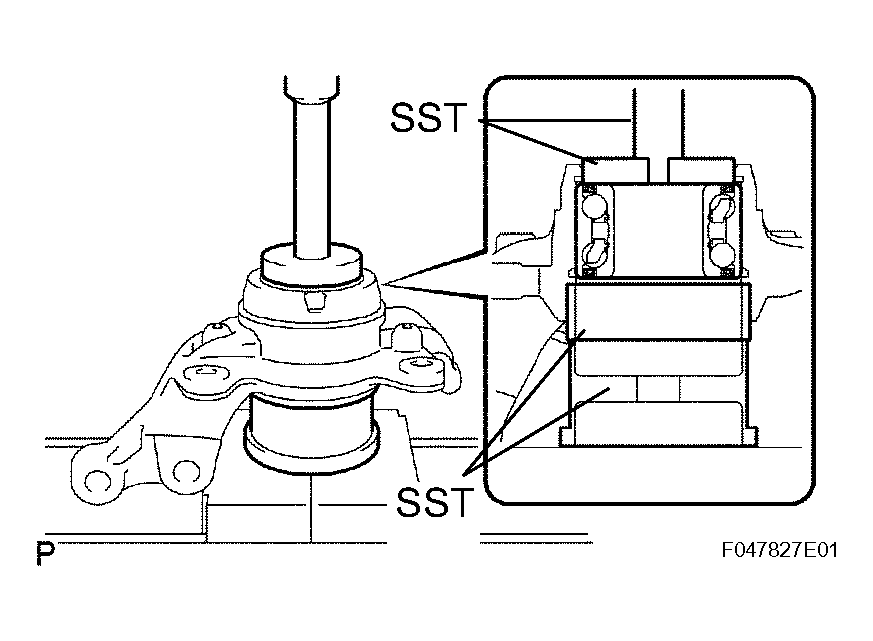

      Fig 14: Pressing Out Axle Hub Bearing From Steering Knuckle
      G04222902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
