Front Speed Sensor: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. INSTALL FRONT SPEED SENSOR LH
   1. Install the speed sensor with the bolt.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

      NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.

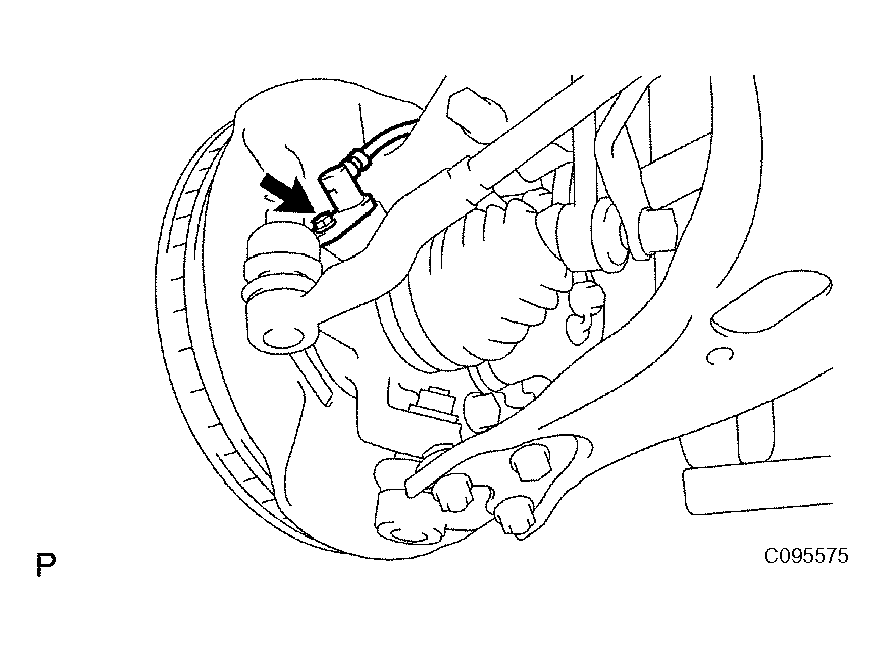

      Fig 1: Installing Speed Sensor With Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the speed sensor to the body with the 2 bolts.

      Torque

      • 9.0 N*m (92 kgf*cm, 80 in.*lbf) for bolt A
      • 29 N*m (296 kgf*cm, 21 ft.*lbf) for bolt B

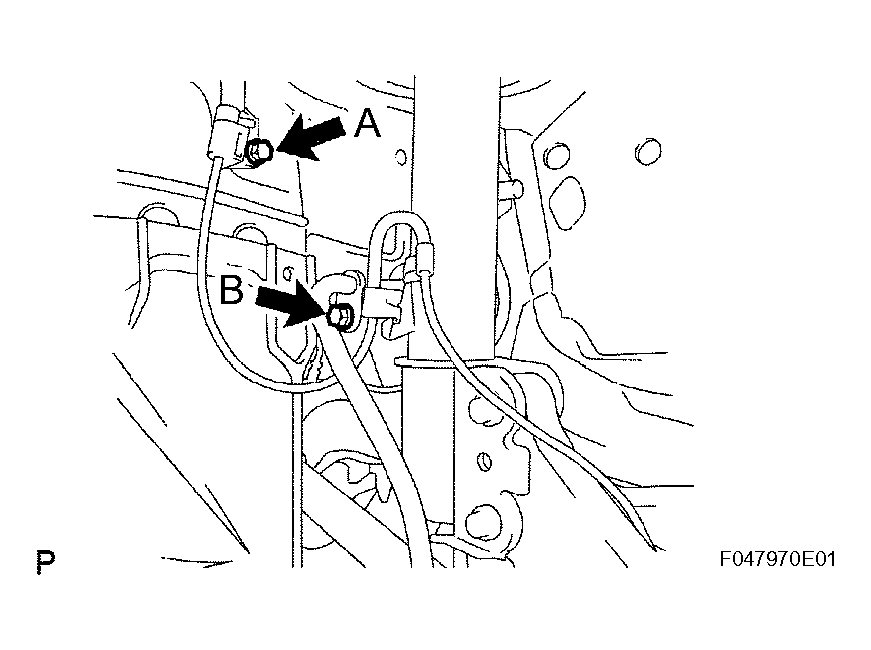

      Fig 2: Installing Speed Sensor To Body With Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Connect the connector and attach the clamp.
2. INSTALL FRONT FENDER LINER LH (See  INSTALLATION  )
3. INSTALL FRONT WHEEL

   Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
   1. Perform initialization (see INITIALIZATION ).
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
6. CHECK ABS SPEED SENSOR SIGNAL
   1. Check the ABS speed sensor signal (See DIAGNOSIS SYSTEM  ).

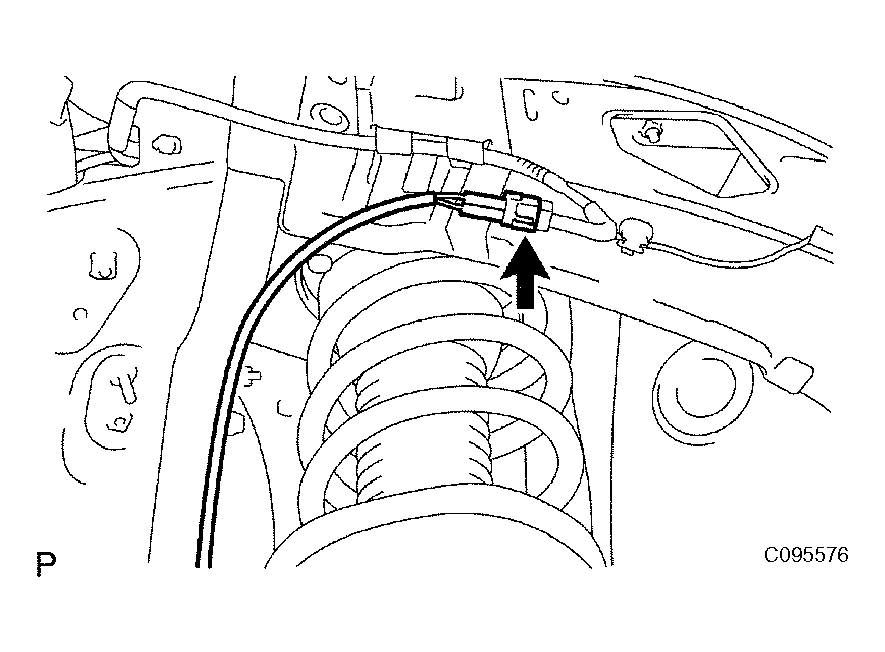

   Fig 3: Connecting Connector And Attach Clamp
