Combination Meter: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL COMBINATION METER GLASS
    1. Attach the 8 claws to install the combination meter glass.

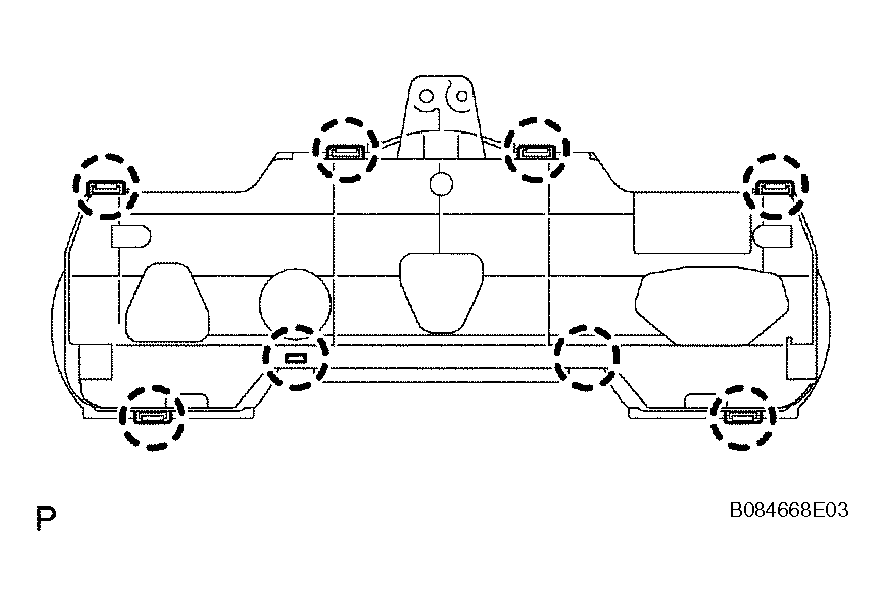

    Fig 1: Installing Combination Meter Glass
    G04224373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connector and install the combination meter.
    2. Attach the 2 claws to install the screw.

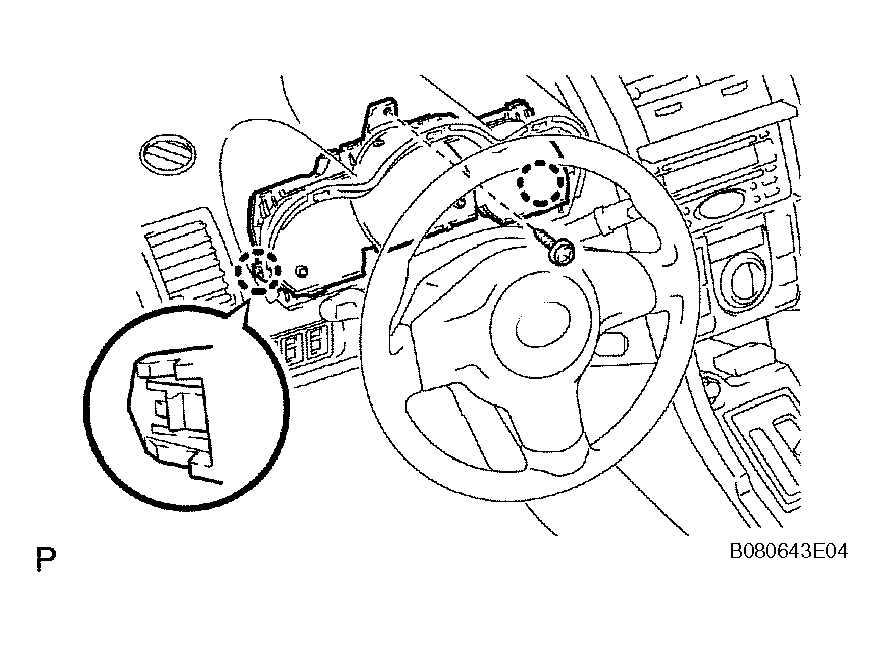

    Fig 2: Installing Combination Meter Assembly
    G04224374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL METER HOOD SUB-ASSEMBLY
    1. Attach the 9 claws to install the meter hood.
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  5. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).

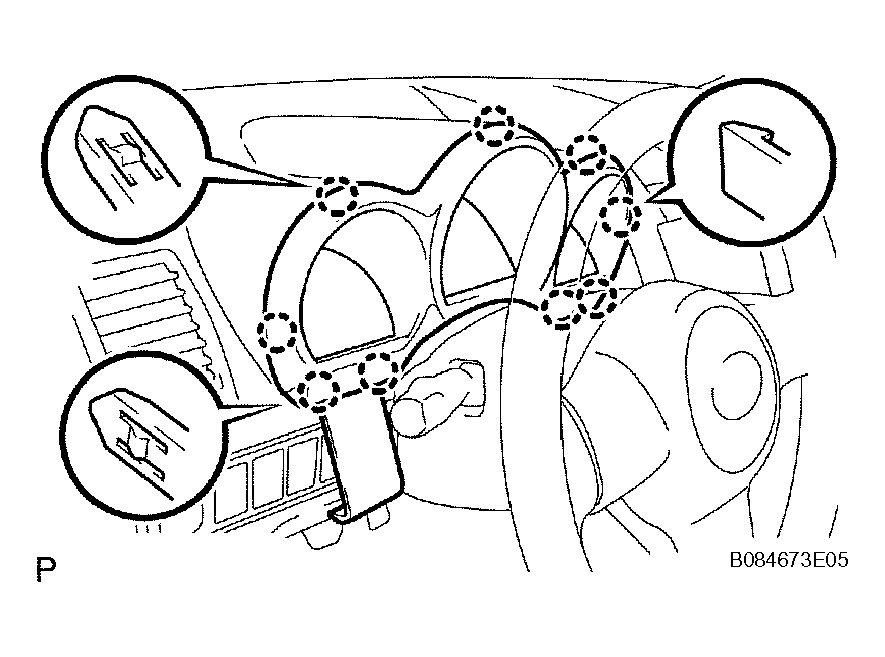

    Fig 3: Installing Meter Hood Sub-Assembly
    G04224375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  6. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
