Combination Meter: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE METER HOOD SUB-ASSEMBLY
1. Tilt the steering column assembly down as far as possible.
2. Using a moulding remover, detach the 9 claws.
  HINT:

  Tape the moulding remover tip before use.
3. Remove the meter hood.

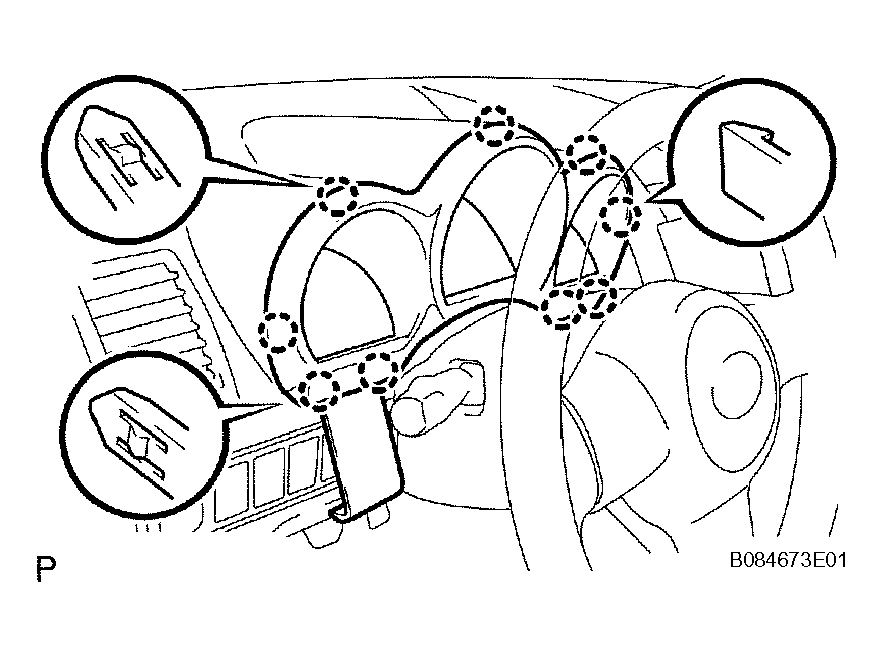

Fig 1: Detaching 9 Claws Using Moulding Remover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSEMBLY
1. Remove the screw and detach the 2 claws.
2. Remove the combination meter and disconnect the connectors.

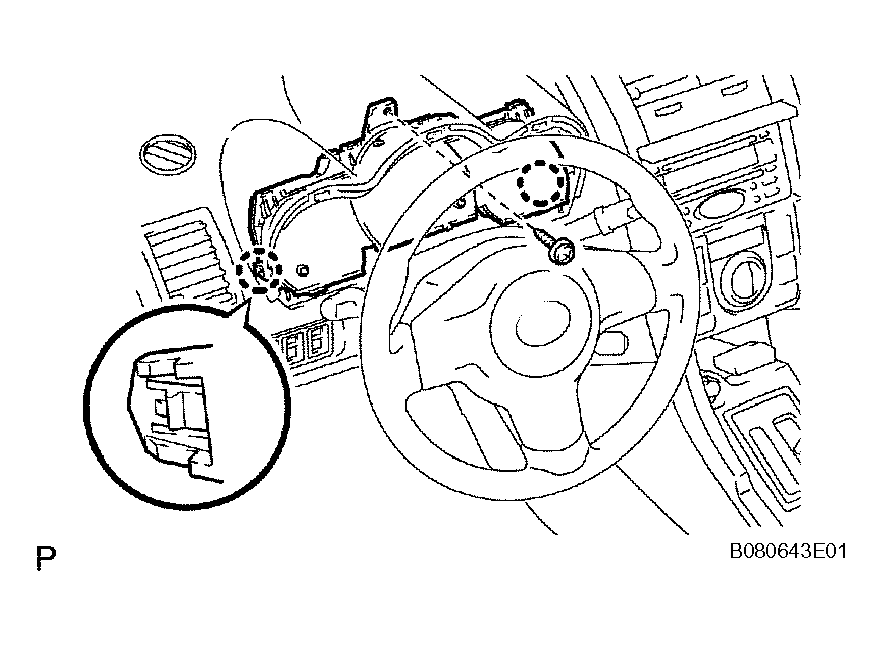

Fig 2: Removing Combination Meter Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER GLASS
1. Detach the 8 claws, and then remove the combination meter glass.

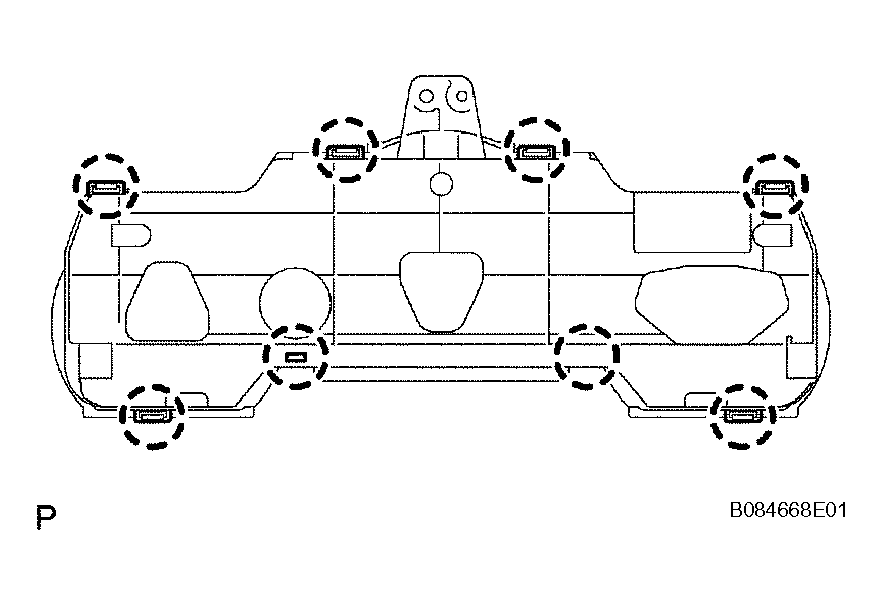

  Fig 3: Removing Combination Meter Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
