Amplifier Antenna: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL AMPLIFIER ANTENNA ASSEMBLY
1. Install the amplifier antenna to its original position.
2. Install the nut.
3. Connect the connector.

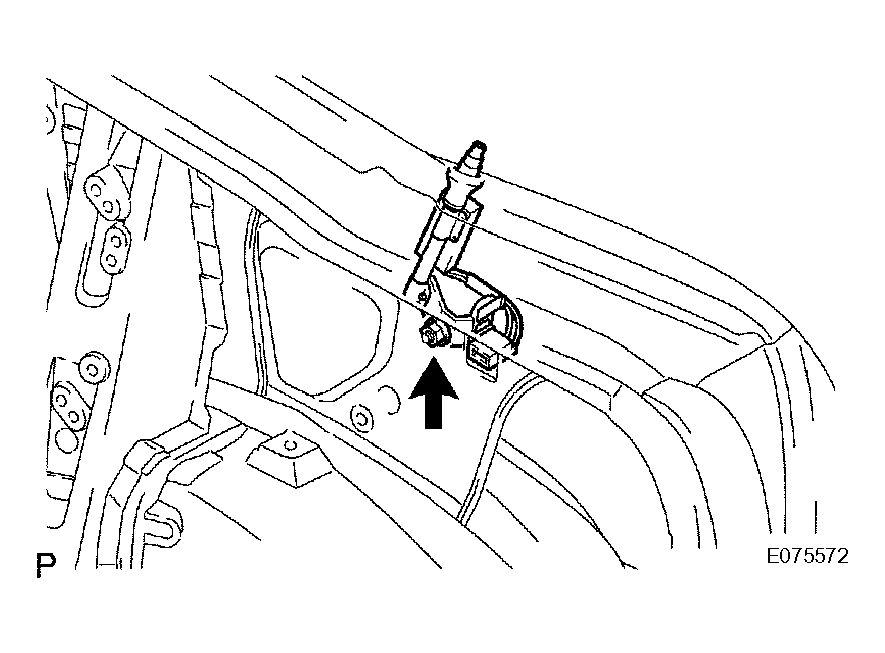

Fig 1: Installing Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ANTENNA ORNAMENT
1. Install the antenna ornament.
INSTALL ANTENNA NUT
1. Using snap ring pliers, install the antenna nut.
HINT:

Wrap the tip of the snap ring pliers with protective tape to prevent damage to the parts.

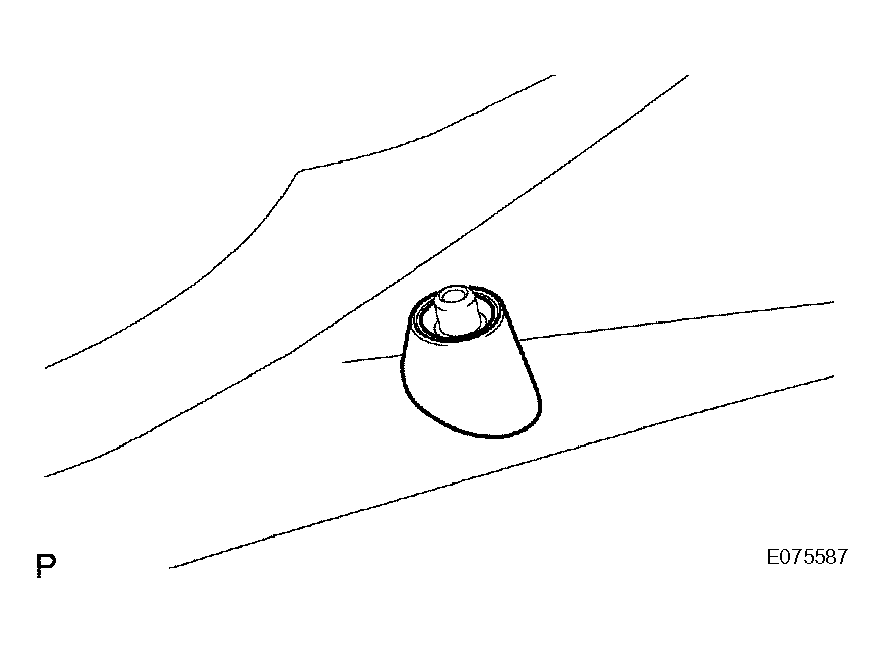

Fig 2: Installing Antenna Ornament
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF ANTENNA POLE SUB-ASSEMBLY
INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (See INSTALLATION )
INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
INSTALL NO. 1 SIDE TRIM ASSEMBLY RH (See INSTALLATION )
INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK
INSTALL FRONT DOOR SCUFF PLATE RH (See INSTALLATION )
INSTALL REAR SEATBACK ASSEMBLY RH (See INSTALLATION )
INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )
INSTALL REAR NO. 1 FLOOR BOARD (See INSTALLATION )
INSTALL ROPE HOOK
INSTALL DECK FLOOR BOX RH (See INSTALLATION )
INSTALL DECK FLOOR BOX LH (See INSTALLATION )
INSTALL BACK DOOR SCUFF PLATE (See INSTALLATION )
INSTALL DECK BOARD SUB-ASSEMBLY
INSTALL TONNEAU COVER ASSEMBLY
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
