Steering Pad Switch: Installation
WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

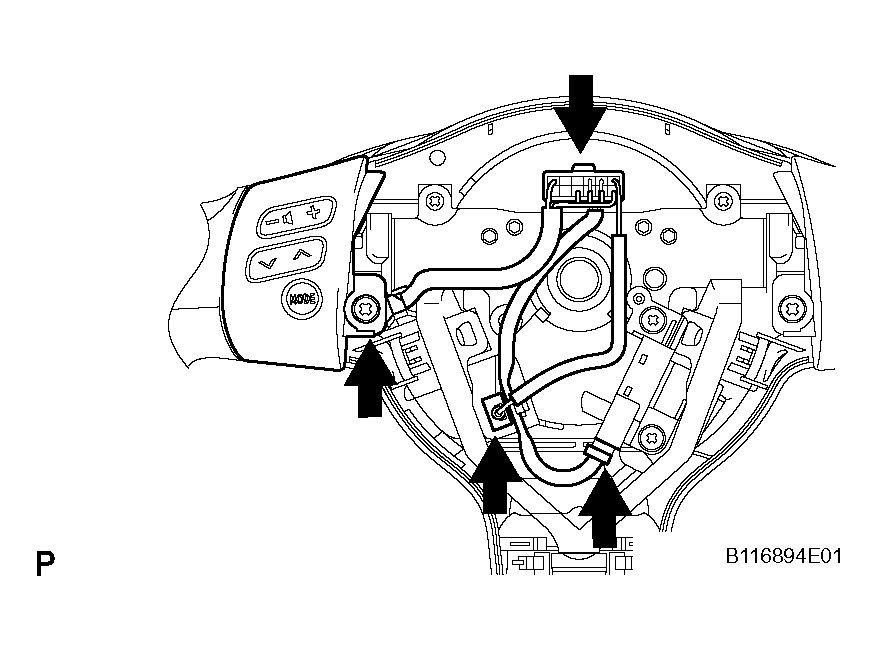

- INSTALL STEERING PAD SWITCH
- Install the steering pad switch.
- Install the screw.
- Connect all connectors.
- INSTALL STEERING PAD ASSEMBLY (See INSTALLATION )
- INSPECT STEERING PAD ASSEMBLY (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (see INITIALIZATION ).
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
