Steering Pad Switch: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE STEERING PAD ASSEMBLY (See REMOVAL )
REMOVE STEERING PAD SWITCH
1. Disconnect all connectors.
2. Remove the screw.
3. Remove the steering pad switch.

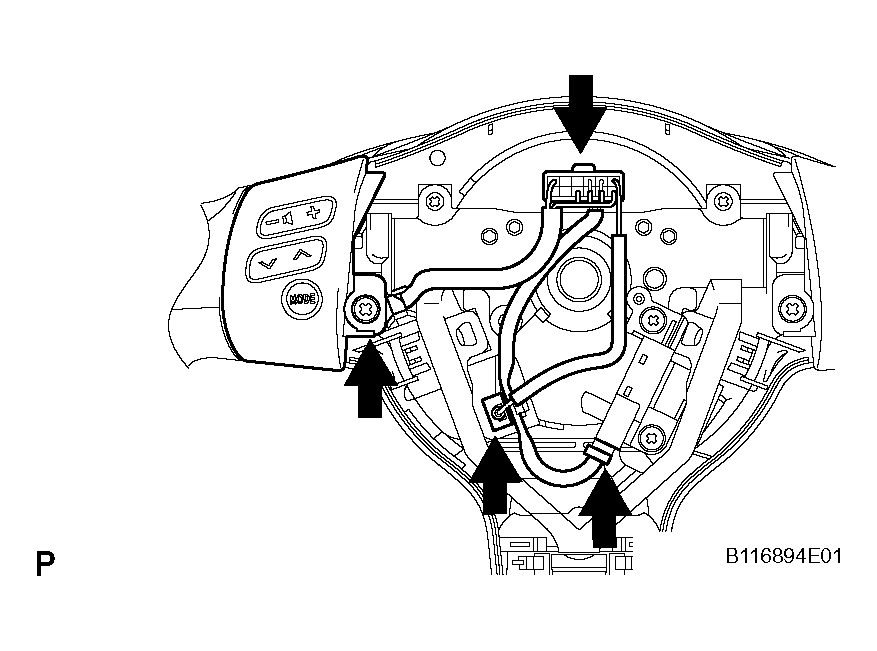

Fig 1: Removing Steering Pad Switch
