Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

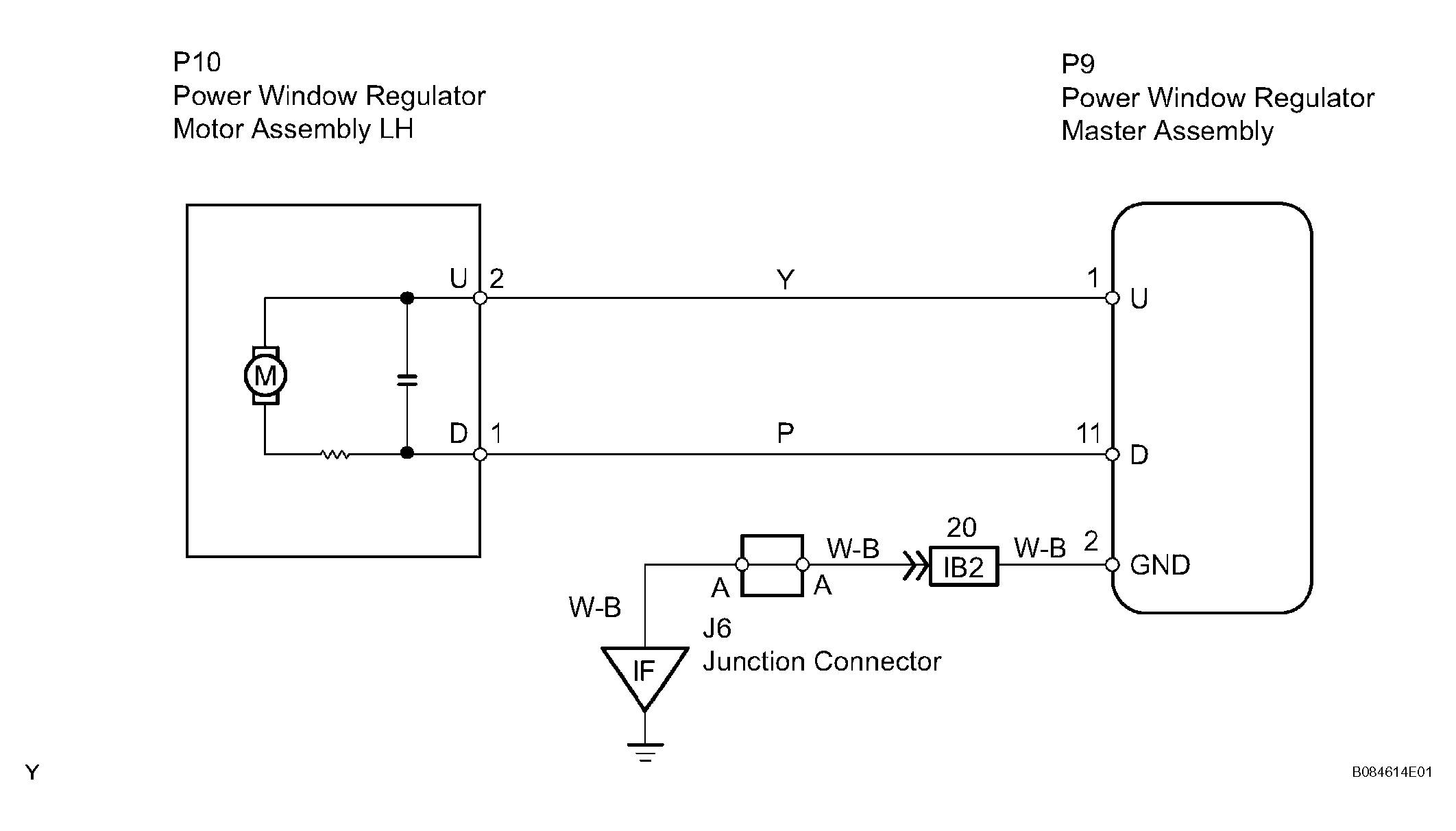

Fig 1: Driver Side Power Window Does Not Operate With Power Window Master Switch - Wiring Diagram
G04224430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
