Power Window Regulator Motor: Inspection

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (DRIVER SIDE)
    1. Check operation of the regulator motor.
      NOTE: Do not apply battery voltage to any terminal except 1 and 2.
      1. Apply battery voltage to the motor terminals.
      2. Check that the motor rotates smoothly.

      OK: Go To Next Step

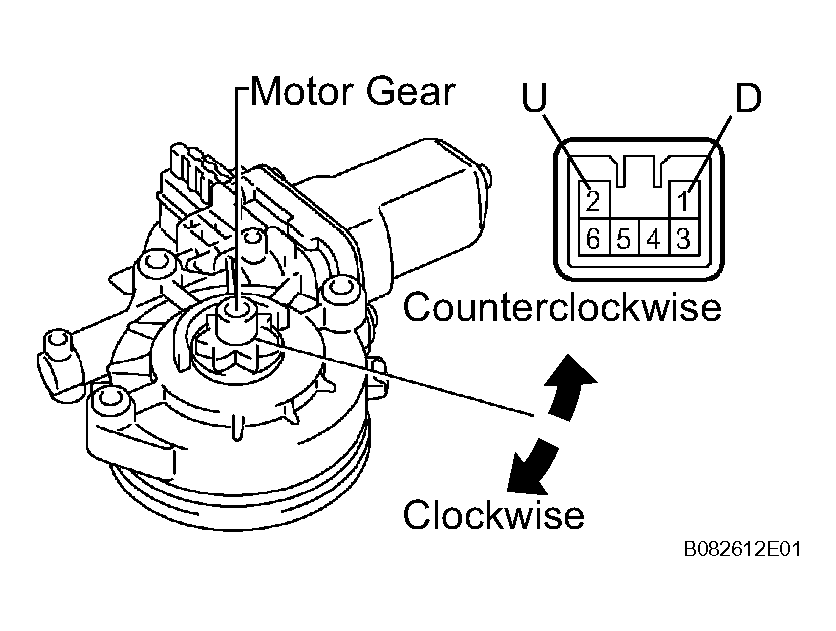

      Fig 1: Inspecting Power Window Regulator Motor Assembly LH (Driver Side)
      G04224450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      MEASUREMENT CONDITION AND SPECIFIED CONDITION REFERENCE

      Measurement Condition Specified Condition
      Battery Positive (+) --> Terminal 1(D)
      Battery Negative (-) --> Terminal 2 (U)      		 Motor gear rotates clockwise
      Battery Positive (+) --> Terminal 2 (U)
      Battery Negative (-) --> Terminal 1 (D)      		 Motor gear rotates counterclockwise

      If the result is not as specified, replace the motor.

    2. Check operation of the PTC inside the regulator motor.
    NOTE: Work must be performed with the power window regulator and door glass installed to the vehicle.
    1. Set an electrical tester DC 400 A probe to the wire harness of terminal 2.
      NOTE: Match the arrow mark of the probe with the current direction.
    2. Fully close the door glass by operating the power window switch and keep the door glass there for approximately 60 seconds.
    3. With the door glass fully closed, operate the power window switch in the closing direction again. Check how long the current takes to change from a range of 16 A to 34 A, to less than 1 A.

      Standard: 4 to 90 seconds

    4. Check that the door glass moves down when the power window regulator switch is pushed DOWN.

    If the result is not as specified, replace the motor.

  2. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
    1. Check operation of the regulator motor.
      NOTE: Do not apply battery voltage to any terminal except 1 and 2.
      1. Apply battery voltage to the motor terminals.
      2. Check that the motor rotates smoothly.

        OK: Go To Next Step

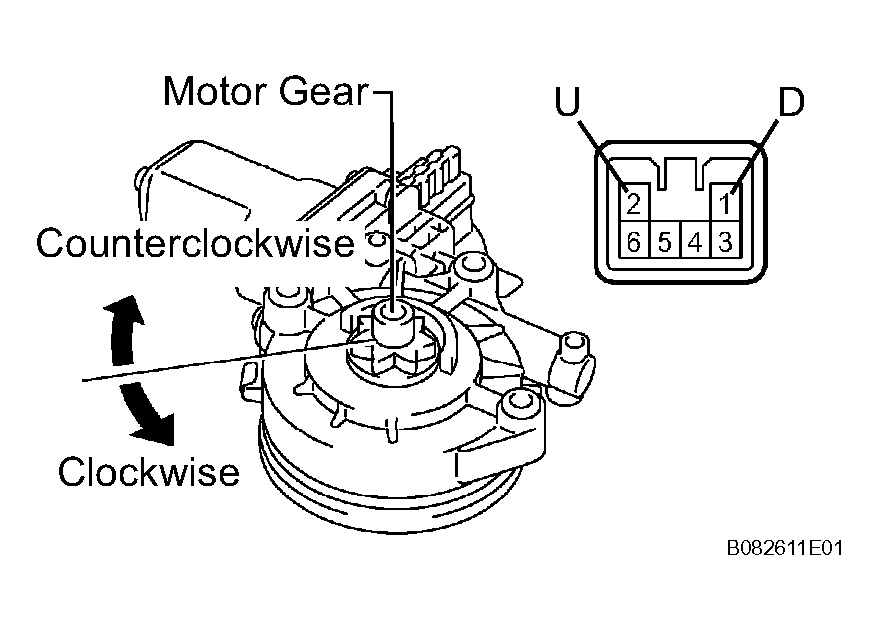

        Fig 2: Inspecting Power Window Regulator Motor Assembly RH
        G04224451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        MEASUREMENT CONDITION AND SPECIFIED CONDITION REFERENCE

        Measurement Condition Specified Condition
        Battery Positive (+) --> Terminal 2 (U)
        Battery Negative (-) --> Terminal 1 (D)        		 Motor gear rotates clockwise
        Battery Positive (+) --> Terminal 1 (D)
        Battery Negative (-) --> Terminal 2 (U)        		 Motor gear rotates counterclockwise

        If the result is not as specified, replace the motor.

    2. Check operation of the PTC inside the regulator motor.
      NOTE: Work must be performed with the power window regulator and door glass installed to the vehicle.
      1. Set an electrical tester DC 400 A probe to the wire harness of terminal 2.
        NOTE: Match the arrow mark of the probe with the current direction.
      2. Fully close the door glass by operating the power window switch and keep the door glass there for approximately 60 seconds.
      3. With the door glass fully closed, operate the power window switch in the closing direction again. Check how long the current takes to change from a range of 16 A to 34 A, to less than 1 A.

        Standard: 4 to 90 seconds

      4. Check that the door glass moves down when the power window regulator switch is pushed DOWN.

      If the result is not as specified, replace the motor.
