Windshield Glass: Components

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

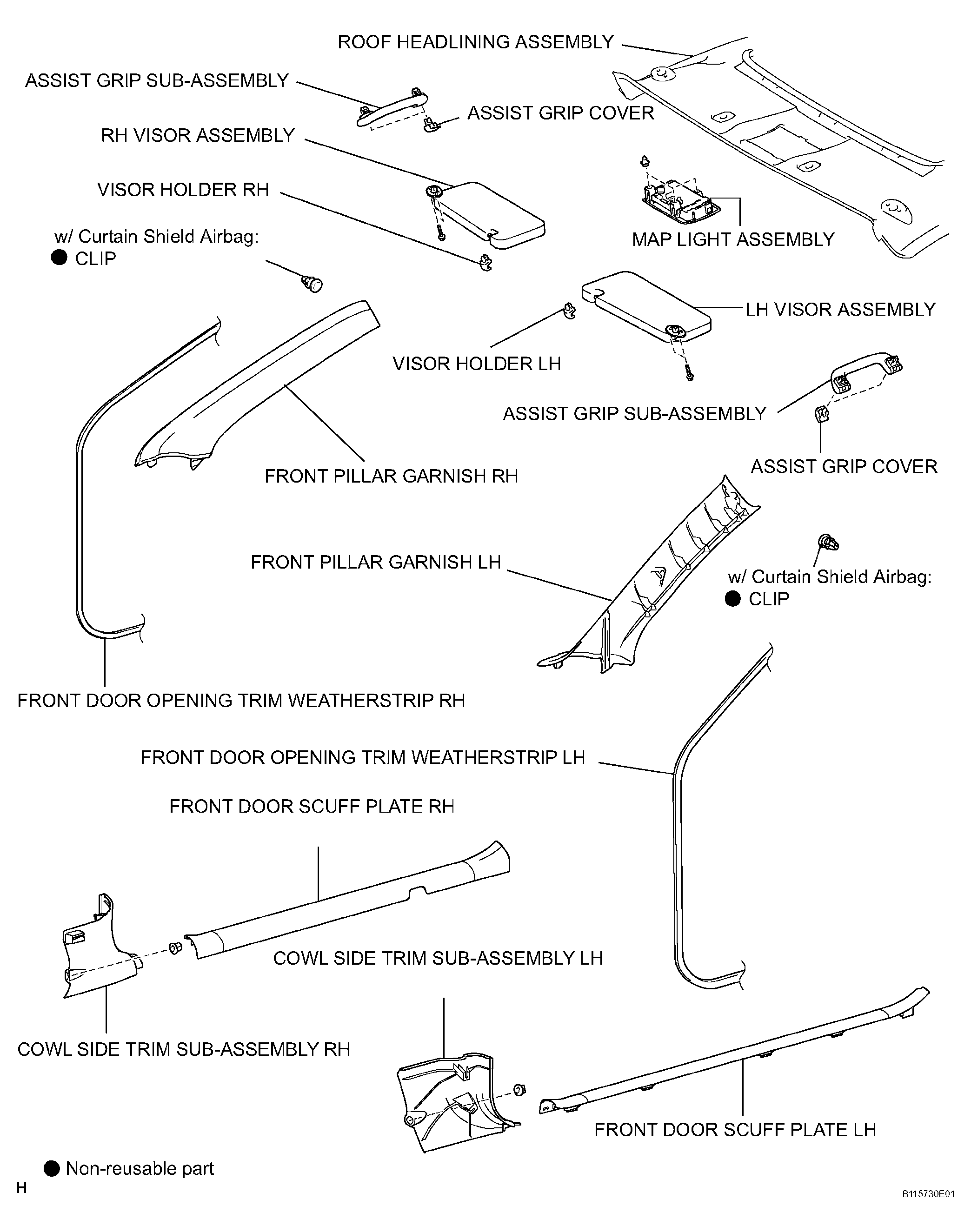

Fig 1: Identifying Windshield Glass Components (1 Of 2)
G04224452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

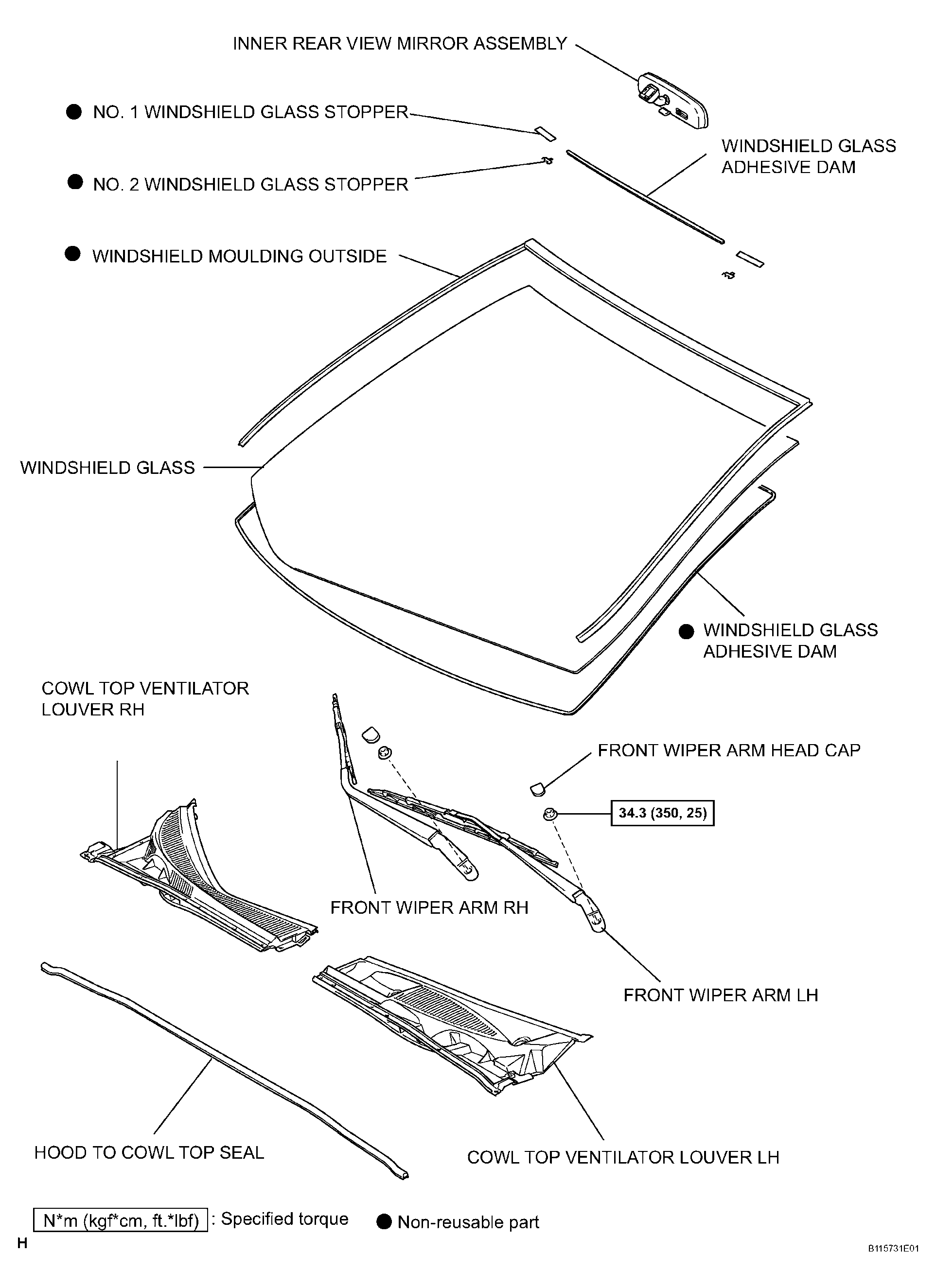

Fig 2: Identifying Windshield Glass Components (2 Of 2)
G04224453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
