Removal and Installation of BCM: Removal

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to "CONFIGURATION ".
  1. Disconnect negative battery cable.
  2. Remove the parking brake pedal assembly. Refer to "PARKING BRAKE CONTROL ".
  3. Remove the BCM (1) by removing the screw (A) and disconnecting the harness connectors (2).

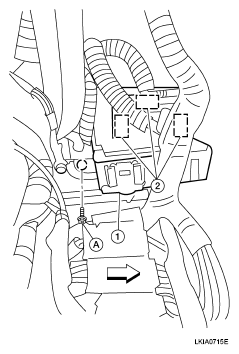

    Fig 1: Identifying ECM Screw And Harness Connectors
    G04908904Courtesy of NISSAN MOTOR CO., U.S.A.
    • <== : Front
