Special Service Tools

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS SPECIFICATION

Tool number
(Kent-Moore No.)
Tool name		 Description
ST25051001
(J-25695-1)
Oil pressure gauge
G04874681Courtesy of NISSAN MOTOR CO., U.S.A.
 Measuring oil pressure
Maximum measuring range: 2,452 kPa (25 kg-cm 2  , 356 psi)
ST25052000
(J-25695-2)
Hose
G04874682Courtesy of NISSAN MOTOR CO., U.S.A.
 Adapting oil pressure gauge to upper oil pan
KV10115801
(J-38956)

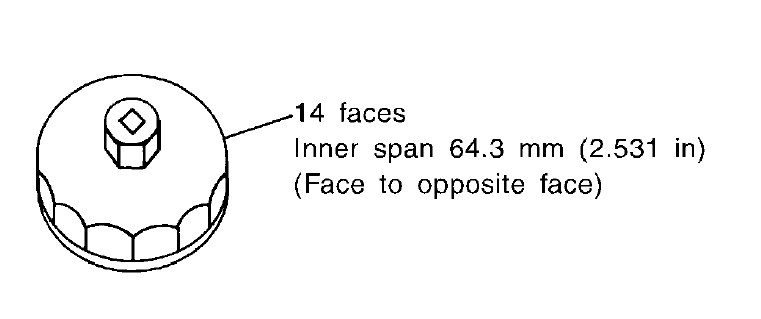

Oil filter wrench
G04886236Courtesy of NISSAN MOTOR CO., U.S.A.
 Removing and installing oil filter
KV10111100
(J-37228)
Seal cutter
G04876270Courtesy of NISSAN MOTOR CO., U.S.A.
 Removing steel oil pan and rear timing chain case
WS39930000
(- )
Tube presser
G04878211Courtesy of NISSAN MOTOR CO., U.S.A.
 Pressing the tube of liquid gasket
