Brake Master Cylinder: Components

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

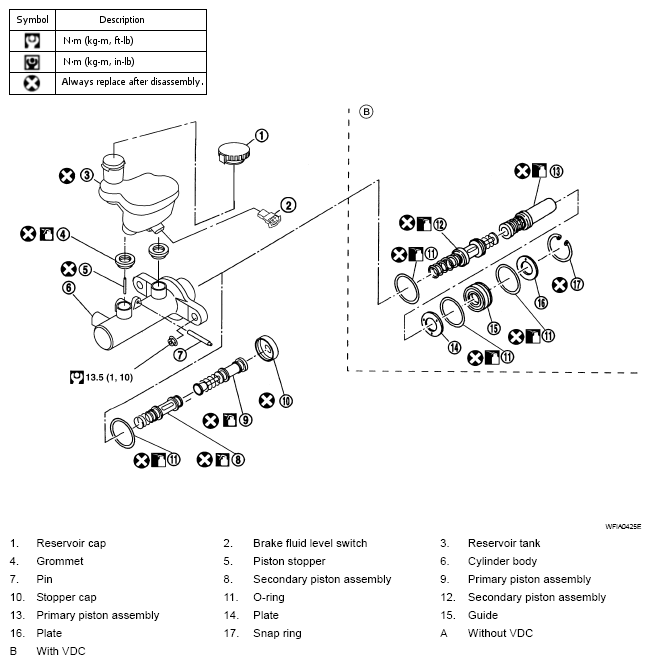

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications
G04916424Courtesy of NISSAN MOTOR CO., U.S.A.
