Removal and Installation: Notes

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

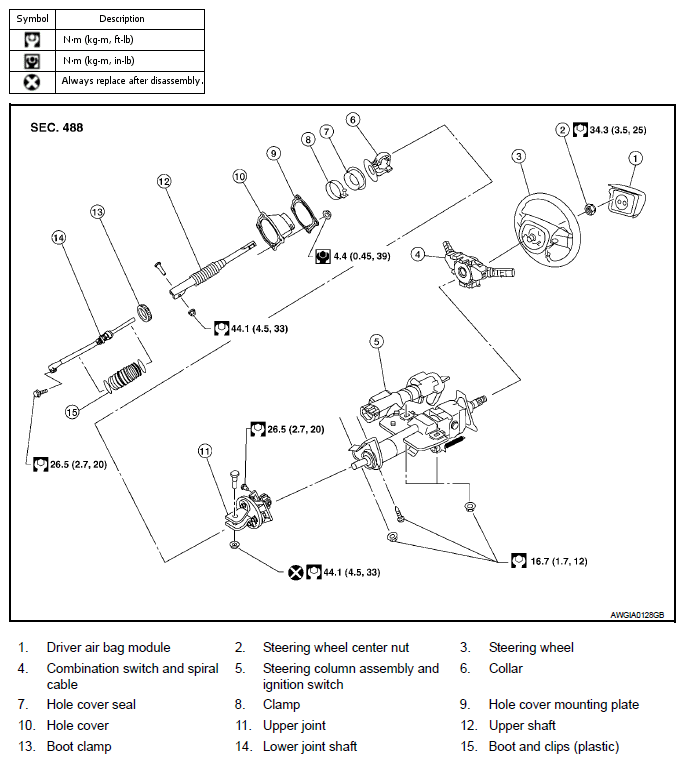

Fig 1: Exploded View Of Steering Column With Torque Specifications
G07155570
CAUTION:
  • Do not exert any axial load or impact to the steering column.
  • Do not move the steering gear while the steering column assembly is removed.
  • Anytime the ignition switch has been removed or installed, the keys must be re-registered in the BCM. Refer to CONSULT-III operation manual IVIS/NVIS.
