Removal and Installation: Notes

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

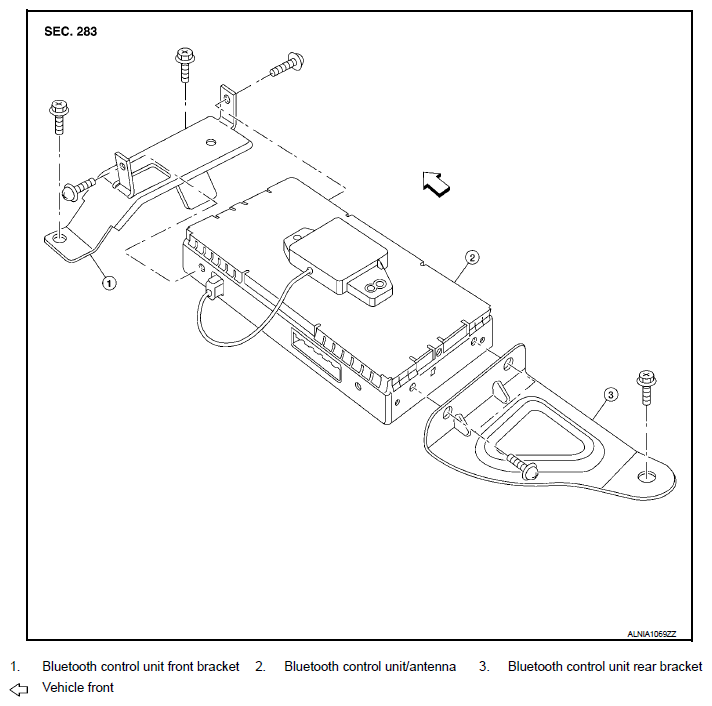

Fig 1: Identifying Bluetooth Control Unit Components
G07156320
