Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the caliper body from the torque member. Refer to "REMOVAL AND INSTALLATION OF BRAKE CALIPER AND DISC ROTOR ".
  2. Remove the upper sliding pin, lower sliding pin, and sliding pin boots from the torque member.
  3. Place a wooden block as shown, and then blow air from the union bolt hole to remove the pistons and piston boots.
    WARNING: Do not get your fingers caught between the pistons and wooden block.

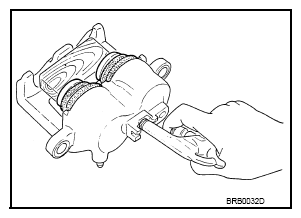

    Fig 1: Blowing Air From Union Bolt Mounting Hole
    G07013879
  4. Remove the piston boots from the pistons.
    CAUTION: Do not reuse piston boot.
  5. Remove piston seals from cylinder body, using a suitable tool.
    CAUTION:
    • Be careful not to damage cylinder body inner wall.
    • Do not reuse piston seal.

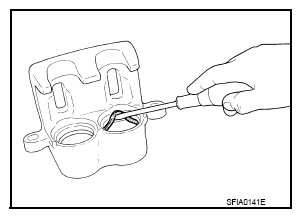

    Fig 2: Removing Piston Seal From Cylinder Body Using Suitable Tool
    G07013880
  6. Remove the bleed valve and cap.
