Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front pillar upper finisher (RH). Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the side ventilator grille (RH). Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the lower dash side finisher. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove the upper glove box. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove the bolt (A), disconnect the harness connector (1), and remove the intelligent key unit (2).

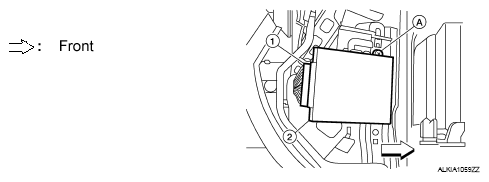

Fig 1: Identifying Intelligent Key Unit, Harness Connector And Bolt
G05713510Courtesy of NISSAN NORTH AMERICA, INC.
