Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM): WORK PROCEDURE ".

Disconnect the battery negative terminal.
Remove the instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
Remove the BCM screws and release the BCM.
Disconnect the BCM connectors and then remove the BCM.

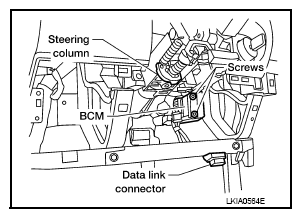

Fig 1: Identifying Steering Column, Body Control Module, Data Link Connector And Screws
Courtesy of NISSAN NORTH AMERICA, INC.
