Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

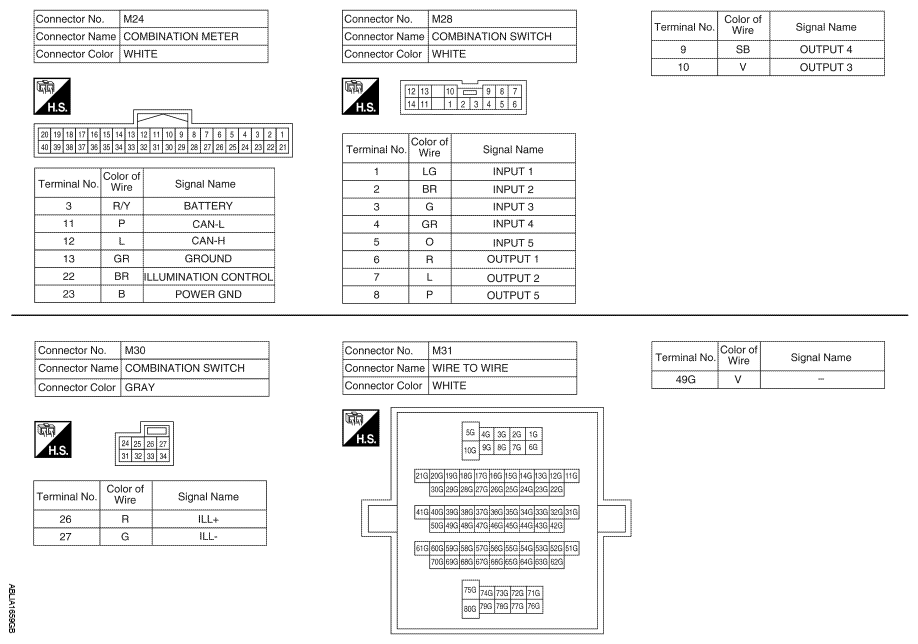

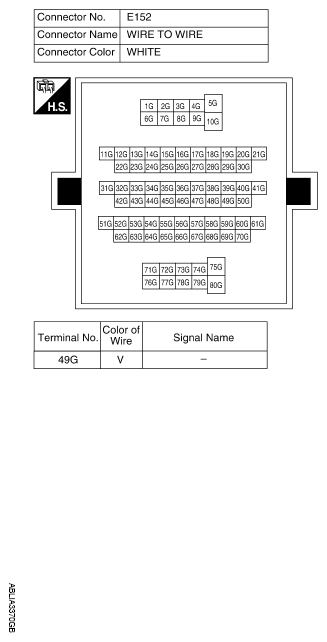

Fig 1: Identifying Illumination Connectors (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

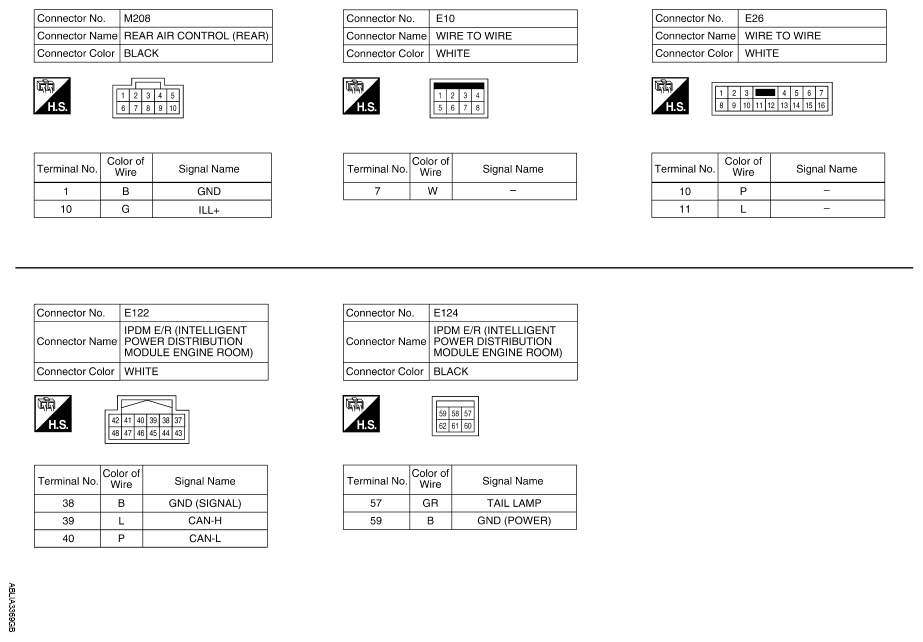

Fig 2: Identifying Illumination Connectors (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

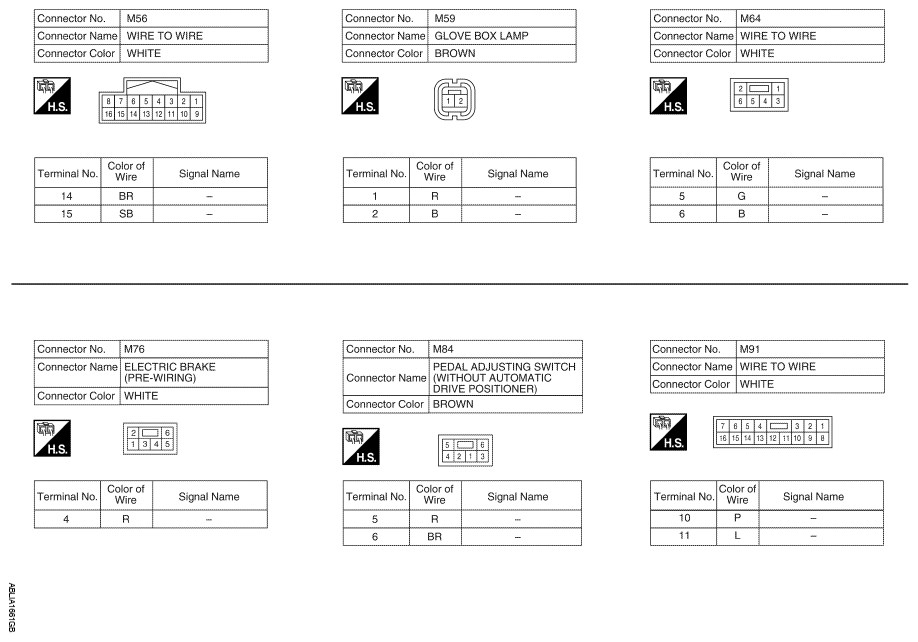

Fig 3: Identifying Illumination Connectors (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

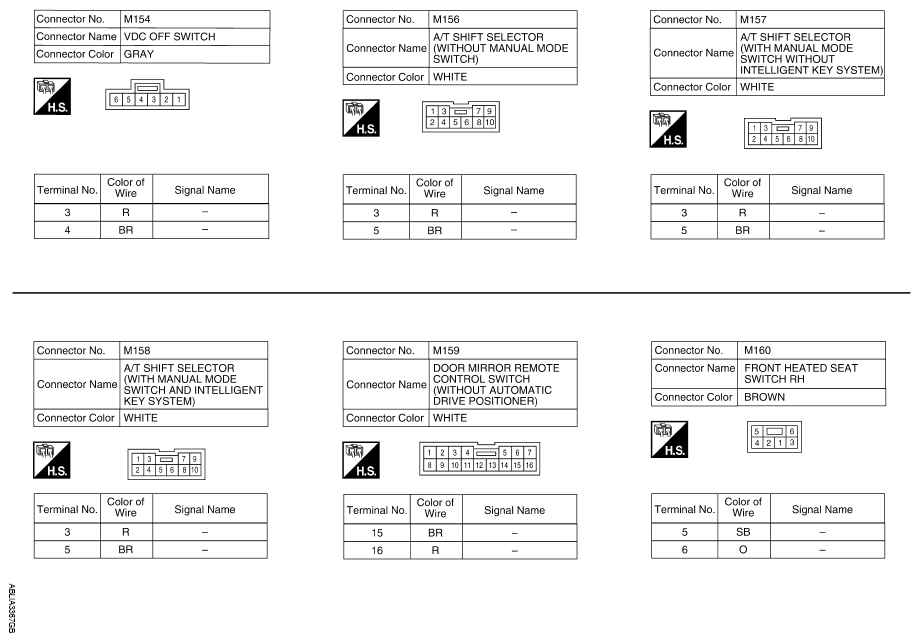

Fig 4: Identifying Illumination Connectors (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

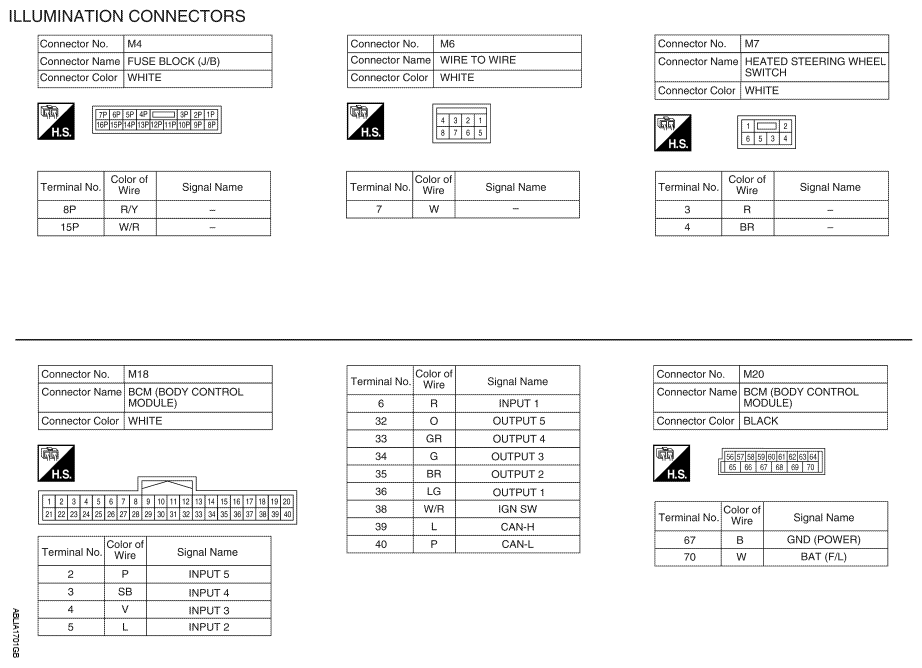

Fig 5: Identifying Illumination Connectors (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

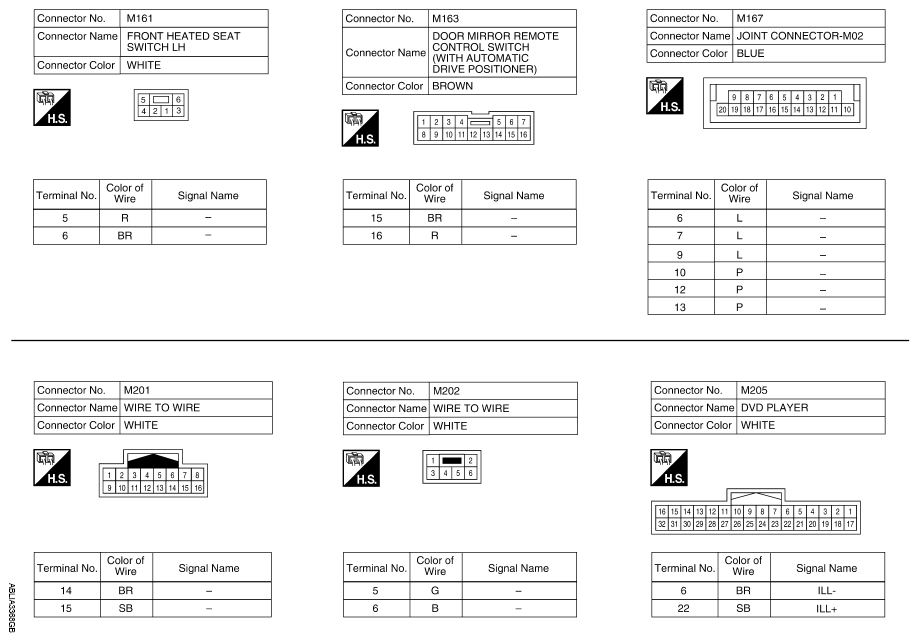

Fig 6: Identifying Illumination Connectors (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

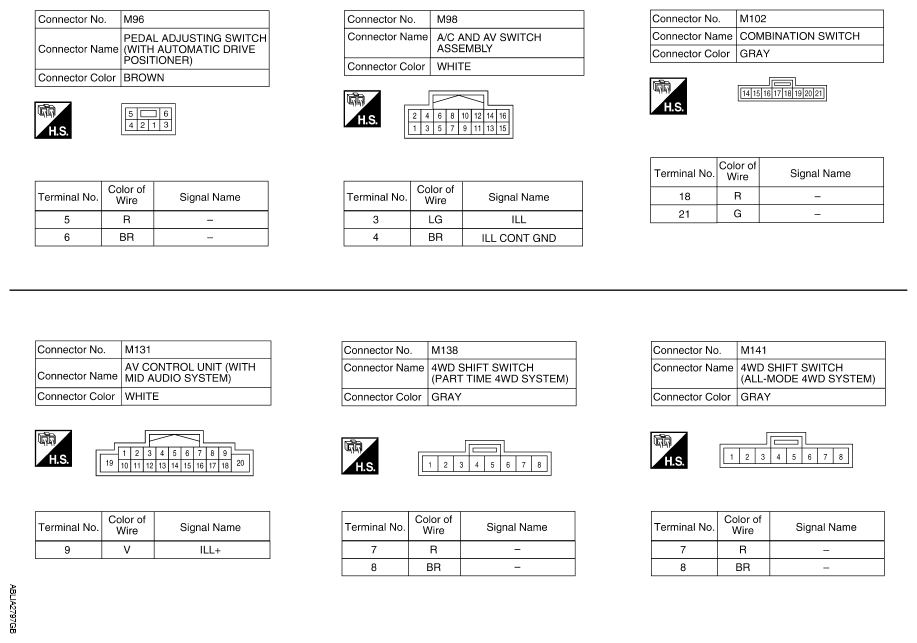

Fig 7: Identifying Illumination Connectors (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

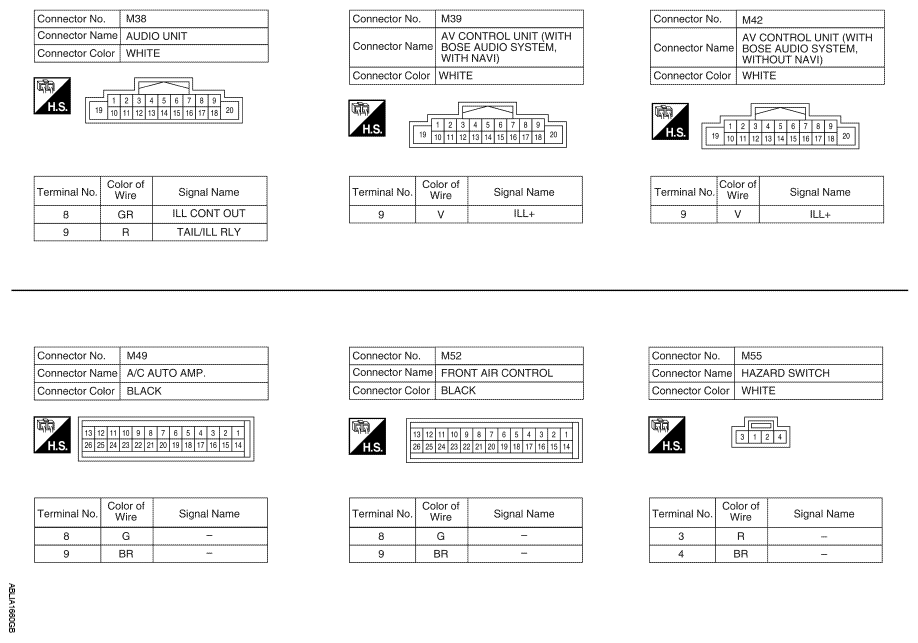

Fig 8: Identifying Illumination Connectors (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Illumination Connectors (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
