Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

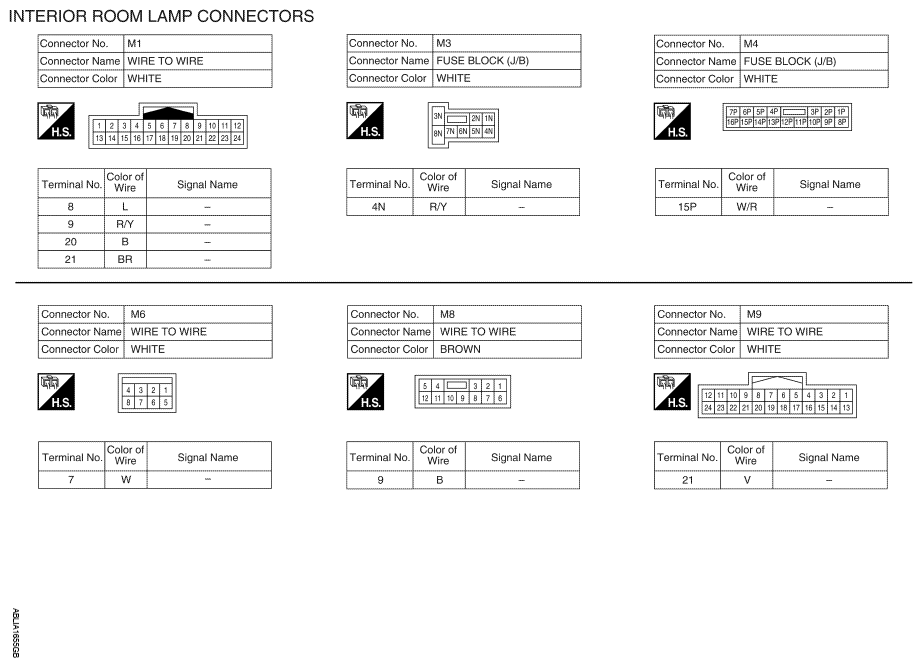

Fig 1: Identifying Interior Room Lamp Connectors (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

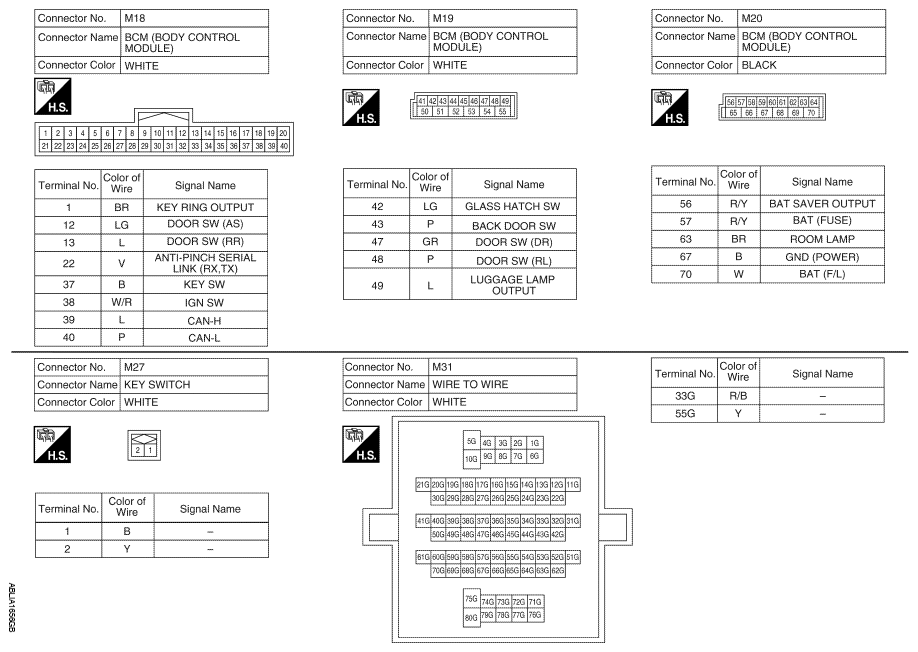

Fig 2: Identifying Interior Room Lamp Connectors (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

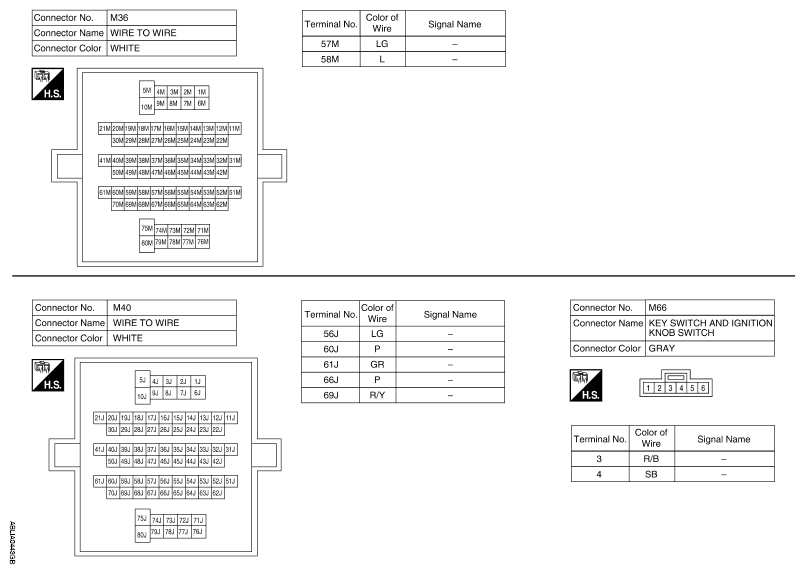

Fig 3: Identifying Interior Room Lamp Connectors (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

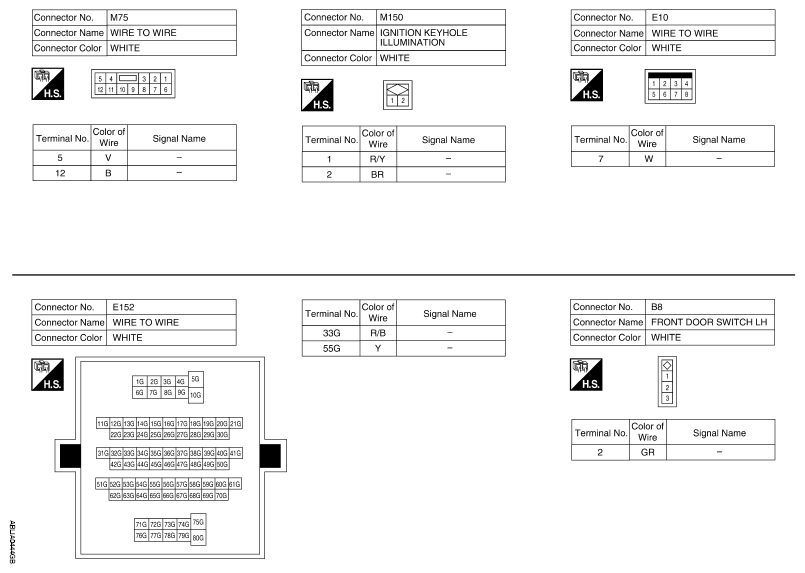

Fig 4: Identifying Interior Room Lamp Connectors (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

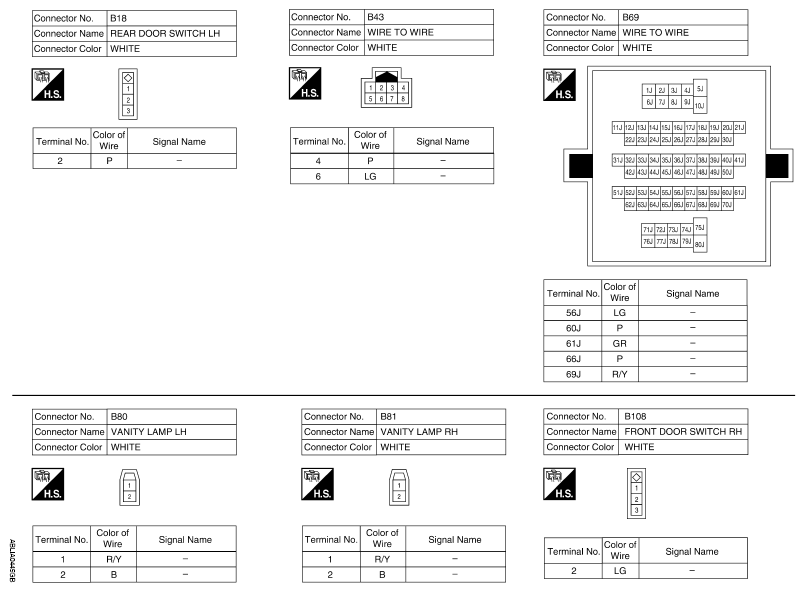

Fig 5: Identifying Interior Room Lamp Connectors (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

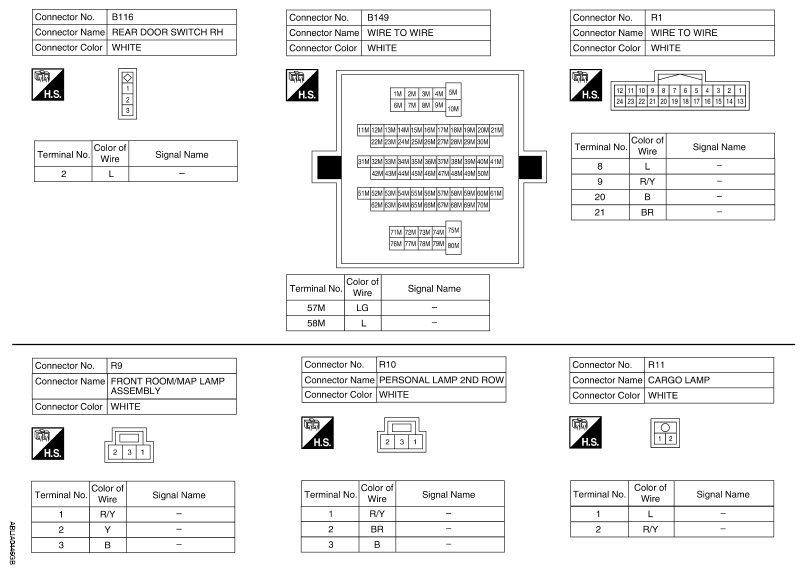

Fig 6: Identifying Interior Room Lamp Connectors (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

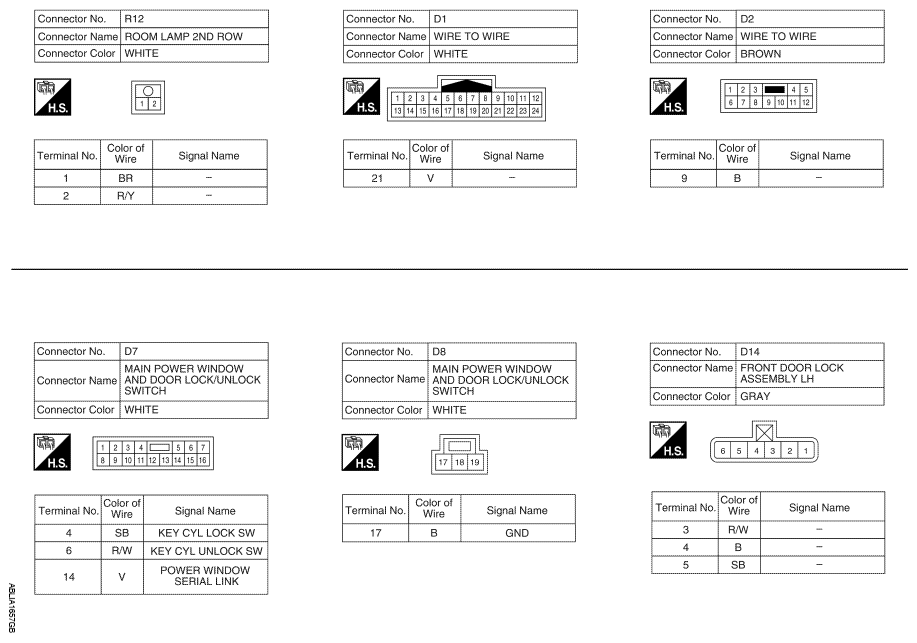

Fig 7: Identifying Interior Room Lamp Connectors (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

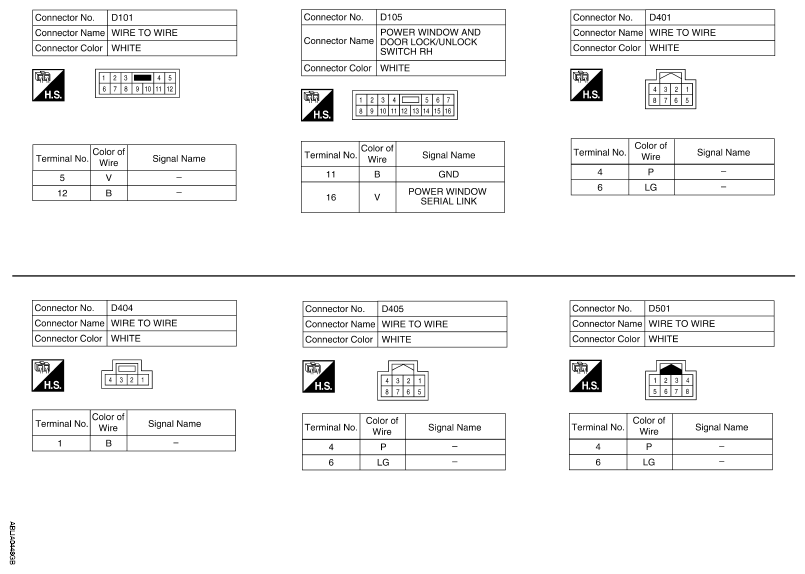

Fig 8: Identifying Interior Room Lamp Connectors (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

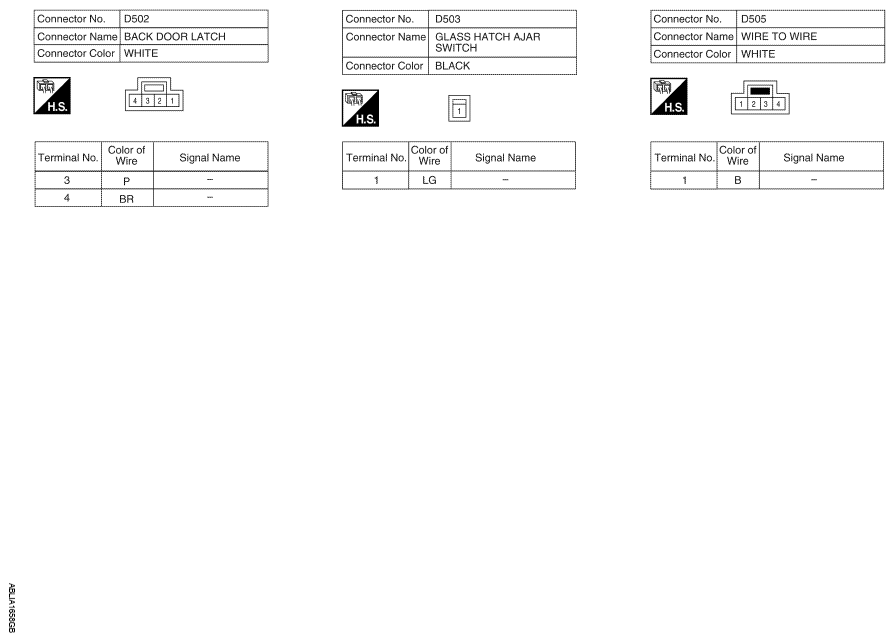

Fig 9: Identifying Interior Room Lamp Connectors (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
