ECM Inspection Table

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

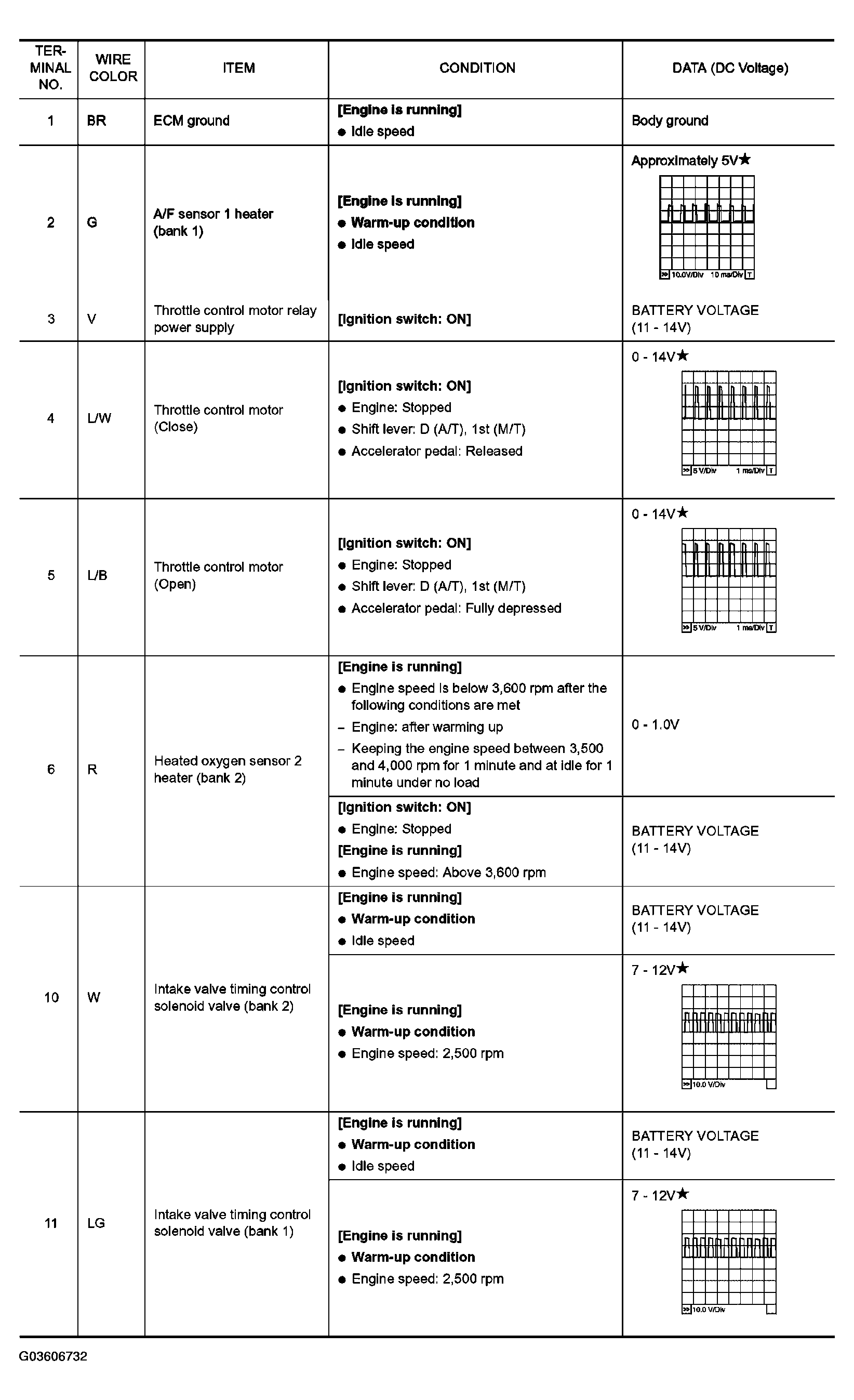

Fig 1: ECM Inspection Reference Values Chart (1 Of 8)

G03606732

Courtesy of NISSAN MOTOR CO., U.S.A.

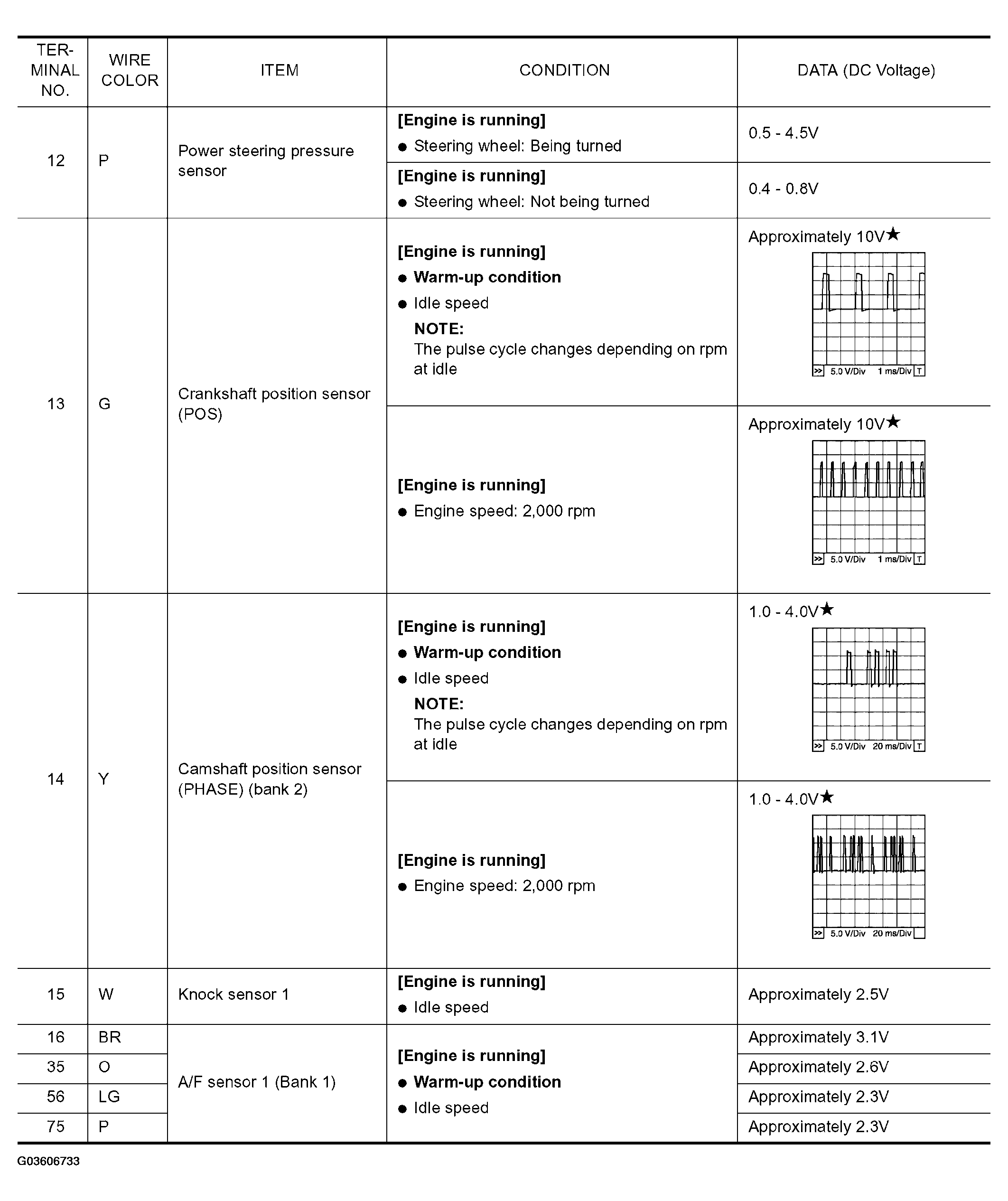

Fig 2: ECM Inspection Reference Values Chart (2 Of 8)

G03606733

Courtesy of NISSAN MOTOR CO., U.S.A.

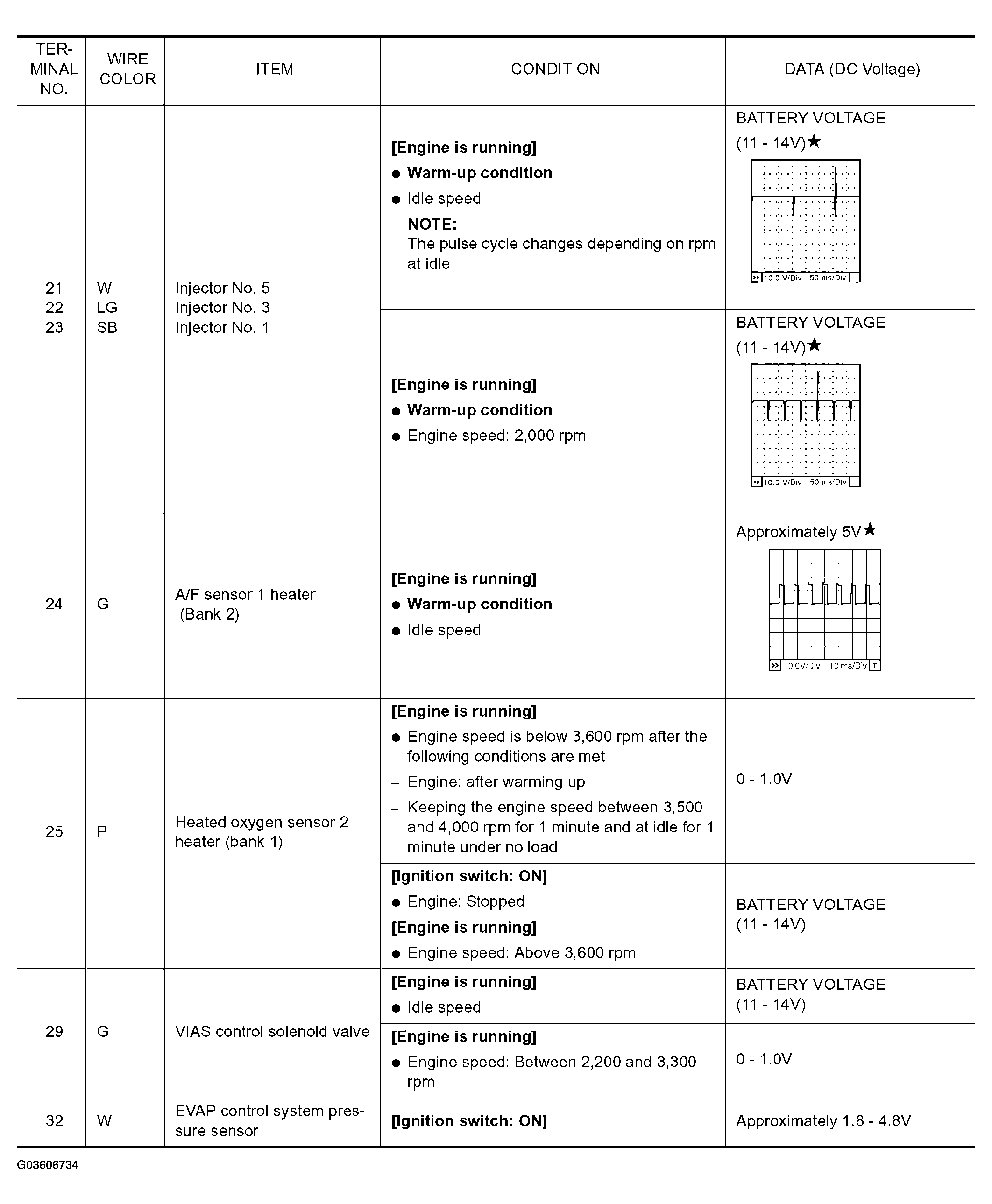

Fig 3: ECM Inspection Reference Values Chart (3 Of 8)

G03606734

Courtesy of NISSAN MOTOR CO., U.S.A.

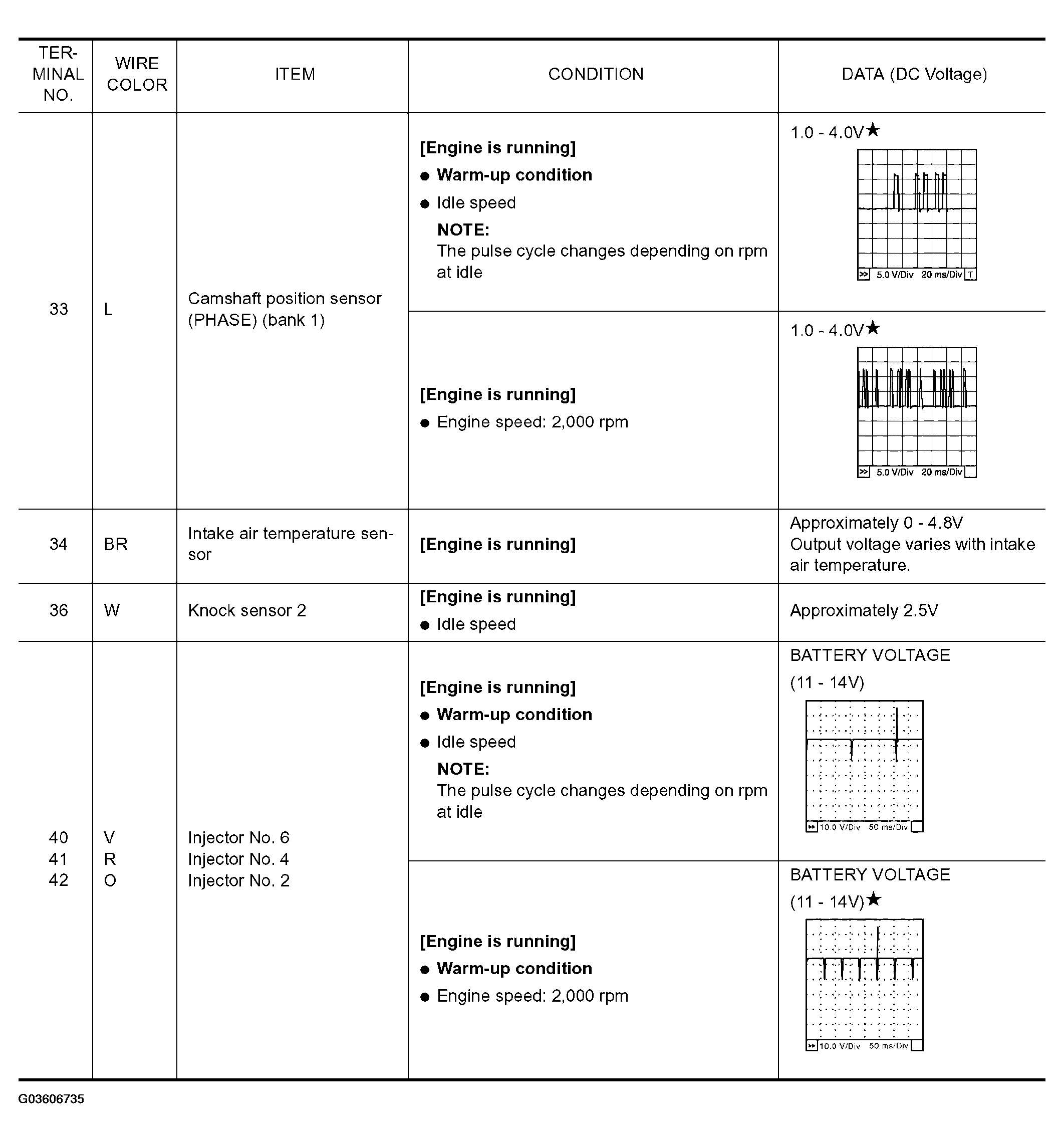

Fig 4: ECM Inspection Reference Values Chart (4 Of 8)

G03606735

Courtesy of NISSAN MOTOR CO., U.S.A.

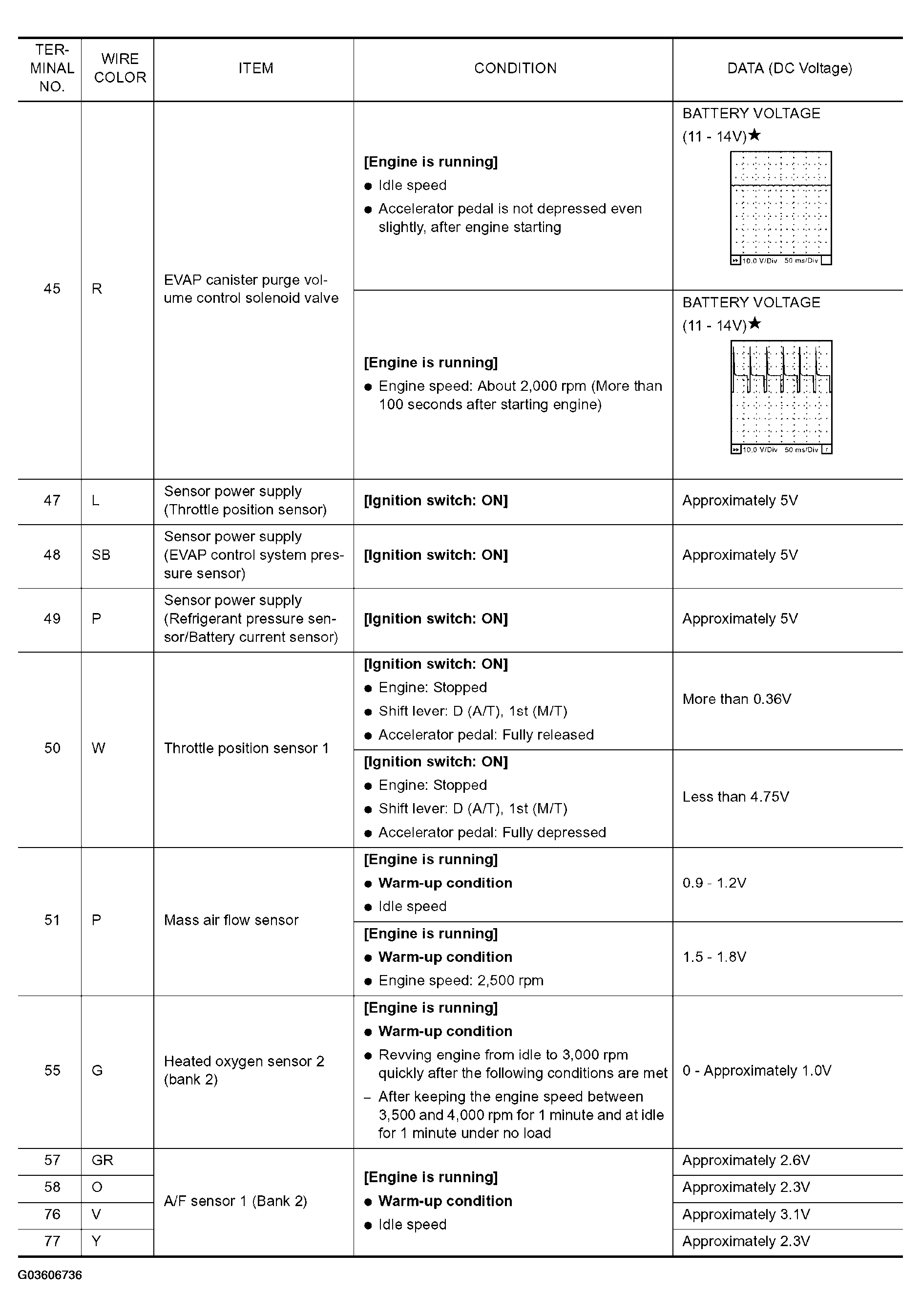

Fig 5: ECM Inspection Reference Values Chart (5 Of 8)

G03606736

Courtesy of NISSAN MOTOR CO., U.S.A.

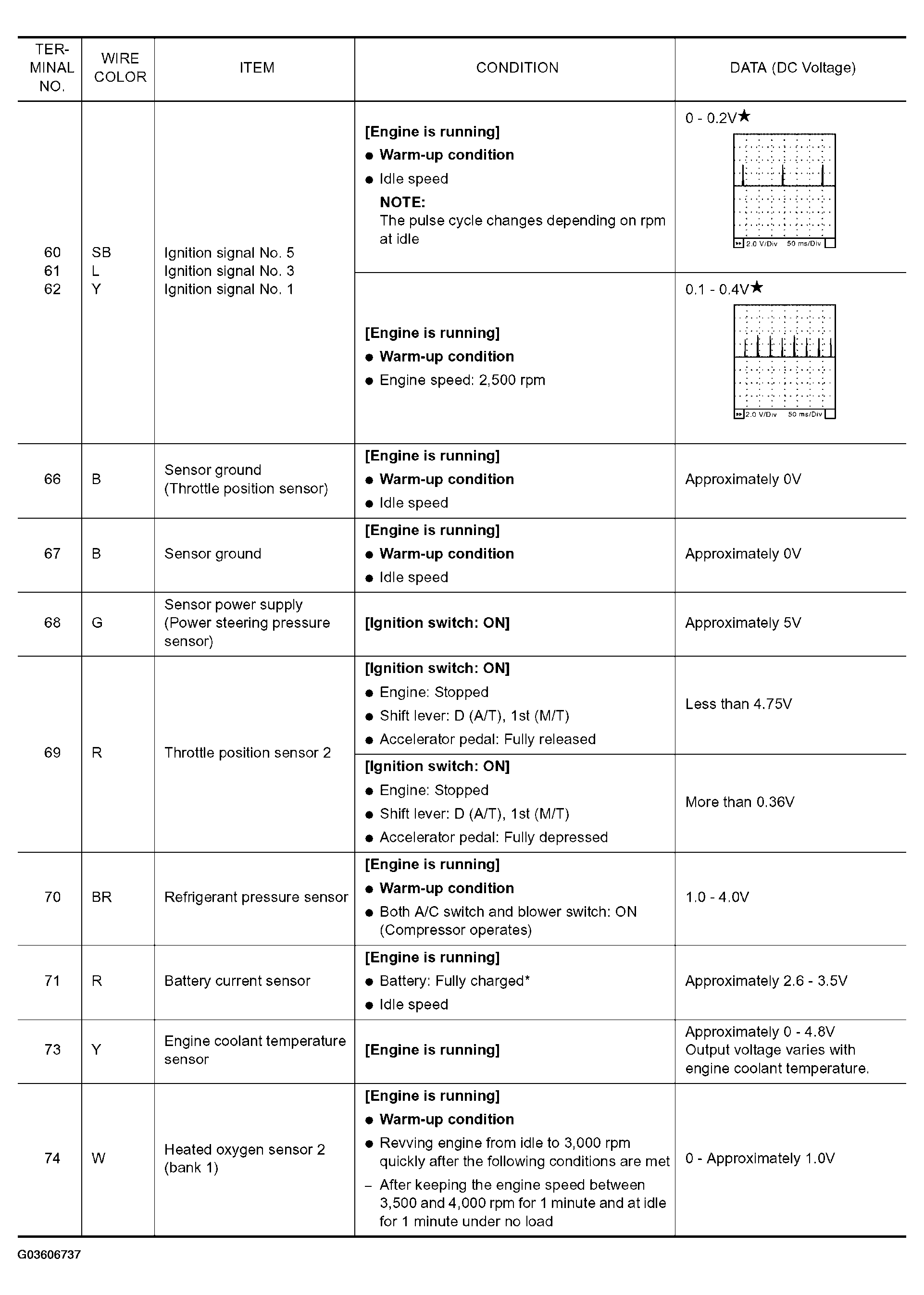

Fig 6: ECM Inspection Reference Values Chart (6 Of 8)

G03606737

Courtesy of NISSAN MOTOR CO., U.S.A.

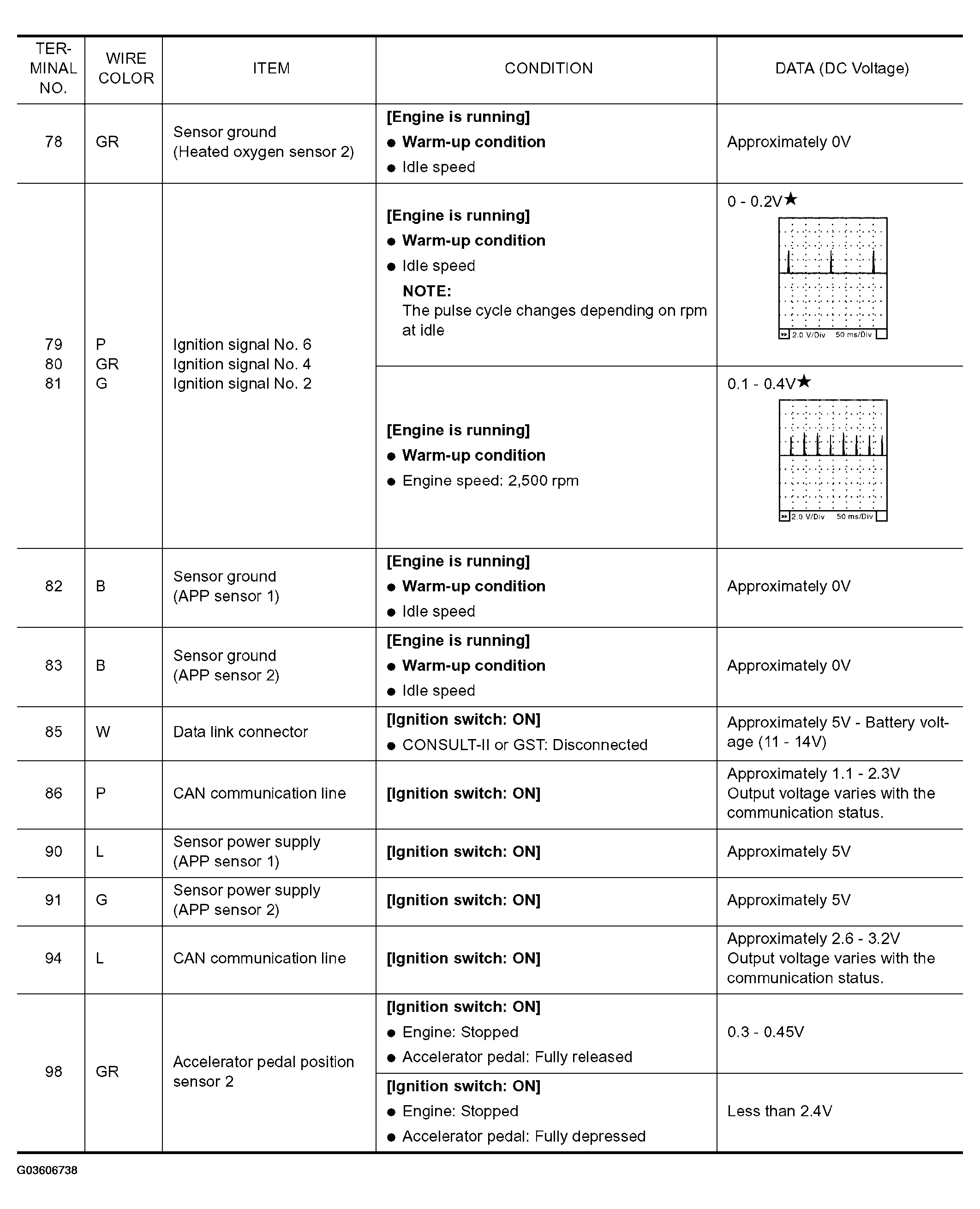

Fig 7: ECM Inspection Reference Values Chart (7 Of 8)

G03606738

Courtesy of NISSAN MOTOR CO., U.S.A.

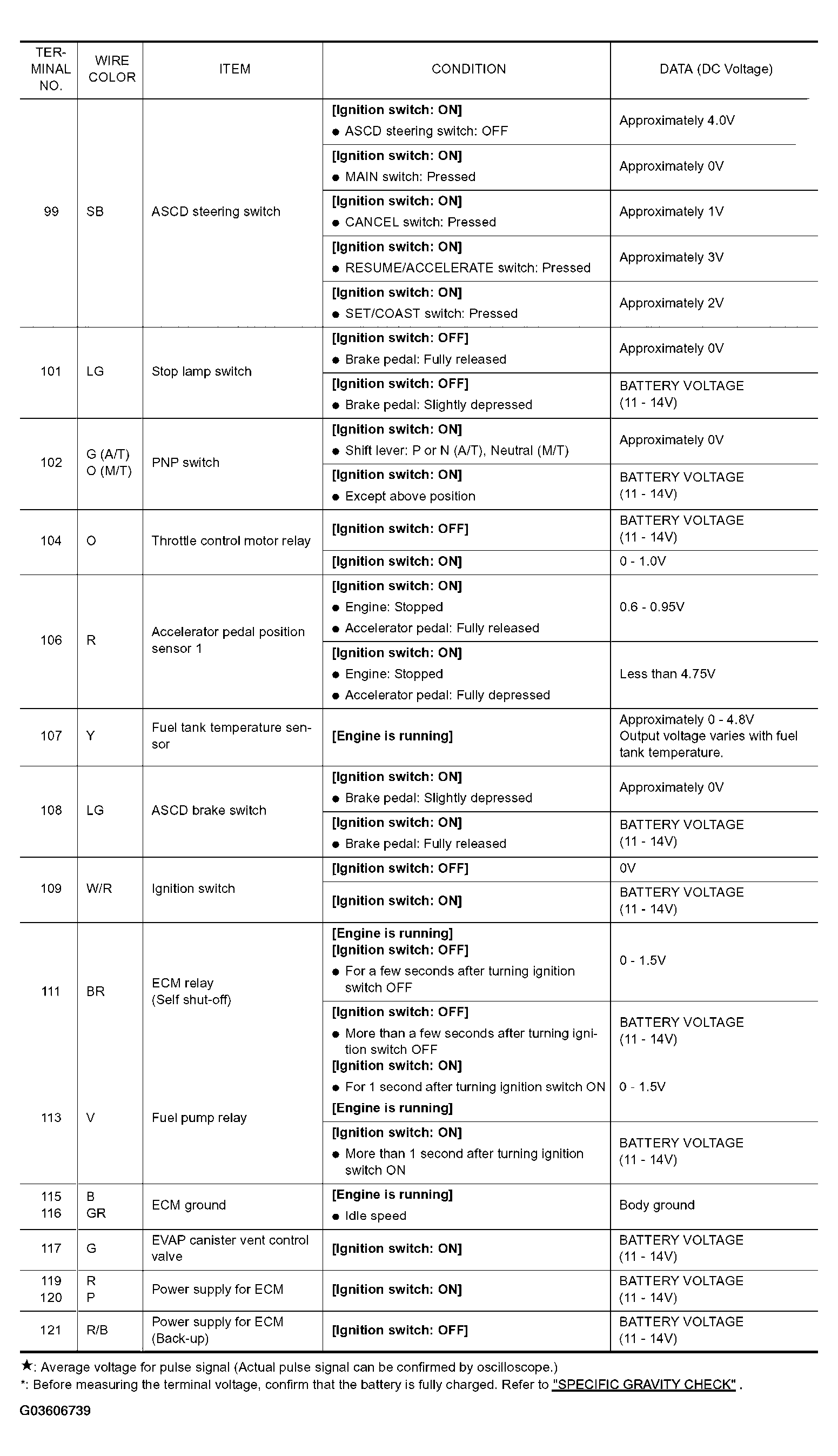

Fig 8: ECM Inspection Reference Values Chart (8 Of 8)

G03606739

Courtesy of NISSAN MOTOR CO., U.S.A.
