ECM Terminals and Reference Value: Preparation

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. ECM located in the engine room passenger side behind reservoir tank.
  2. Remove ECM harness connector.

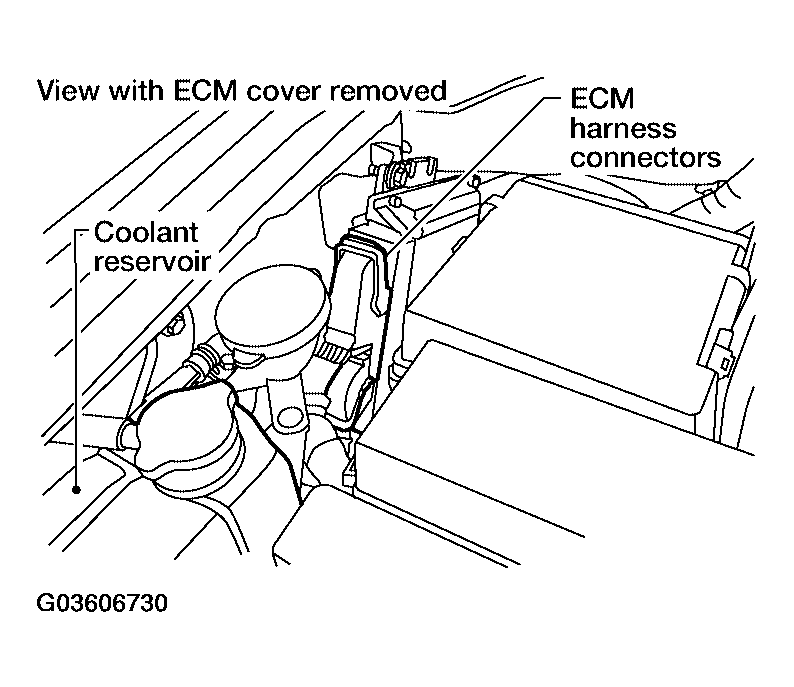

    Fig 1: Removing ECM Harness Connector
    G03606730Courtesy of NISSAN MOTOR CO., U.S.A.

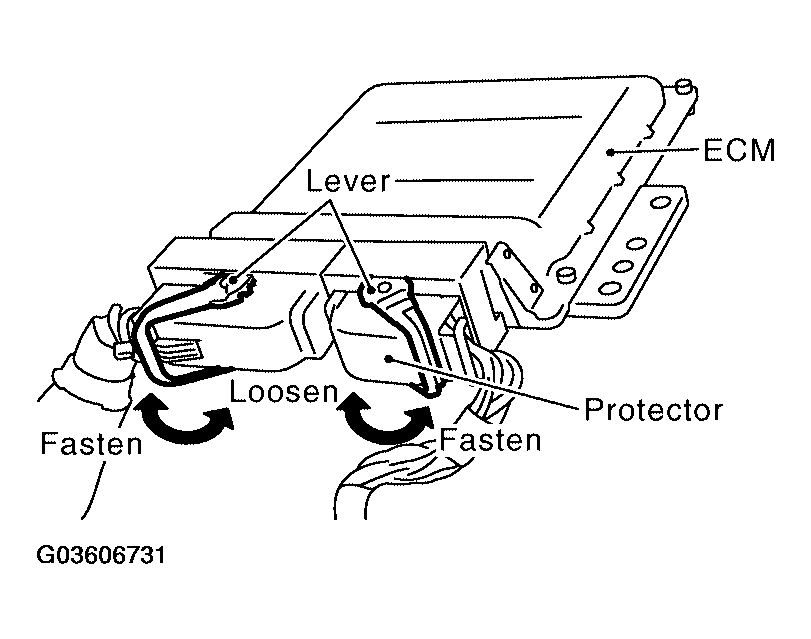

  3. When disconnecting ECM harness connector, loosen it with levers as far as they will go as shown in the figure.
  4. Connect a break-out box (SST) and Y-cable adapter (SST) between the ECM and ECM harness connector.
    Fig 2: Connecting Break-Out Box (SST) And Y-Cable Adapter
    G03606731Courtesy of NISSAN MOTOR CO., U.S.A.
    • Use extreme care not to touch 2 pins at one time.
    • Data is for comparison and may not be exact.
