Without CONSULT-II

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Check air passage continuity and operation delay time under the following conditions.

ON BOARD DIAGNOSTIC LOGIC

Condition	Air passage continuity between A and B	Air passage continuity between A and C
12V direct current supply between terminals 1 and 2	Yes	No
No supply	No	Yes

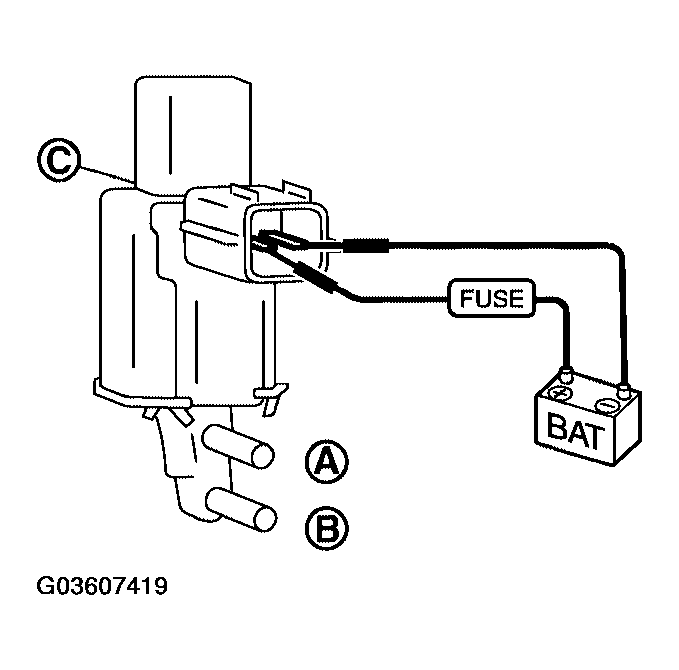

Fig 1: Checking Air Passage Continuity And Operation Delay Time

Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second .
