EVAP Service Port

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Positive pressure is delivered to the EVAP system through the EVAP service port. If fuel vapor leakage in the EVAP system occurs, use a leak detector to locate the leak.

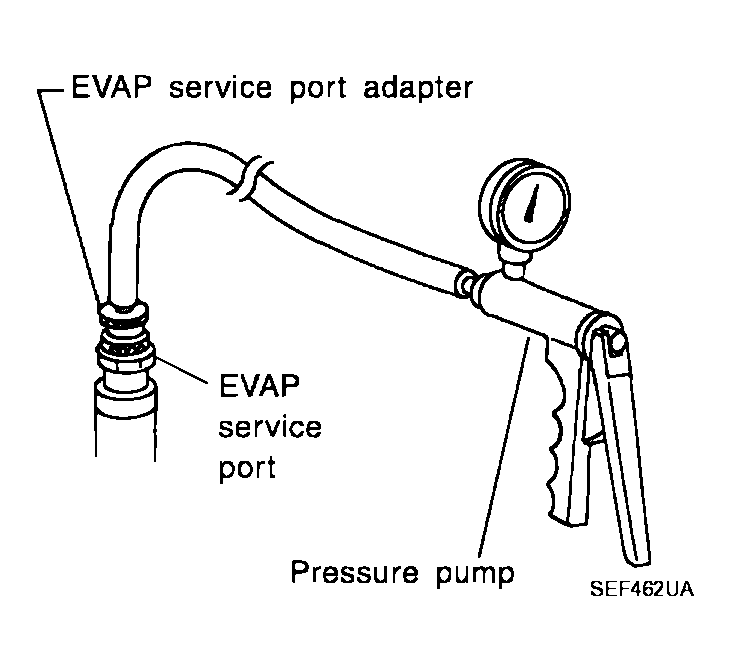

Fig 1: Delivering Positive Pressure To EVAP System Through EVAP Service Port
G04173034Courtesy of NISSAN MOTOR CO., U.S.A.
