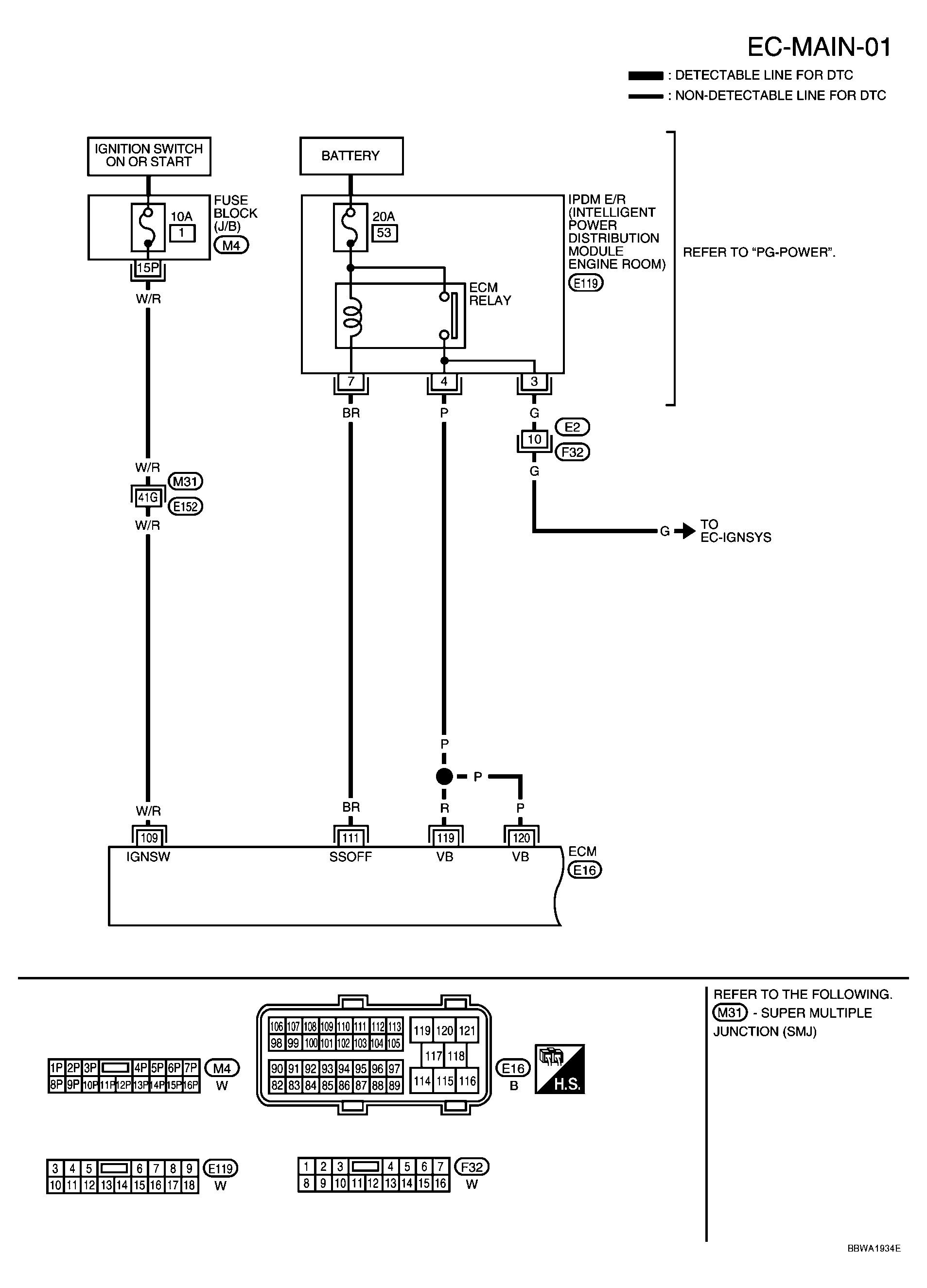

Power Supply And Ground Circuit: Wiring Diagram
WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
For PG Power or Section, go to SYSTEM WIRING DIAGRAMS .
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMINALS VOLTAGE SPECIFICATIONS
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 109 | W/R | Ignition switch | [Ignition switch: OFF] | 0V |
| [Ignition switch: ON] | BATTERY VOLTAGE (11 -14V) |
|||
| 111 | BR | ECM relay (Self shut-off) | [Engine is running] [Ignition switch: OFF]
|
0-1.5V |
[Ignition switch: OFF]
|
BATTERY VOLTAGE (11 -14V) |
|||
| 119 | R | Power supply for ECM | [Ignition switch: ON] | BATTERY VOLTAGE (11 -14V) |
| 120 | P |
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

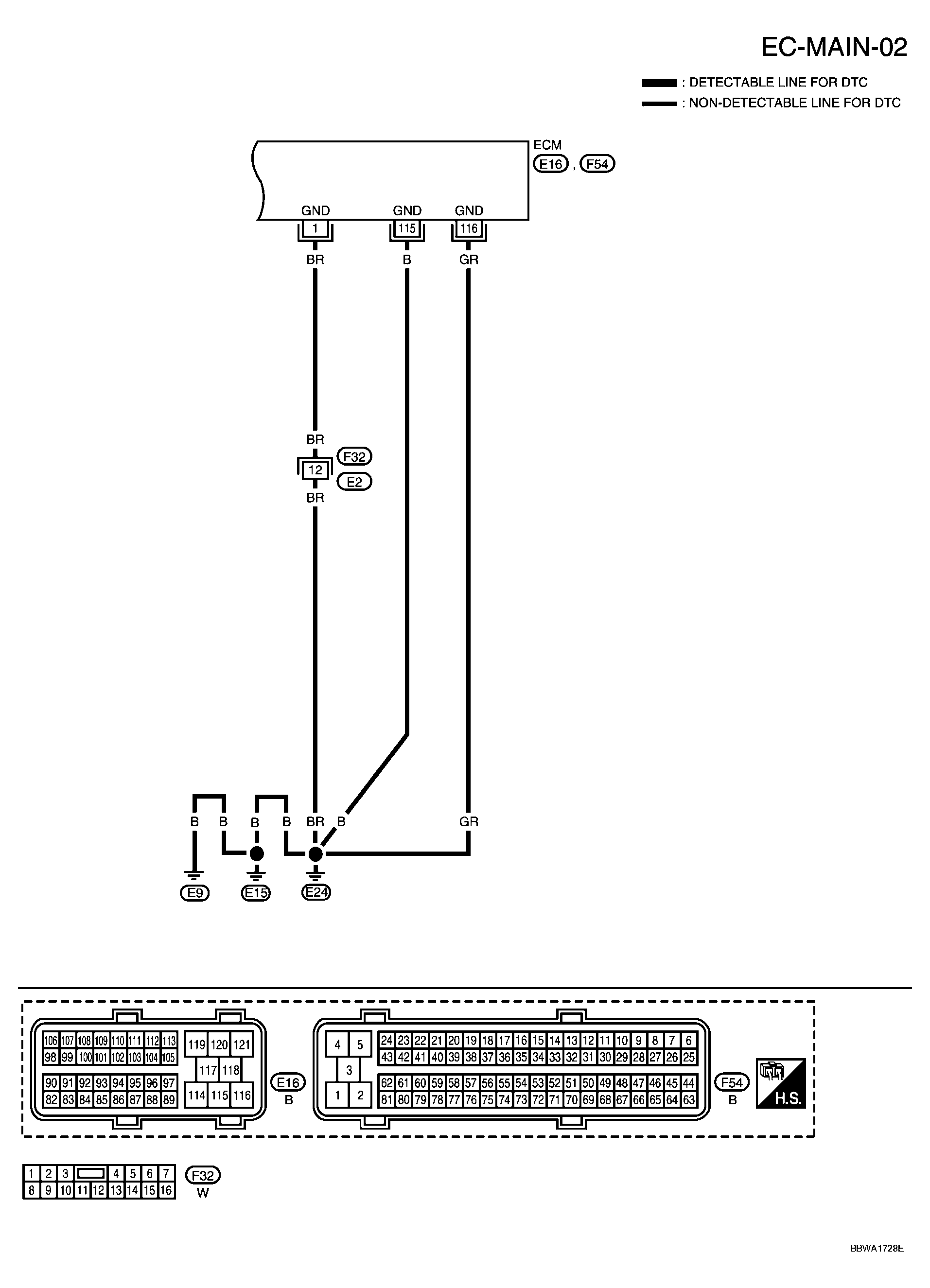

TERMINALS VOLTAGE SPECIFICATIONS
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 1 | BR | ECM ground | [Engine is running]
|
Body ground |
| 115 | B | ECM ground | [Engine is running]
|
Body ground |
| 116 | GR |
