Method B

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove No. 1 ignition coil.

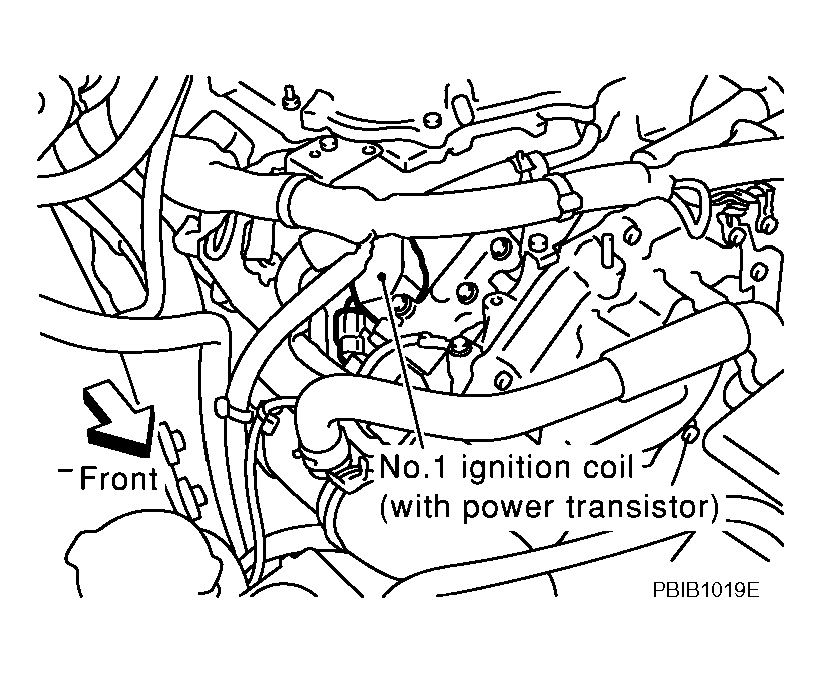

    Fig 1: Identifying No. 1 Ignition Coil
    G04119555Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

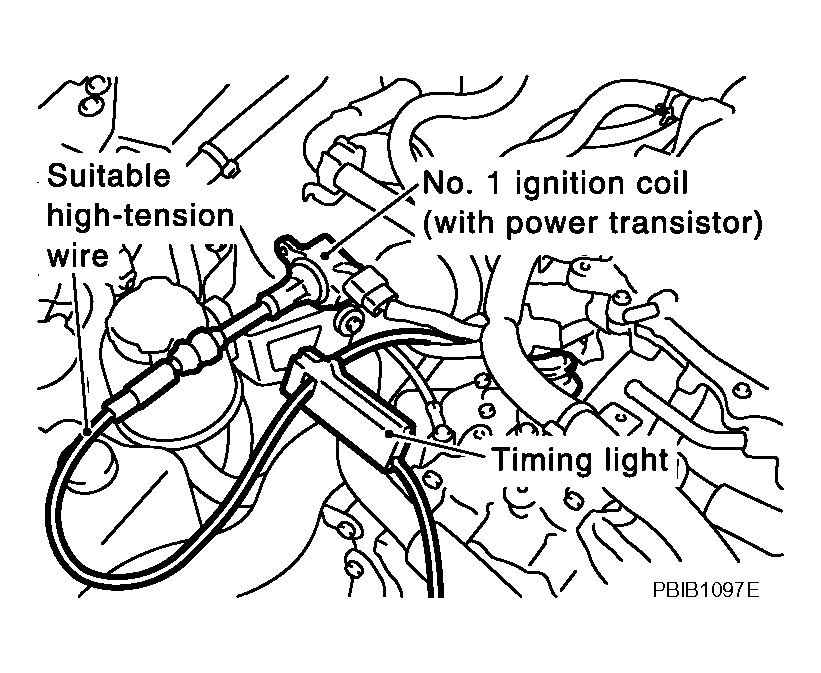

    Fig 2: Identifying No. 1 Ignition Coil And No. 1 Spark Plug With Suitable High-Tension Wire
    G04119556Courtesy of NISSAN MOTOR CO., U.S.A.

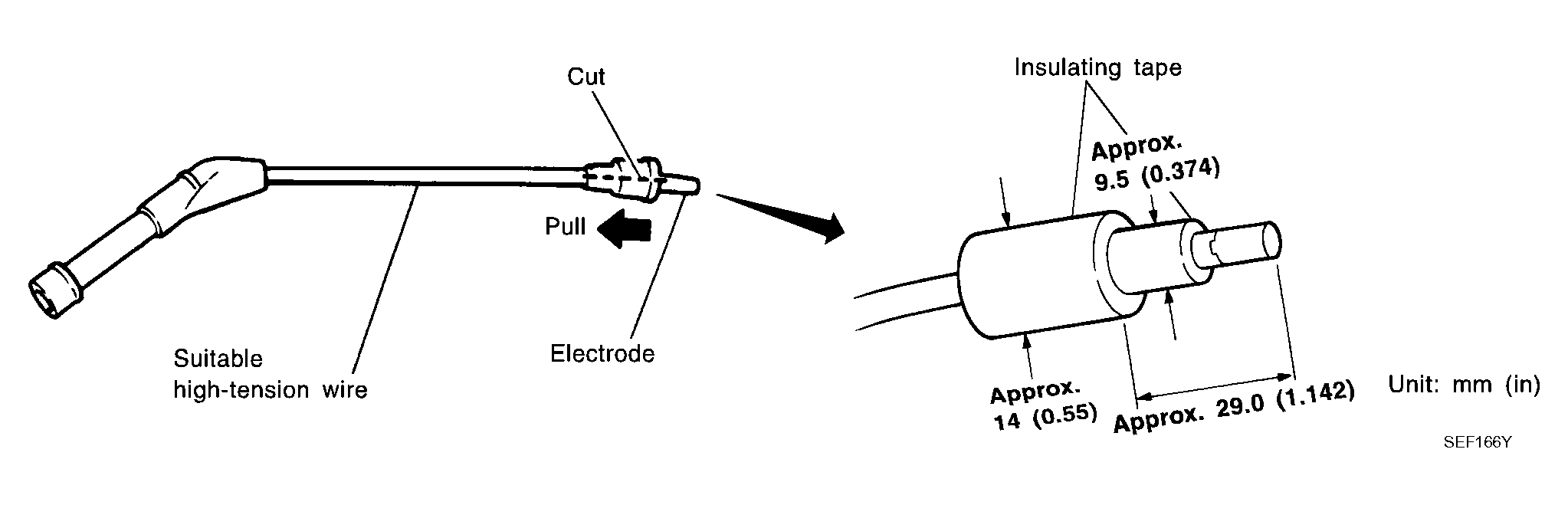

    Fig 3: Identifying Suitable High-Tension Wire Electrode Dimensions
    G04119557Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

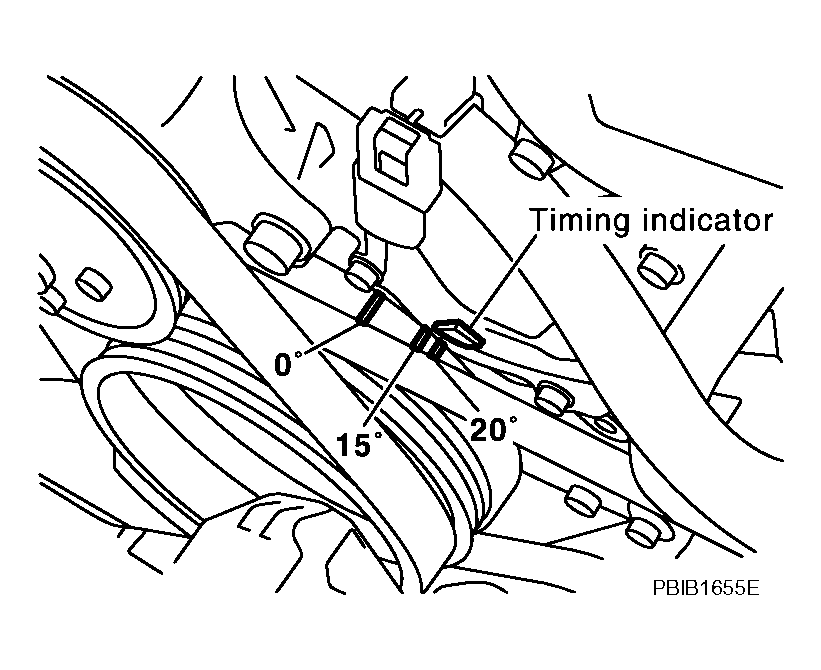

    Fig 4: Identifying Ignition Timing
    G04119558Courtesy of NISSAN MOTOR CO., U.S.A.
