Stop Lamp Switch

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect stop lamp switch harness connector.

Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

CONTINUITY REFERENCE

CONDITION	Continuity
Brake pedal: Fully released	Should not exist
Brake pedal: Slightly depressed	Should exist

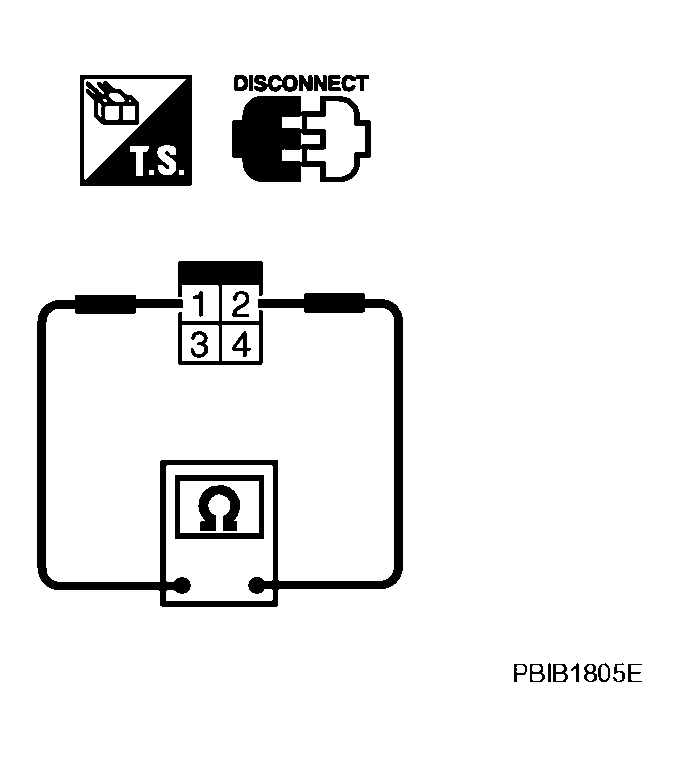

Fig 1: Identifying Continuity Between Stop Lamp Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step 3 again.
