Snow Mode Switch

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check snow mode switch continuity between terminals 1 and 4 under the following condition.
    CONTINUITY REFERENCE

    CONDITION CONTINUITY
    Snow mode switch: ON Should exist
    Snow mode switch: OFF Should not exist
  2. If NG, replace snow mode switch.

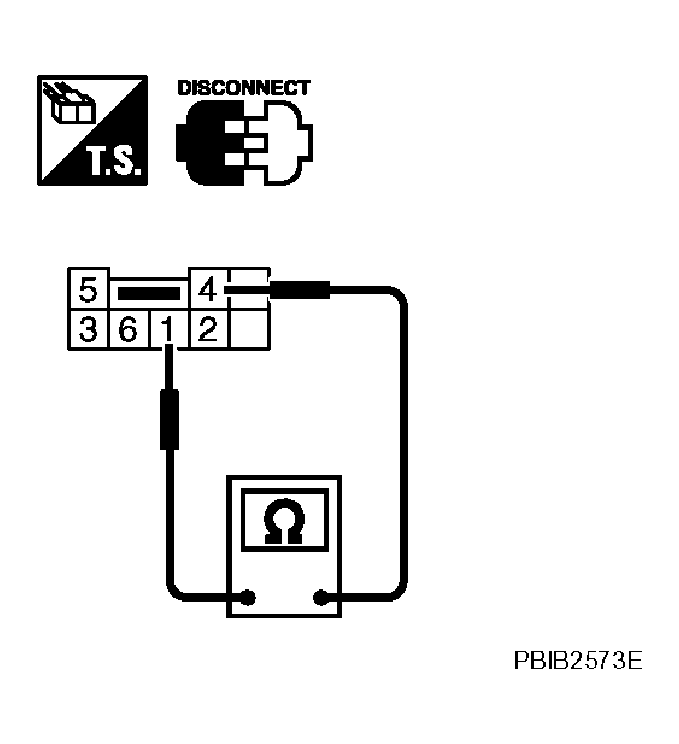

    Fig 1: Identifying Snow Mode Switch Continuity Between Terminals 1 And 4
    G04120346Courtesy of NISSAN MOTOR CO., U.S.A.
