Fuel Injector: Wiring Diagram

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS PATHFINDER-->.

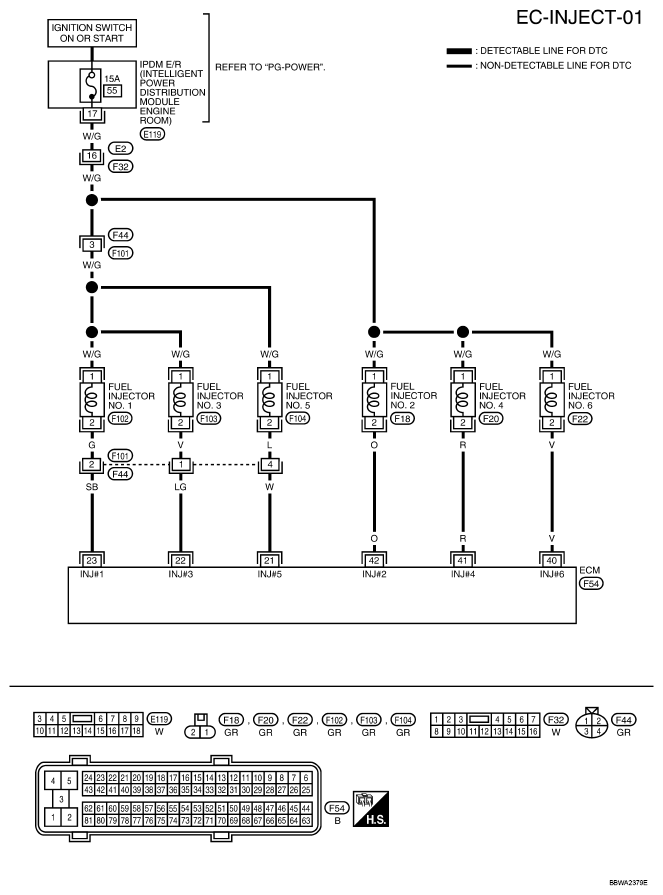

Fig 1: Identifying Wiring Diagram - EC-INJECT-01

Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

SPECIFICATION DATA AND REFERENCE VALUES CHART

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

21
22
23
40
41
42

W
LG
SB
V
R
O

Fuel injector No. 5
Fuel injector No. 3
Fuel injector No. 1
Fuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2

[Engine is running]

Warm-up condition
Idle speed
NOTE: The pulse cycle changes depending on rpm at idle

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

Warm-up condition
Engine speed: 2, 000 rpm

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN NORTH AMERICA, INC.

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
