Section 238 (Wheel Alignment Specifications & Procedures): Specifications: 2003

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

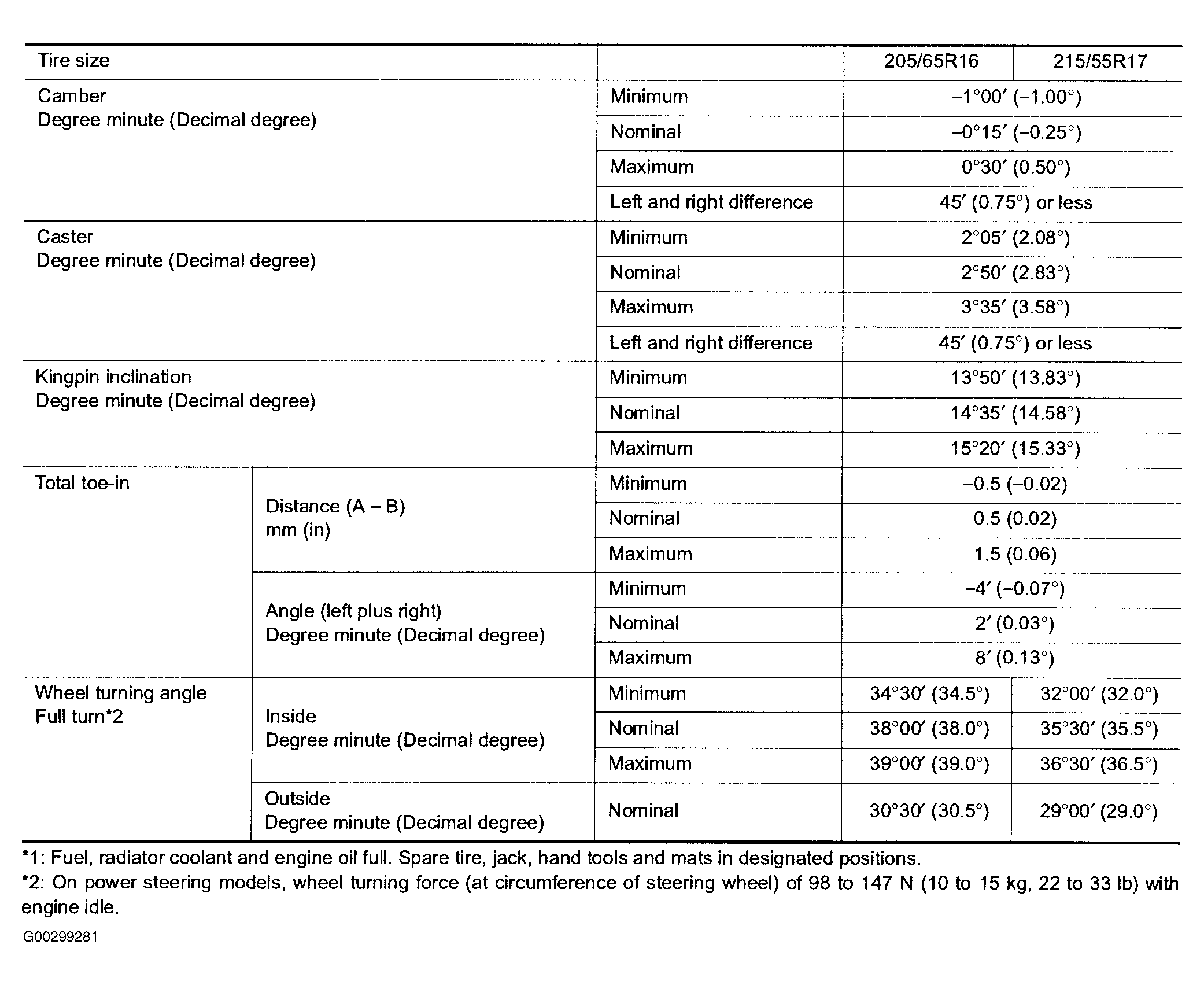

Fig 1: Front Wheel Alignment Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

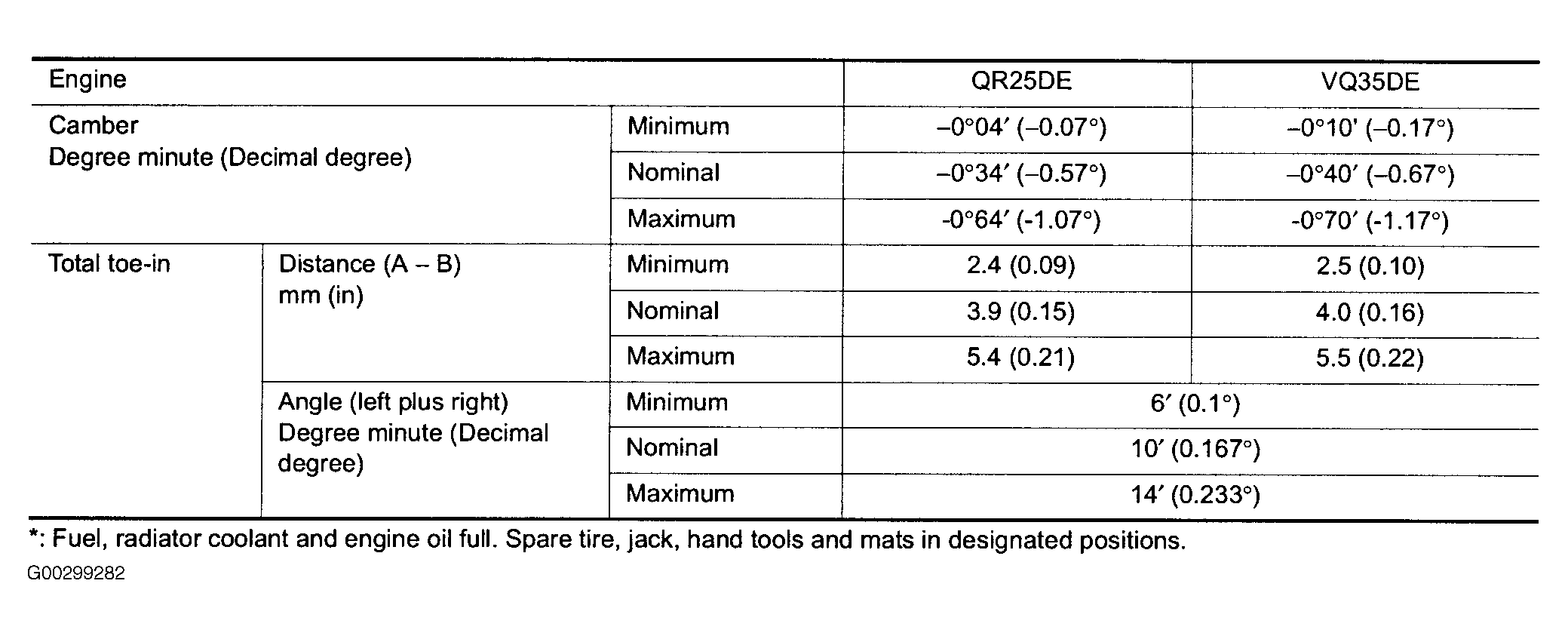

Fig 2: Rear Wheel Alignment Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
