Work Flow

WARNING: This page is about a different car, the 2004 Nissan Murano and 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For diagnostic procedure 1, see DIAGNOSTIC PROCEDURE 1, CHECK "L" TERMINAL CIRCUIT . For diagnostic procedure 2, see DIAGNOSTIC PROCEDURE 2, CHECK "B" TERMINAL CIRCUIT . For diagnostic procedure 3, see DIAGNOSTIC PROCEDURE 3, CHECK "L" TERMINAL CIRCUIT . For diagnostic procedure 4, see DIAGNOSTIC PROCEDURE 4, CHECK "B" TERMINAL CIRCUIT . For diagnostic procedure 5, see DIAGNOSTIC PROCEDURE 5, CHECK "S" TERMINAL CIRCUIT .

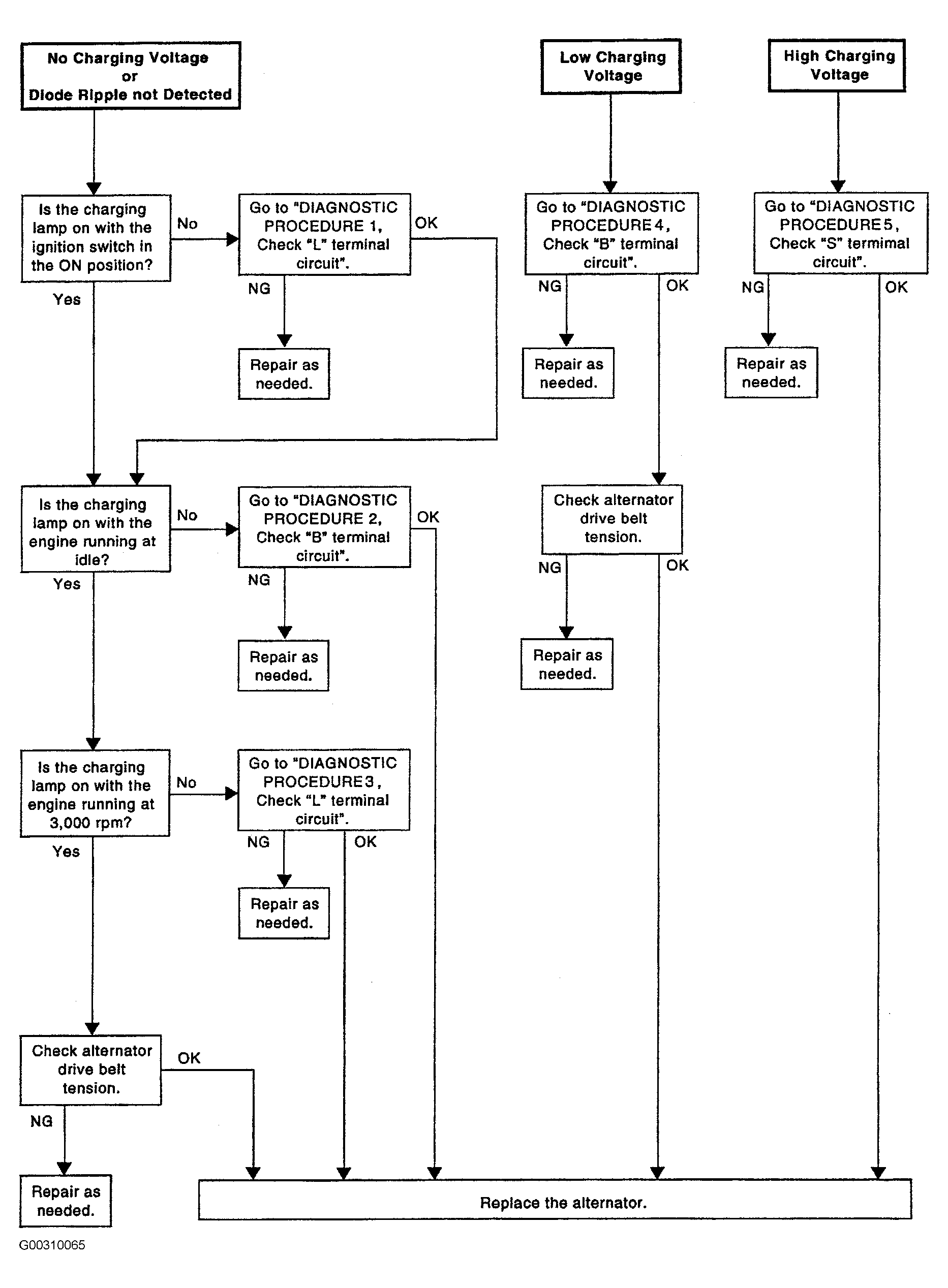

Fig 1: Identifying Work Flow

Courtesy of NISSAN MOTOR CO., U.S.A.
