Section 318 (Starters): Overhaul

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: See Fig 1 or Fig 2 for overhaul reference.

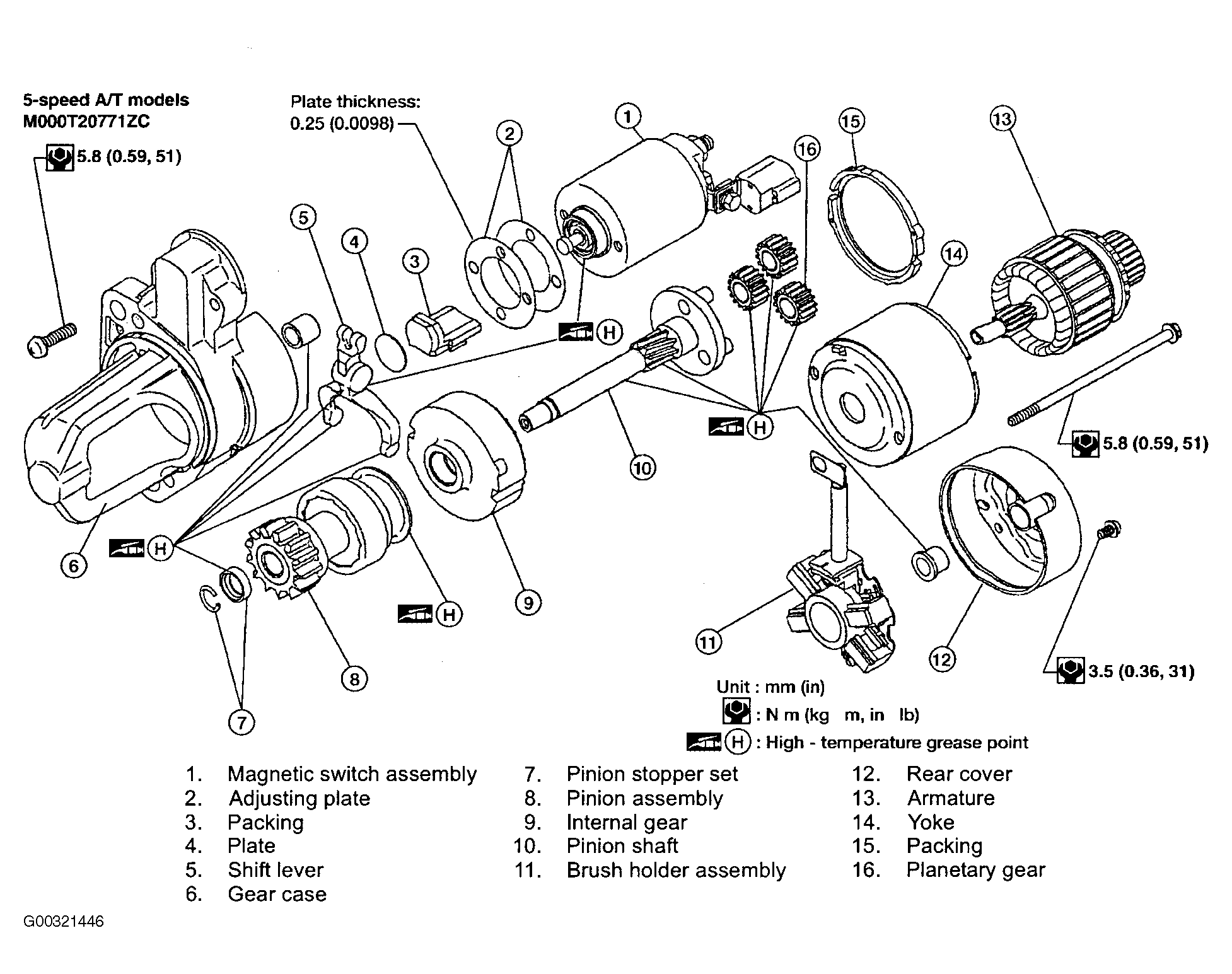

Fig 1: Exploded View Of Starter Motor (5-Speed A/T Model) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

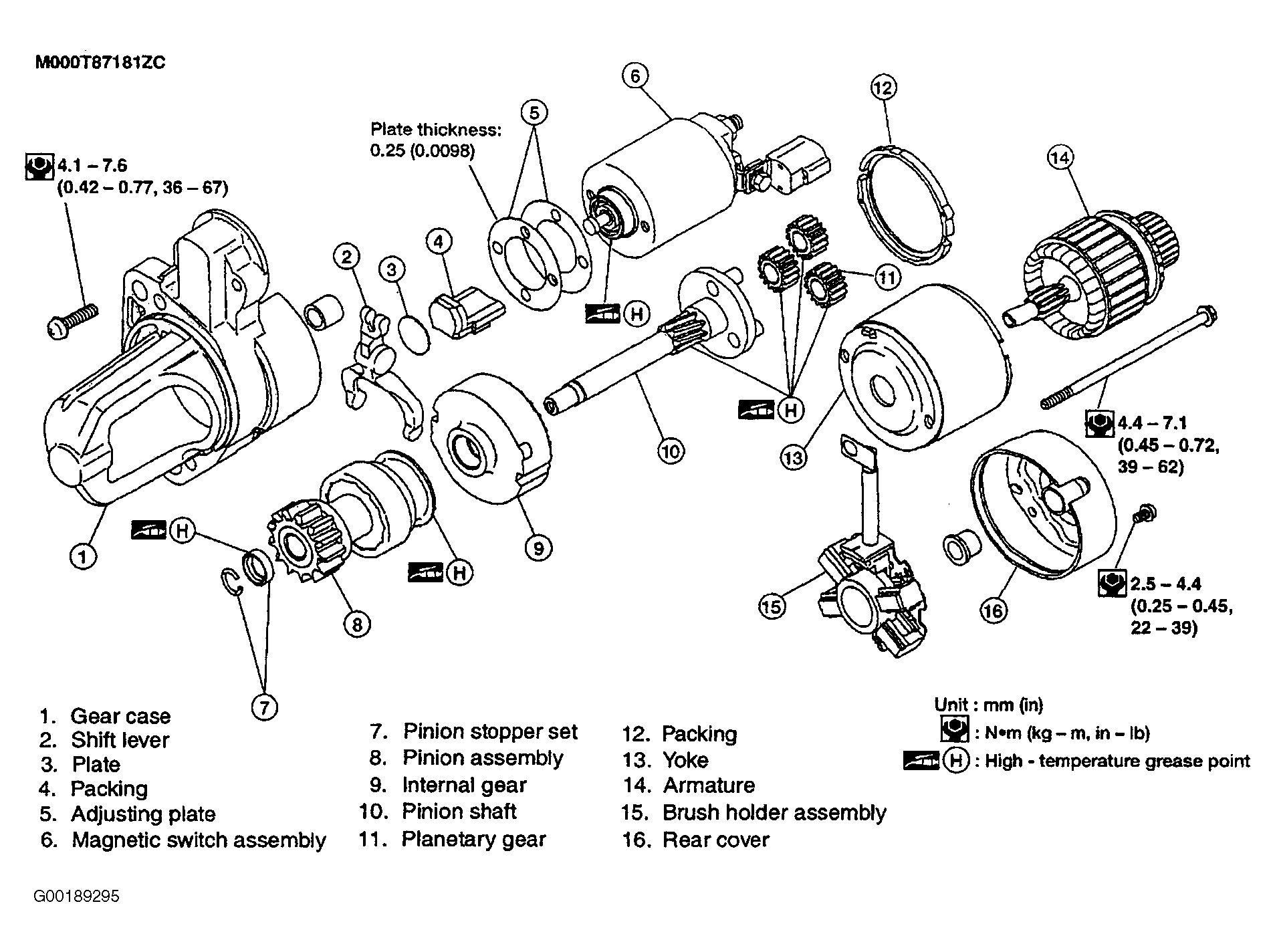

Fig 2: Exploded View Of Starter Motor (M/T & 4-Speed A/T Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
