Section 337 (Starters): Overhaul

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: See Fig 1 for overhaul reference.

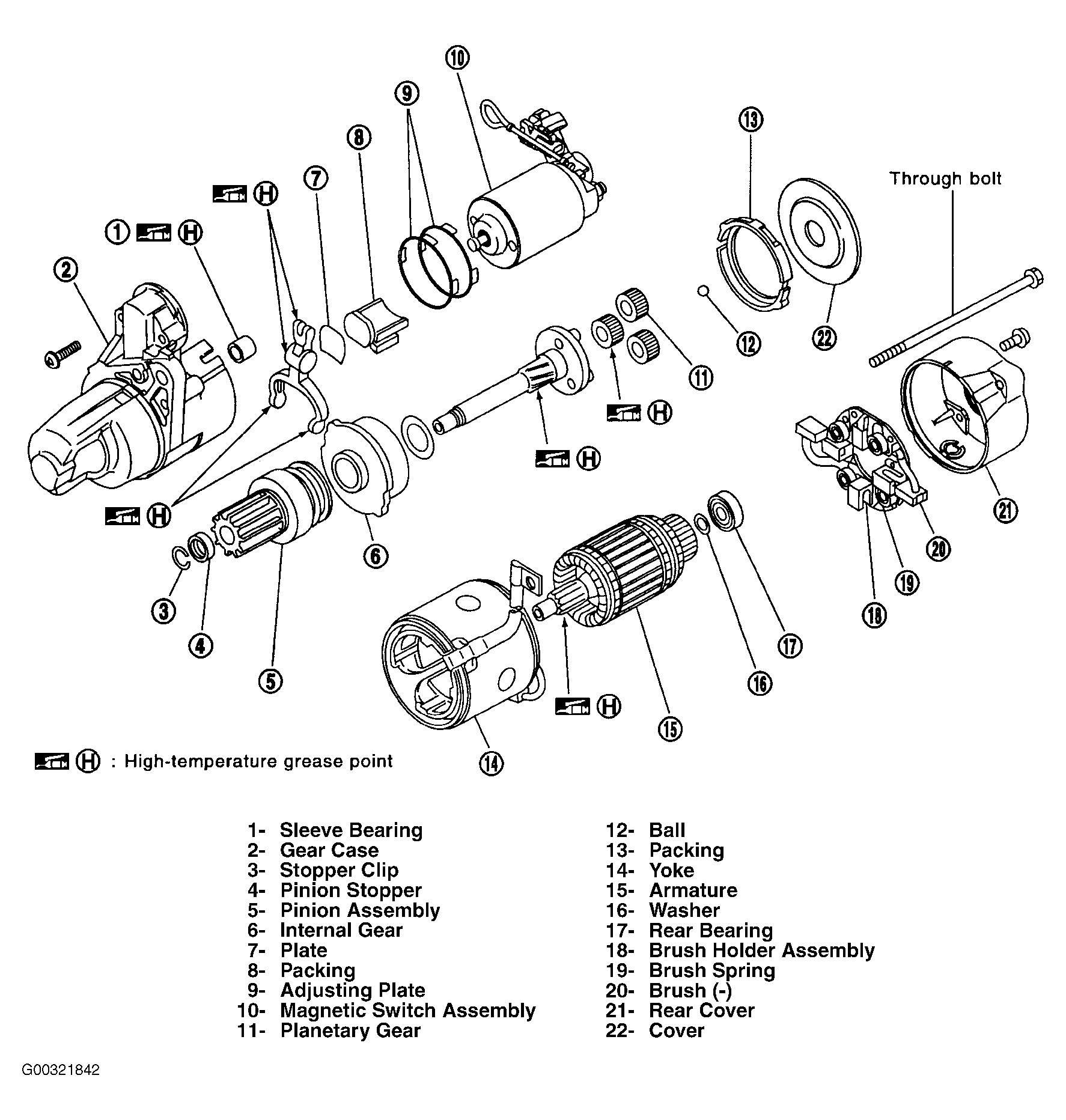

Fig 1: Exploded View of Starter

Courtesy of NISSAN MOTOR CO., U.S.A.
