Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to data link connector, which is located under LH dash panel near the center console.
Turn ignition switch ON.

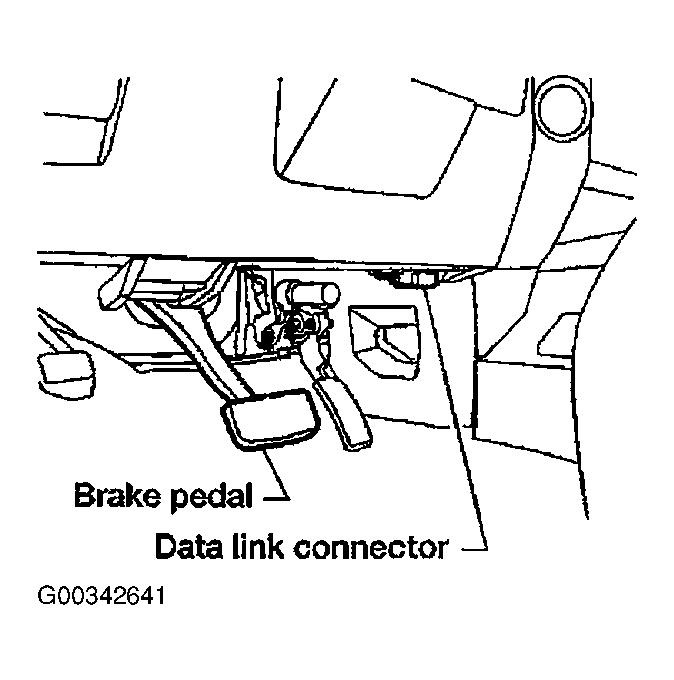

Fig 1: Locating "CONSULT-II" And "CONSULT-II CONVERTER" Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

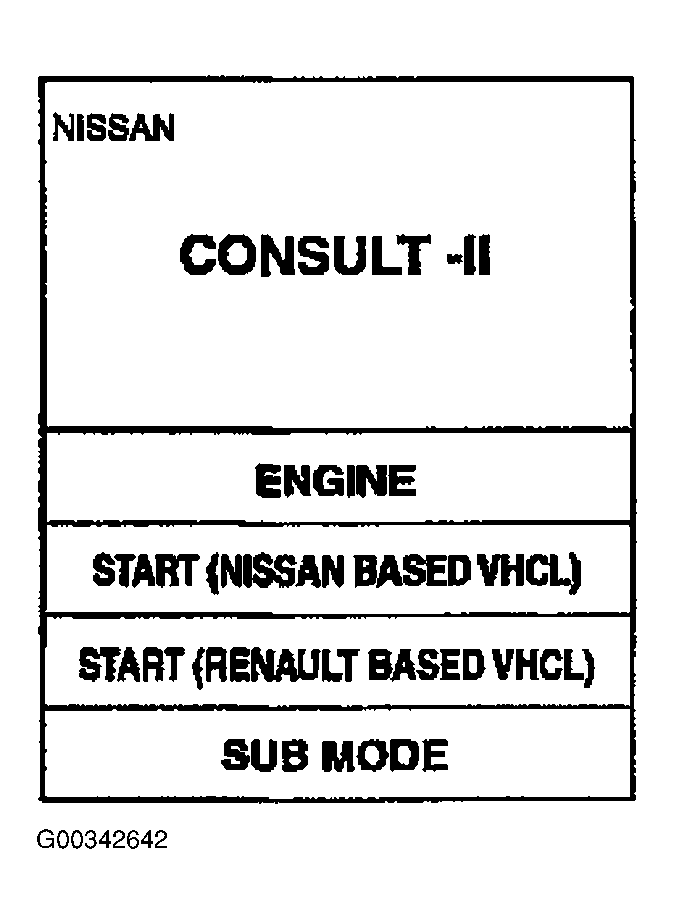

Fig 2: Touch "START (NISSAN BASED VHCL)"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ENGINE". If "ENGINE" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (PLC) CIRCUIT in GENERAL INFORMATION article in GENERAL INFORMATION.

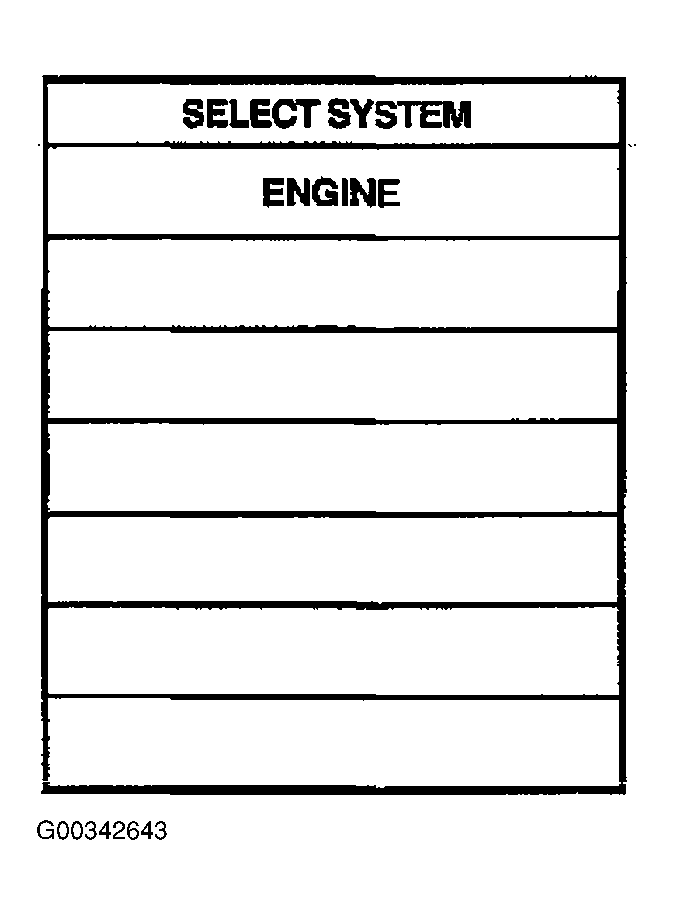

Fig 3: Touch "ENGINE"
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.

For further information, see the CONSULT-II Operation Manual.

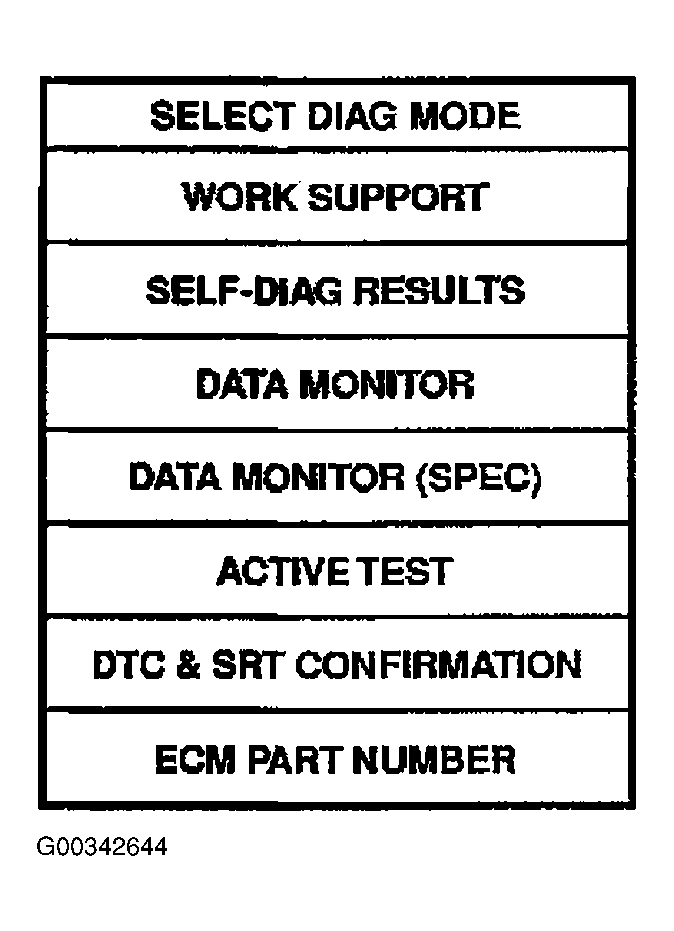

Fig 4: Perform Each Diagnostic Test Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
