Engine Coolant Temperature Sensor

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.

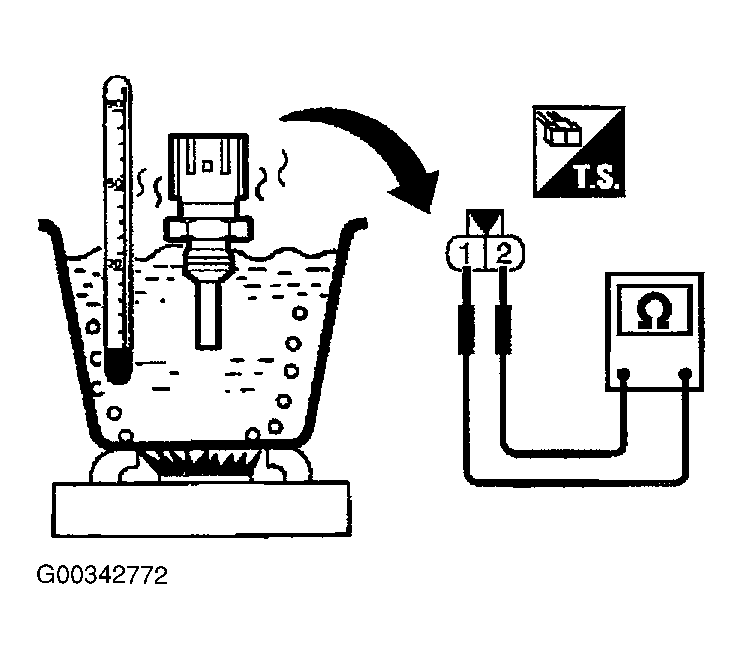

Fig 1: Checking Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.

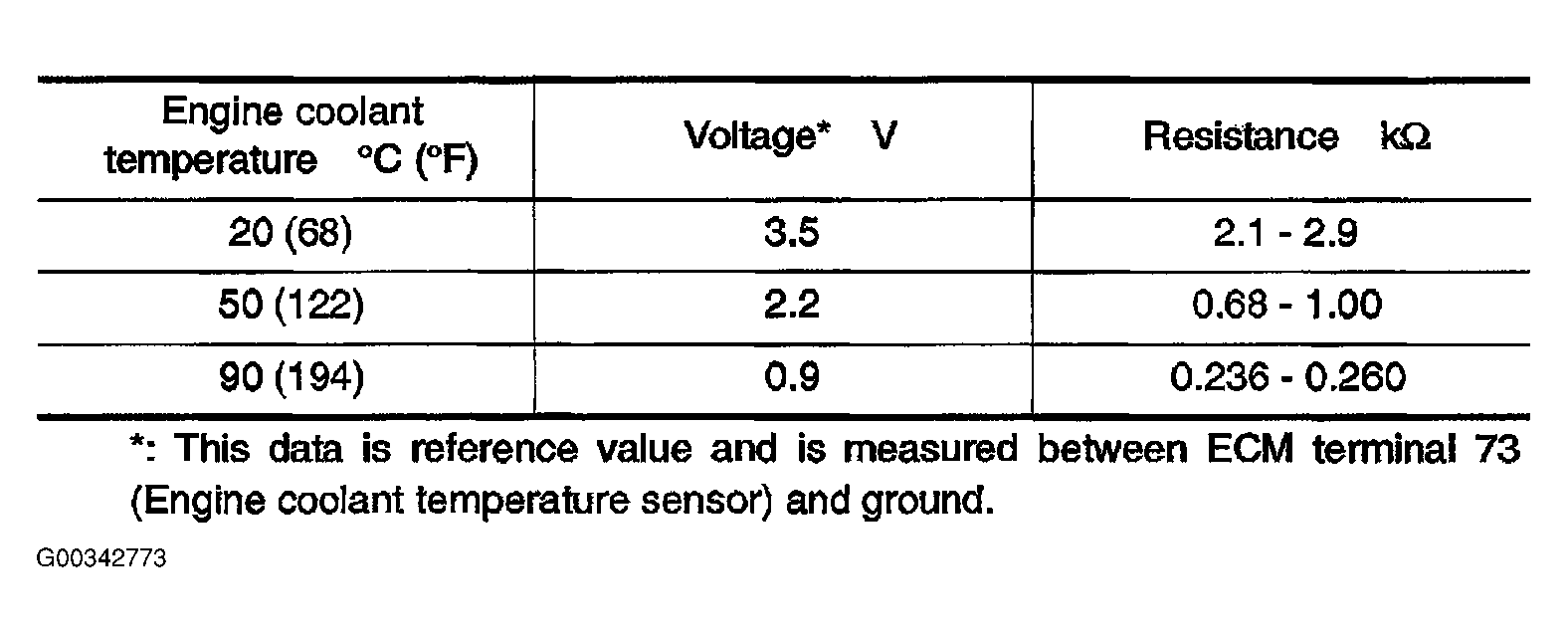

Fig 2: Reference Data
Courtesy of NISSAN MOTOR CO., U.S.A.

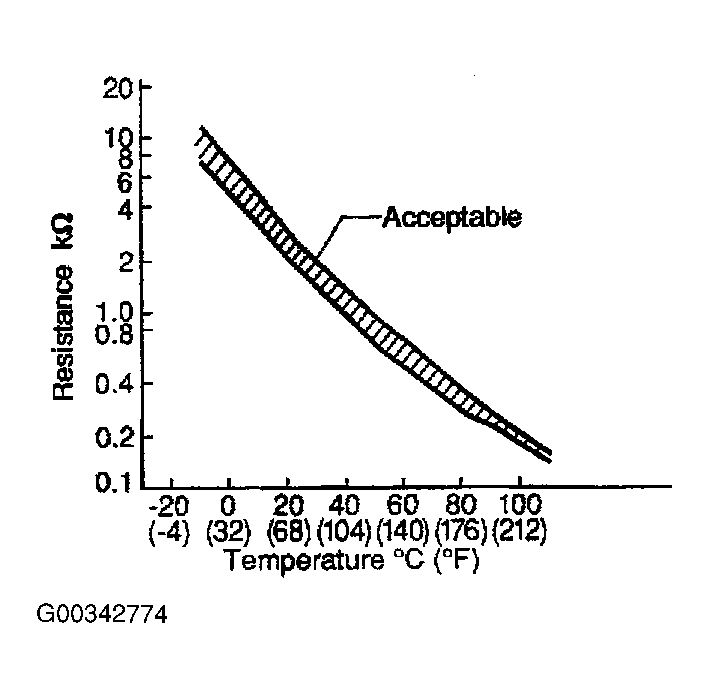

Fig 3: Reference Data Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace engine coolant temperature sensor.
