Fuel Tank Temperature Sensor

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fuel level sensor unit.
  2. Check resistance between "fuel level sensor unit and fuel pump" terminals 4 and 5 by heating with hot water or heat gun as shown in the figure.

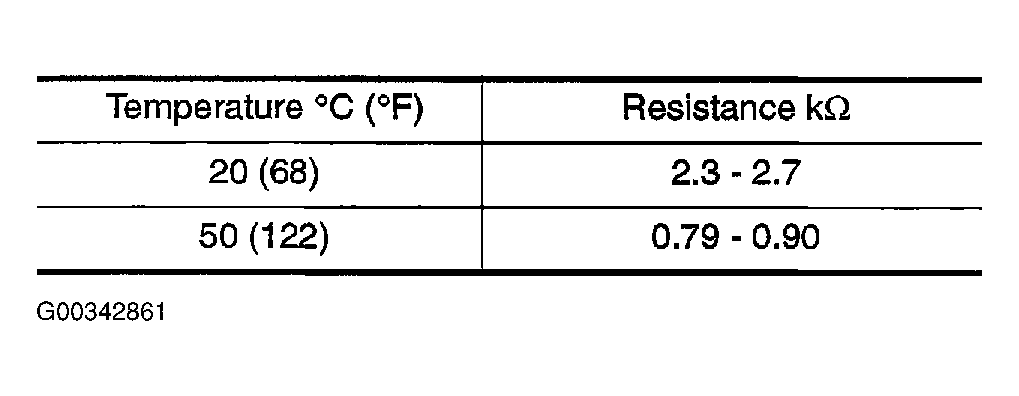

    Fig 1: Temperature/Resistance Chart
    G00342861Courtesy of NISSAN MOTOR CO., U.S.A.

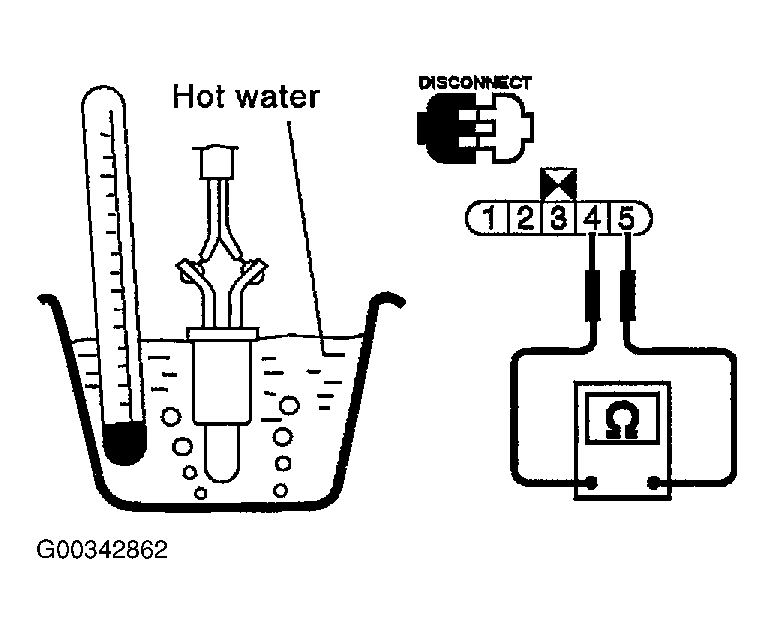

    Fig 2: Checking Resistance
    G00342862Courtesy of NISSAN MOTOR CO., U.S.A.
