Throttle Control Motor
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

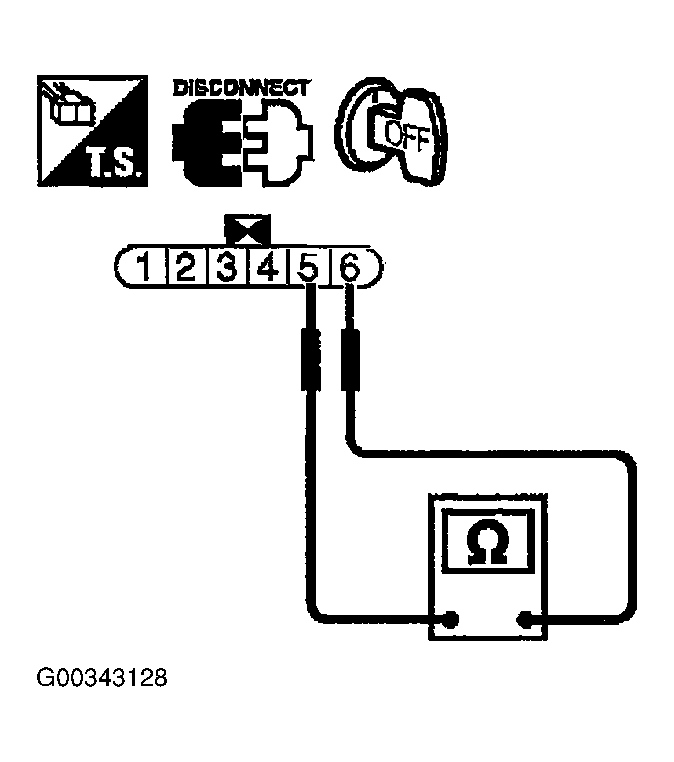

- Disconnect electric throttle control actuator harness connector.
- Check resistance between terminals 5 and 6.
- Resistance: Approximately 1 -15 ohms [at 25 °C (77°F)]
- If NG, replace electric throttle control actuator and go to next step.
- Perform THROTTLE VALVE CLOSED POSITION LEARNING in BASIC DIAGNOSTIC PROCEDURES - TITAN article.
- Perform IDLE AIR VOLUME LEARNING in BASIC DIAGNOSTIC PROCEDURES - TITAN article.
