Testing Condition

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Before performing the following procedure, confirm that battery voltage is more than 11V when engine is running.

WITH CONSULT-II

Turn ignition switch ON and wait at least 2 seconds.
Select "DATA MONITOR" mode with CONSULT-II.
Start engine and let it idle for 5 seconds.
If DTC is detected, go to DIAGNOSTIC PROCEDURE .

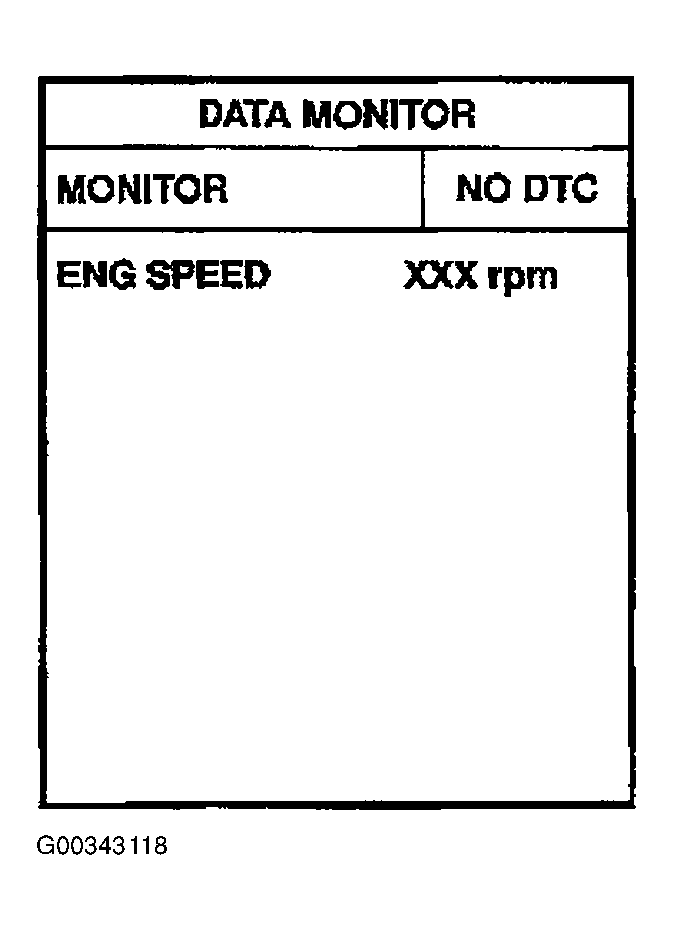

Fig 1: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.

WITH GST

Follow the procedure "WITH CONSULT-II" above.
